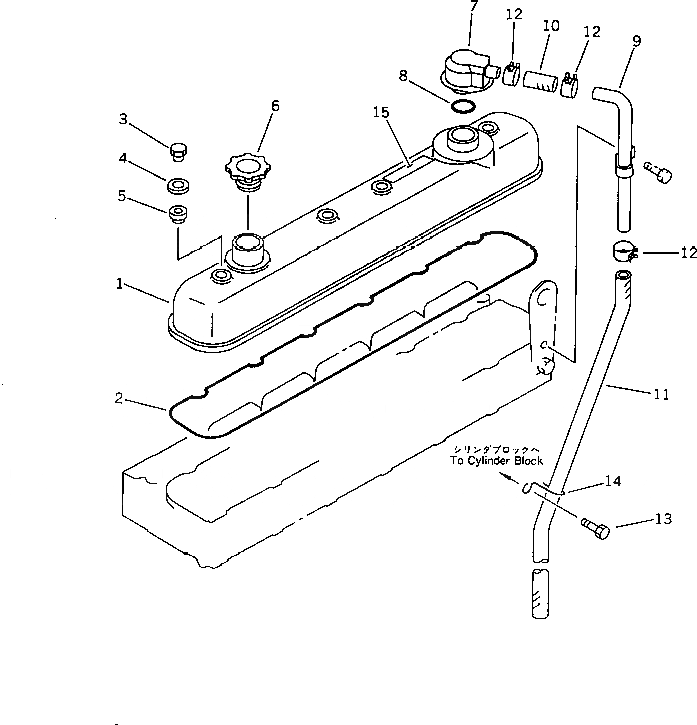

Запчасти Komatsu SA6D108-1A ГОЛОВКА ЦИЛИНДРОВ COVER ГОЛОВКА ЦИЛИНДРОВ

1

6136-11-8112

COVER,HEAD

SN: 10001-UP

1шт.

2

6136-11-8814

O-RING (K1)

SN: 10001-UP

1шт.

3

6136-11-8120

NUT

SN: 10001-UP

4шт.

4

6136-11-8130

WASHER

SN: 10001-UP

4шт.

5

6136-11-8142

PACKING (K1)

SN: 10001-UP

4шт.

6

6130-12-8610

CAP

SN: 10001-UP

1шт.

7

6150-21-6750

BREATHER

SN: 10001-UP

1шт.

8

6114-21-5190

O-RING (K1)

SN: 10001-UP

1шт.

9

6221-21-5820

PIPE,BREATHER

SN: 10001-UP

1шт.

10

07286-01906

HOSE

SN: 10001-UP

1шт.

11

07286-01995

HOSE

SN: 10001-UP

1шт.

12

07285-00220

CLIP

SN: 10001-UP

3шт.

13

01435-01016

BOLT

SN: 10001-UP

1шт.

14

6221-21-5880

CLIP

SN: 10001-UP

1шт.

15

6204-81-2210

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2240

PLATE¤ NAME,(SPANISH) (LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2260

PLATE¤ NAME,(GERMAN) (LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2270

PLATE¤ NAME,(INDONESIAN) (LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2280

PLATE¤ NAME,(RUSSIAN) (LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2290

PLATE¤ NAME,(FRENCH) (LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2310

PLATE¤ NAME,(ITALIAN) (LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2340

PLATE¤ NAME,(CHINESE) (LIMITED SUPPLY)

SN: 10001-UP

1шт.

|15

6204-81-2370

PLATE¤ NAME,(ARABIC) (LIMITED SUPPLY)

SN: 10001-UP

1шт.
