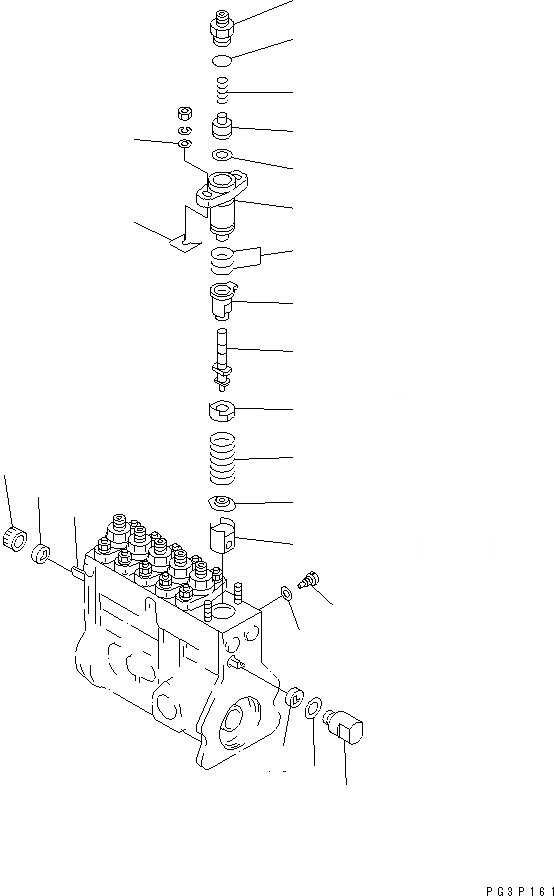

Запчасти Komatsu SA6D108-1A-7 ТОПЛ. НАСОС (НАСОС) (/) (ВНУТР. ЧАСТИ) ДВИГАТЕЛЬ

|1

6222-71-1120

INJECTION PUMP A.

SN: 10001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B2A4 TO A4010-F2A4.

-1шт.

|1

ND090100-8380

BODY ASS'Y

SN: 10001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B2A4 AND A4010-C2A4.

-1шт.

1

ND090130-0310

HOLDER,DELIVERY VALVE

SN: 10001-UP

6шт.

2

ND090136-0730

SPRING,DELIVERY VALVE

SN: 10001-UP

6шт.

3

ND949140-2570

O-RING

SN: 10001-UP

6шт.

4

ND090140-2020

VALVE,DELIVERY

SN: 10001-UP

6шт.

5

ND090150-4660

ELEMENT,PUMP

SN: 10001-UP

6шт.

6

ND090160-0150

SLEEVE,CONTROL

SN: 10001-UP

6шт.

7

ND090212-0471

RACK,CONTROL

SN: 10001-UP

1шт.

8

ND090163-0160

SEAT,UPPER SPRING

SN: 10001-UP

6шт.

9

ND090164-0250

SPRING,PLUNGER

SN: 10001-UP

6шт.

10

ND090165-0150

SEAT,LOWER SPRING

SN: 10001-UP

6шт.

11

ND090170-0320

TAPPET ASS'Y

SN: 10001-UP

6шт.

12

ND090438-0390

SHIM¤ 1.75MM

SN: 10001-UP

-2шт.

|12

ND090438-0400

SHIM¤ 1.8MM

SN: 10001-UP

-2шт.

|12

ND090438-0410

SHIM¤ 1.85MM

SN: 10001-UP

-2шт.

|12

ND090438-0420

SHIM¤ 1.9MM

SN: 10001-UP

-2шт.

|12

ND090438-0430

SHIM¤ 1.95MM

SN: 10001-UP

-2шт.

|12

ND090438-0440

SHIM¤ 2.0MM

SN: 10001-UP

-2шт.

|12

ND090438-0450

SHIM¤ 2.05MM

SN: 10001-UP

-2шт.

|12

ND090438-0460

SHIM¤ 2.1MM

SN: 10001-UP

-2шт.

|12

ND090438-0470

SHIM¤ 2.15MM

SN: 10001-UP

-2шт.

|12

ND090438-0480

SHIM¤ 2.2MM

SN: 10001-UP

-2шт.

|12

ND090438-0490

SHIM¤ 2.25MM

SN: 10001-UP

-2шт.

|12

ND090438-0500

SHIM¤ 2.3MM

SN: 10001-UP

-2шт.

|12

ND090438-0510

SHIM¤ 2.35MM

SN: 10001-UP

-2шт.

|12

ND090438-0520

SHIM¤ 2.4MM

SN: 10001-UP

-2шт.

13

ND949013-5880

WASHER,PLATE

SN: 10001-UP

12шт.

14

ND090139-0020

O-RING

SN: 10001-UP

18шт.

15

ND949018-1730

WASHER

SN: 10001-UP

6шт.

16

ND090248-0010

WASHER

SN: 10001-UP

1шт.

17

ND090244-0160

SCREW

SN: 10001-UP

1шт.

18

ND090114-0110

BUSHING

SN: 10001-UP

2шт.

19

ND090367-0040

BUSHING

SN: 10001-UP

1шт.

20

ND090018-0330

COVER

SN: 10001-UP

1шт.

21

ND949018-1550

WASHER

SN: 10001-UP

1шт.
