Артикул
Название
Примечание
Количество
|1

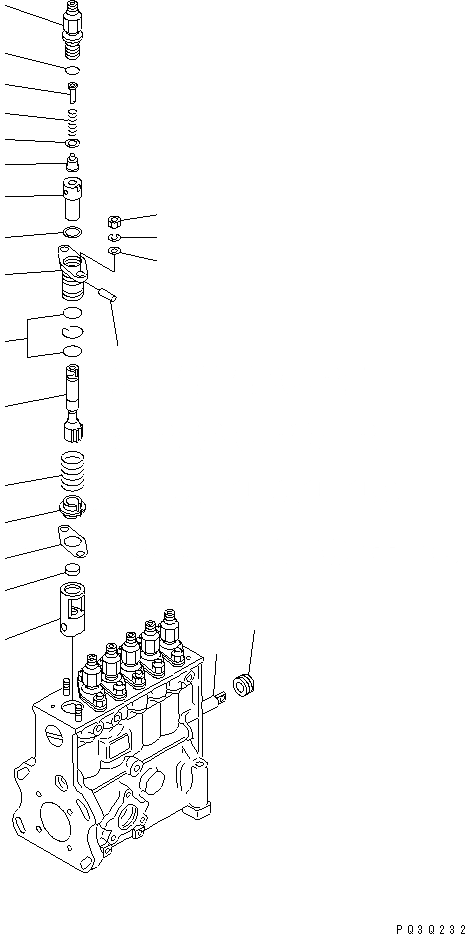

6162-73-1583
INJECTION PUMP ASS'Y
SN: 15667-UP
1шт.
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B6A6 TO A4010-F6A6.
-1шт.
|$$3
THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
-1шт.
|1
DK106069-8061
PUMP ASS'Y
SN: 15667-UP
1шт.
|$$5
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B6A6 AND A4010-C6A6.
-1шт.
1
DK134143-7920
PLUNGER ASS'Y
SN: 15667-UP
6шт.
4
DK134563-0600
PIN
SN: 15667-UP
1шт.
5
DK134110-6220
VALVE,DELIVERY
SN: 15667-UP
1шт.
6
DK134116-3020
HOLDER
SN: 15667-UP
1шт.
9
DK134112-2000
SPRING
SN: 15667-UP
1шт.
14
DK014111-2440
WASHER,SPRING
SN: 15667-UP
12шт.
15
DK013021-2140
NUT
SN: 15667-UP
12шт.
16
DK134256-2000
RACK,CONTROL
SN: 15667-UP
1шт.
18
DK134215-0100
SPRING,PLUNGER
SN: 15667-UP
6шт.
20
DK134200-0520
TAPPET
SN: 15667-UP
6шт.
|1
6162-73-1583
INJECTION PUMP ASS'Y
SN: 15667-UP
1шт.
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B6A6 TO A4010-F6A6.
-1шт.
|$$3
THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
-1шт.
|1
DK106069-8061
PUMP ASS'Y
SN: 15667-UP
1шт.
|$$5
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B6A6 AND A4010-C6A6.
-1шт.
1
DK134143-7920
PLUNGER ASS'Y
SN: 15667-UP
6шт.
4
DK134563-0600
PIN
SN: 15667-UP
1шт.
5
DK134110-6220
VALVE,DELIVERY
SN: 15667-UP
1шт.
6
DK134116-3020
HOLDER
SN: 15667-UP
1шт.
9
DK134112-2000
SPRING
SN: 15667-UP
1шт.
14
DK014111-2440
WASHER,SPRING
SN: 15667-UP
12шт.
15
DK013021-2140
NUT
SN: 15667-UP
12шт.
16
DK134256-2000
RACK,CONTROL
SN: 15667-UP
1шт.
18
DK134215-0100
SPRING,PLUNGER
SN: 15667-UP
6шт.
20
DK134200-0520
TAPPET
SN: 15667-UP
6шт.
Выбрано товаров: 66
