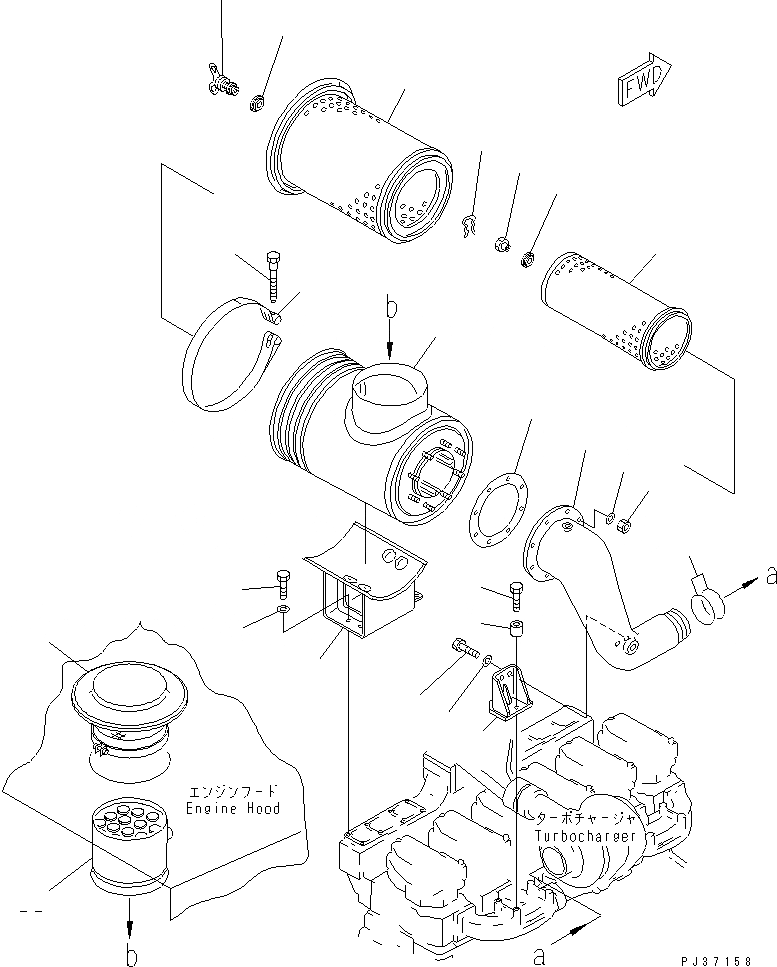

Запчасти Komatsu S6D140-1R ВОЗДУХООЧИСТИТЕЛЬ И КРЕПЛЕНИЕ (С INTAKE EXTENSION) ГОЛОВКА ЦИЛИНДРОВ

1

6127-82-7115

BODY,AIR CLEANER

SN: 10001-UP

1шт.

|$1

6128-81-7042

ELEMENT ASS'Y

SN: 10001-UP

1шт.

2

0

ELEMENT,INNER

SN: 10001-UP

1шт.

3

600-181-4370

NUT

SN: 10001-UP

1шт.

4

600-181-7511

WASHER,SEAL

SN: 10001-UP

1шт.

|$5

600-181-4400

ELEMENT ASS'Y,OUTER

SN: 10001-UP

1шт.

5

0

ELEMENT,OUTER

SN: 10001-UP

1шт.

6

600-181-4420

NUT,WING

SN: 10001-UP

1шт.

7

600-181-4440

GASKET

SN: 10001-UP

1шт.

8

600-181-4430

CLIP

SN: 10001-UP

1шт.

9

6127-81-4821

GASKET (K1)

SN: 10001-UP

1шт.

10

01580-11008

NUT

SN: 10001-UP

8шт.

11

01640-21016

WASHER

SN: 10001-UP

8шт.

12

6211-11-4340

CONNECTOR,AIR

SN: 10001-UP

1шт.

13

02895-67081

O-RING (K1)

SN: 10001-UP

2шт.

14

6211-11-4730

BRACKET

SN: 10001-UP

1шт.

15

6211-11-4710

BRACKET

SN: 10001-UP

1шт.

16

01010-51025

BOLT

SN: 10001-UP

8шт.

17

01642-21016

WASHER

SN: 10001-UP

8шт.

18

01010-31040

BOLT

SN: 10001-UP

2шт.

19

6631-11-5630

SPACER

SN: 10001-UP

2шт.

20

6127-11-4360

BAND ASS'Y

SN: 10001-UP

1шт.

20

6691-21-6550

PIN

SN: 10001-UP

1шт.

20

6691-21-6560

PIN, WITH THREAD

SN: 10001-UP

1шт.

21

6643-11-4641

BOLT

SN: 10001-UP

1шт.

22

600-181-5710

PRE-CLEANER ASS'Y

SN: 10001-UP

1шт.

23

600-181-4740

HOOD

SN: 10001-UP

1шт.

24

09637-00161

PLATE, INSTRUCTION,(JAPANESE-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-02161

PLATE, INSTRUCTION,(ARABIC-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-04161

PLATE, INSTRUCTION,(PERSIAN-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-05161

PLATE, INSTRUCTION,(INDONESIAN-ENGLISH)(NOT SHOWN

SN: 10001-UP

1шт.

24

09637-30161

PLATE, INSTRUCTION,(ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-30262

PLATE, INSTRUCTION,(FRENCH-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-40261

PLATE, INSTRUCTION,(ITALIAN-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-50261

PLATE, INSTRUCTION,(PORTUGUESE-ENGLISH)(NOT SHOWN

SN: 10001-UP

1шт.

24

09637-70161

PLATE, INSTRUCTION,(SPANISH-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-81161

PLATE, INSTRUCTION,(GERMAN-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-90261

PLATE, INSTRUCTION,(CHINESE) (NOT SHOWN)

SN: 10001-UP

1шт.

1

6127-82-7115

BODY,AIR CLEANER

SN: 10001-UP

1шт.

|$1

6128-81-7042

ELEMENT ASS'Y

SN: 10001-UP

1шт.

2

0

ELEMENT,INNER

SN: 10001-UP

1шт.

3

600-181-4370

NUT

SN: 10001-UP

1шт.

4

600-181-7511

WASHER,SEAL

SN: 10001-UP

1шт.

|$5

600-181-4400

ELEMENT ASS'Y,OUTER

SN: 10001-UP

1шт.

5

0

ELEMENT,OUTER

SN: 10001-UP

1шт.

6

600-181-4420

NUT,WING

SN: 10001-UP

1шт.

7

600-181-4440

GASKET

SN: 10001-UP

1шт.

8

600-181-4430

CLIP

SN: 10001-UP

1шт.

9

6127-81-4821

GASKET (K1)

SN: 10001-UP

1шт.

10

01580-11008

NUT

SN: 10001-UP

8шт.

11

01640-21016

WASHER

SN: 10001-UP

8шт.

12

6211-11-4340

CONNECTOR,AIR

SN: 10001-UP

1шт.

13

02895-67081

O-RING (K1)

SN: 10001-UP

2шт.

14

6211-11-4730

BRACKET

SN: 10001-UP

1шт.

15

6211-11-4710

BRACKET

SN: 10001-UP

1шт.

16

01010-51025

BOLT

SN: 10001-UP

8шт.

17

01642-21016

WASHER

SN: 10001-UP

8шт.

18

01010-31040

BOLT

SN: 10001-UP

2шт.

19

6631-11-5630

SPACER

SN: 10001-UP

2шт.

20

6127-11-4360

BAND ASS'Y

SN: 10001-UP

1шт.

20

6691-21-6550

PIN

SN: 10001-UP

1шт.

20

6691-21-6560

PIN, WITH THREAD

SN: 10001-UP

1шт.

21

6643-11-4641

BOLT

SN: 10001-UP

1шт.

22

600-181-5710

PRE-CLEANER ASS'Y

SN: 10001-UP

1шт.

23

600-181-4740

HOOD

SN: 10001-UP

1шт.

24

09637-00161

PLATE, INSTRUCTION,(JAPANESE-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-02161

PLATE, INSTRUCTION,(ARABIC-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-04161

PLATE, INSTRUCTION,(PERSIAN-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-05161

PLATE, INSTRUCTION,(INDONESIAN-ENGLISH)(NOT SHOWN

SN: 10001-UP

1шт.

24

09637-30161

PLATE, INSTRUCTION,(ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-30262

PLATE, INSTRUCTION,(FRENCH-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-40261

PLATE, INSTRUCTION,(ITALIAN-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-50261

PLATE, INSTRUCTION,(PORTUGUESE-ENGLISH)(NOT SHOWN

SN: 10001-UP

1шт.

24

09637-70161

PLATE, INSTRUCTION,(SPANISH-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-81161

PLATE, INSTRUCTION,(GERMAN-ENGLISH) (NOT SHOWN)

SN: 10001-UP

1шт.

24

09637-90261

PLATE, INSTRUCTION,(CHINESE) (NOT SHOWN)

SN: 10001-UP

1шт.
