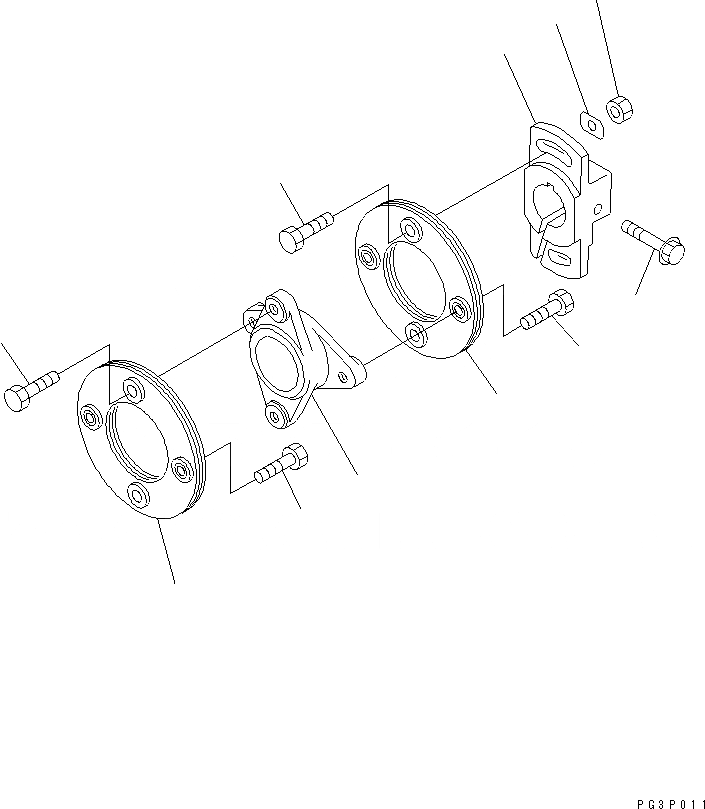

Запчасти Komatsu S6D105-B-1A-5 ТОПЛ. НАСОС (СОЕДИНЕНИЕ) ТОПЛИВН. СИСТЕМА

|1

6137-72-1321

INJECTION PUMP ASS'Y

SN: 61481-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451¤0461¤0462¤0471 AND FIGS.0481.

-1шт.

|1

6137-72-1340

INJECTION PUMP ASS'Y,(FOR SWEDEN)

SN: 61481-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451¤0463¤0464¤0471 AND 0481.

-1шт.

|$$5

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|1

DK105661-0371

COUPLING ASS'Y

SN: 61481-UP

1шт.

1

DK156630-0500

COUPLING

SN: 61481-UP

1шт.

2

DK156605-2320

PLATE

SN: 61481-UP

2шт.

3

DK156609-5900

COUPLING,CROSS

SN: 61481-UP

1шт.

4

DK156633-6200

BOLT

SN: 61481-UP

8шт.

5

DK156615-3300

WASHER,LOCK

SN: 61481-UP

2шт.

6

DK029200-8050

NUT

SN: 61481-UP

2шт.

7

DK156633-6000

BOLT

SN: 61481-UP

1шт.
