Запчасти Komatsu S6D105-1MM-B КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ¤ МАРКИРОВКА И ДВИГАТЕЛЬ КОМПЛЕКТ

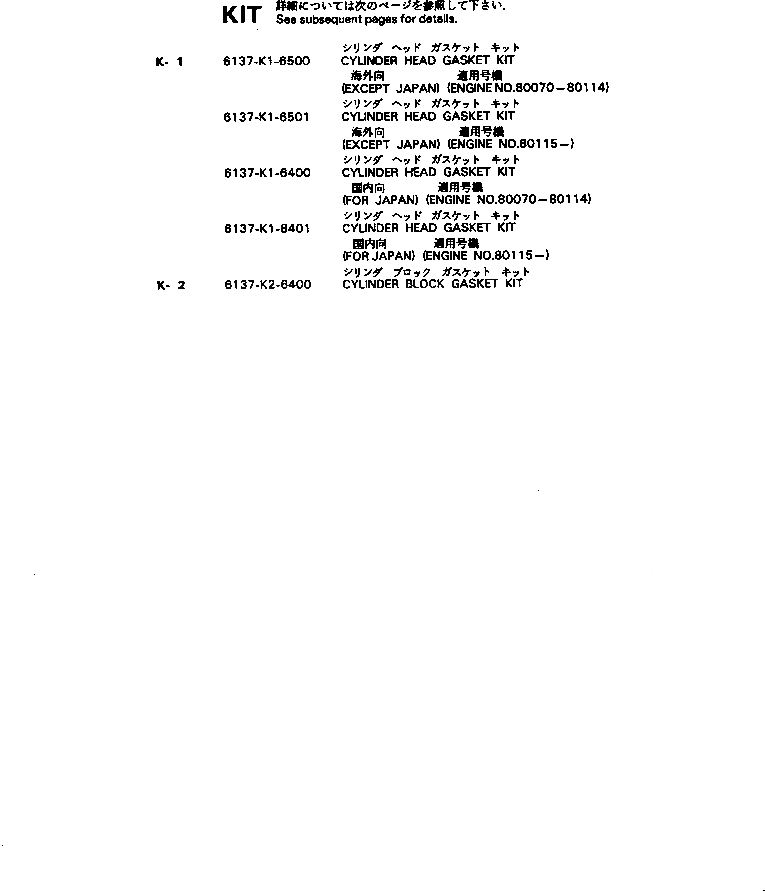

Схема запчастей Komatsu S6D105-1MM-B - КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ¤ МАРКИРОВКА И ДВИГАТЕЛЬ КОМПЛЕКТ

Артикул

Название

Примечание

Количество

1

6137-K1-6501

GASKET KIT,CYLINDER HEAD (EXCEPT JAPAN)

SN: 80115-UP

1шт.

1

6137-K1-6500

GASKET KIT,CYLINDER HEAD (EXCEPT JAPAN)

SN: 80070-80114

1шт.

1

6137-K1-8401

GASKET KIT,CYLINDER HEAD (FOR JAPAN)

SN: 80115-UP

1шт.

1

6137-K1-6400

GASKET KIT,CYLINDER HEAD (FOR JAPAN)

SN: 80070-80114

1шт.

1

6136-11-1813

GASKET,CYLINDER HEAD

SN: 96036-UP

1шт.

1

0

GASKET,CYLINDER HEAD

SN: (80070-96035)

1шт.

1

6136-11-1821

GASKET,FRONT HANGER

SN: 80070-UP

1шт.

1

6114-21-5190

O-RING,BREATHER

SN: 80070-UP

1шт.

1

6136-11-8814

O-RING,HEAD COVER

SN: 80070-UP

1шт.

1

6136-11-8142

PACKING,HEAD COVER NUT

SN: 80070-UP

4шт.

1

07005-02216

GASKET,INTAKE MANIFOLD PLUG

SN: 80070-82171

2шт.

1

6136-11-4811

GASKET,INTAKE MANIFOLD

SN: 80070-UP

1шт.

1

6136-11-4820

GASKET,AIR CONNECTOR

SN: 80070-UP

2шт.

1

600-181-7511

WASHER,SEAL, AIR CLEANER ELEMENT

SN: 80070-UP

1шт.

1

600-181-7511

WASHER,SEAL, AIR CLEANER ELEMENT

SN: 80070-UP

1шт.

1

600-181-8490

O-RING,AIR CLEANER COVER

SN: 80070-UP

1шт.

1

6110-11-4430

GASKET,AIR CLEANER

SN: 80070-UP

1шт.

1

6136-11-5810

GASKET,EXHAUST MANIFOLD

SN: 80070-UP

3шт.

1

6131-11-5170

GASKET,TURBOCHARGER

SN: 80070-UP

1шт.

1

6131-15-5350

GASKET,EXHAUST ELBOW

SN: 80070-UP

1шт.

1

07000-62018

O-RING,TURBOCHARGER INLET PIPE

SN: 80070-UP

1шт.

1

6131-51-7681

GASKET,TURBOCHARGER OUTLET PIPE

SN: 80070-UP

1шт.

1

07005-01412

GASKET,FUEL FILTER

SN: 80070-UP

1шт.

1

07005-01412

GASKET,FUEL HOSE

SN: 80070-UP

8шт.

1

07005-00812

GASKET,NOZZLE HOLDER

SN: 80070-UP

12шт.

1

6136-11-3131

PACKING,NOZZLE HOLDER

SN: 80070-UP

6шт.

1

6136-61-1811

GASKET,WATER PUMP

SN: 80070-UP

1шт.

1

07005-01612

GASKET,THERMOSTAT HOUSING PLUG

SN: 80070-UP

1шт.

1

6136-11-6821

GASKET,THERMOSTAT HOUSING

SN: 80070-UP

1шт.

1

6136-11-6810

GASKET,THERMOSTAT

SN: 80070-UP

1шт.

1

08034-00519

BAND,CORROSION RESISTOR PIPING

SN: 80070-UP

1шт.

2

6137-K2-6400

GASKET KIT,CYLINDER BLOCK

SN: 80070-UP

1шт.

2

07005-01212

GASKET,CYLINDER BLOCK PLUG

SN: 80070-UP

1шт.

2

6136-21-2220

SEAL,CREVICE, CYLINDER LINER

SN: 80070-UP

6шт.

2

6136-21-2230

O-RING,UPPER, CYLINDER LINER

SN: 80070-UP

6шт.

2

6136-21-2240

O-RING,LOWER, CYLINDER LINER

SN: 80070-UP

6шт.

2

6136-21-7180

GASKET,OIL FILLER CAP

SN: 80070-UP

1шт.

2

6136-21-7811

GASKET,OIL FILLER

SN: 80070-UP

1шт.

2

6136-21-3821

GASKET,FRONT PLATE

SN: 80070-UP

1шт.

2

6136-21-3812

GASKET,FRONT COVER

SN: 80070-UP

1шт.

2

6136-21-3510

SEAL, FRONT

SN: 80070-UP

1шт.

2

6150-71-1910

SEAL,OIL, BEARING COVER

SN: 80070-UP

1шт.

2

07000-02070

O-RING,BEARING COVER

SN: 80070-UP

1шт.

2

07000-03022

O-RING,OIL PAN DRAIN PLUG

SN: 80070-UP

1шт.

2

07005-01612

GASKET,OIL PAN PLUG

SN: 80070-UP

1шт.

2

6136-21-5810

GASKET,OIL PAN

SN: 80070-UP

1шт.

2

6136-21-4812

GASKET,FLYWHEEL HOUSING

SN: 80070-UP

1шт.

2

6130-22-4231

SEAL, REAR

SN: 80070-UP

1шт.

2

07000-63035

O-RING,OIL SUCTION PIPE

SN: 80070-UP

1шт.

2

07000-63028

O-RING,OIL FILTER

SN: 80070-UP

2шт.

2

07000-62018

O-RING,TURBOCHARGER INLET PIPE

SN: 80070-UP

1шт.

2

6131-51-7681

GASKET,TURBOCHARGER OUTLET PIPE

SN: 80070-UP

1шт.

2

6136-61-2190

O-RING,OIL COOLER COVER PLUG

SN: 80070-UP

1шт.

2

6136-61-2150

O-RING,THERMO VALVE

SN: 80070-UP

1шт.

2

6136-61-2190

O-RING,OIL COOLER ELEMENT

SN: 80070-UP

2шт.

2

6127-61-2971

O-RING,OIL COOLER ELEMENT

SN: 80070-UP

4шт.

2

6136-61-2811

GASKET,OIL COOLER

SN: 80070-UP

1шт.

2

07000-23022

O-RING,OIL PIPE

SN: 80070-UP

1шт.

2

07000-63028

O-RING,OIL PIPE

SN: 80070-UP

1шт.

2

07012-00032

SEAL,OIL, INJECTION PUMP COVER

SN: 80070-UP

1шт.

2

6131-81-3141

GASKET,INJECTION PUMP COVER

SN: 80070-UP

1шт.

2

6136-71-3141

WASHER,LOCK, INJECTION GEAR

SN: 80070-UP

1шт.

2

07005-01012

GASKET,OIL INLET PIPE

SN: 80070-UP

2шт.

2

07005-01212

GASKET,OIL OUTLET PIPE

SN: 80070-UP

2шт.

2

07005-01412

GASKET,FUEL FILTER

SN: 80070-UP

1шт.

2

07005-01412

GASKET,FUEL HOSE

SN: 80070-UP

8шт.

2

6150-61-1520

SEAL, WATER

SN: 80070-UP

1шт.

2

07000-02145

O-RING,WATER PUMP COVER

SN: 80070-UP

1шт.

2

6136-61-2811

GASKET,WATER PUMP

SN: 80070-UP

1шт.

2

08034-00519

BAND,CORROSION RESISTOR PIPING

SN: 80070-UP

1шт.

2

07000-02100

O-RING,STARTING MOTOR

SN: 80070-UP

1шт.

Выбрано товаров: 71
