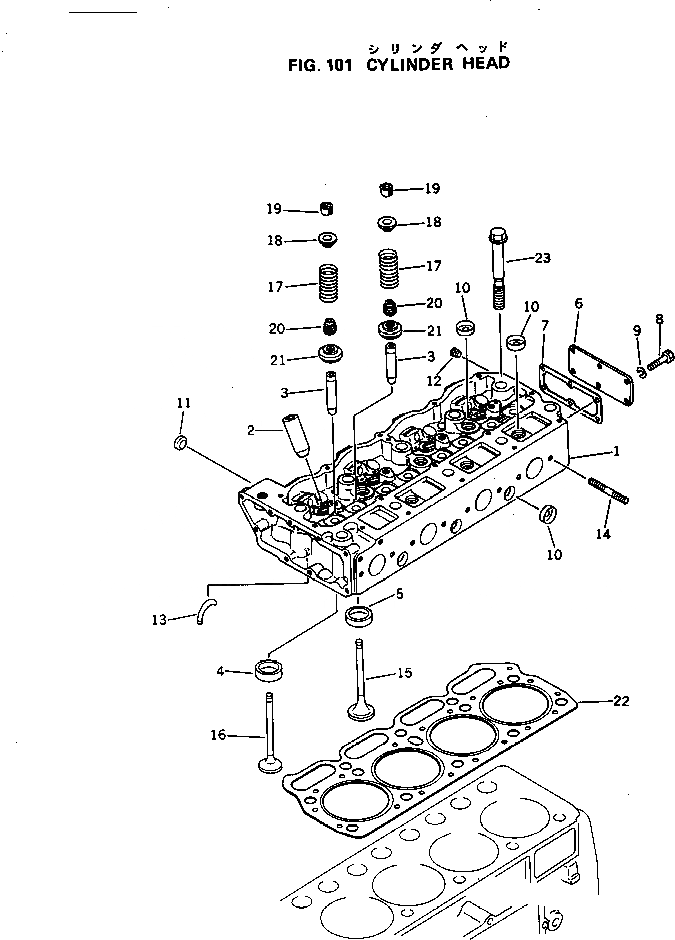

Запчасти Komatsu S4D105-2H ГОЛОВКА ЦИЛИНДРОВ ГОЛОВКА ЦИЛИНДРОВ

|1

6131-11-1001

CYLINDER HEAD ASS'Y,WITH VALVE

SN: 30026-UP

1шт.

|1

0

CYLINDER HEAD ASS'Y,WITH VALVE

SN: 30026-39999

1шт.

|1

6131-11-1201

CYLINDER HEAD ASS'Y,VALVE LESS

SN: 30026-UP

1шт.

|1

0

CYLINDER HEAD ASS'Y,VALVE LESS

SN: 30026-39999

1шт.

1

0

HEAD,CYLINDER

SN: 30026-UP

1шт.

2

6130-11-1131

SLEEVE

SN: 30026-UP

4шт.

3

6130-11-1310

GUIDE,VALVE

SN: 30026-UP

8шт.

4

6130-11-1323

SEAT,EXHAUST VALVE (STD)

SN: 30026-UP

4шт.

|4

6130-19-1323

SEAT¤ 0.25MM,EXHAUST VALVE (OS)

SN: 30026-UP

4шт.

|4

6130-18-1323

SEAT¤ 0.50MM,EXHAUST VALVE (OS)

SN: 30026-UP

4шт.

|4

6130-17-1323

SEAT¤ 0.75MM,EXHAUST VALVE (OS)

SN: 30026-UP

4шт.

|4

6130-16-1323

SEAT¤ 1.00MM,EXHAUST VALVE (OS)

SN: 30026-UP

4шт.

5

6131-12-1310

SEAT,INTAKE VALVE (STD)

SN: 30026-UP

4шт.

|5

0

SEAT,INTAKE VALVE (STD)

SN: (30026-39999)

4шт.

|5

6131-19-1310

SEAT¤ 0.25MM,INTAKE VALVE (OS)

SN: 30026-UP

4шт.

|5

0

SEAT¤ 0.25MM,INTAKE VALVE (OS)

SN: (30026-39999)

4шт.

|5

6131-18-1310

SEAT¤ 0.50MM,INTAKE VALVE (OS)

SN: 30026-UP

4шт.

|5

0

SEAT¤ 0.50MM,INTAKE VALVE (OS)

SN: (30026-39999)

4шт.

|5

6131-17-1310

SEAT¤ 0.75MM,INTAKE VALVE (OS)

SN: 30026-UP

4шт.

|5

0

SEAT¤ 0.75MM,INTAKE VALVE (OS)

SN: (30026-39999)

4шт.

|5

6131-16-1310

SEAT¤ 1.00MM,INTAKE VALVE (OS)

SN: 30026-UP

4шт.

|5

0

SEAT¤ 1.00MM,INTAKE VALVE (OS)

SN: (30026-39999)

4шт.

6

6130-11-1931

PLATE

SN: 30026-UP

1шт.

7

6130-11-1940

GASKET (K1)

SN: 30026-UP

1шт.

8

01010-30816

BOLT

SN: 30026-UP

6шт.

9

01602-00825

WASHER,SPRING

SN: 30026-UP

6шт.

10

6130-11-1410

PLUG

SN: 30026-UP

9шт.

11

6130-11-1420

PLUG

SN: 30026-UP

4шт.

12

6100-21-1130

PLUG

SN: 30026-UP

2шт.

13

6130-11-1451

NOZZLE

SN: 30026-UP

8шт.

14

01140-61035

STUD

SN: 30026-UP

8шт.

15

6131-42-4120

VALVE,INTAKE

SN: 30026-UP

4шт.

|15

6131-42-4110

VALVE,INTAKE

SN: 30026-UP

4шт.

|15

0

VALVE,INTAKE

SN: (.-39999)

4шт.

|15

0

VALVE,INTAKE

SN: (30026-.)

4шт.

16

6130-41-4210

VALVE,EXHAUST

SN: 30026-UP

4шт.

17

6130-41-4410

SPRING,VALVE

SN: 30026-UP

8шт.

18

6130-41-4511

GUIDE,SPRING

SN: 30026-UP

8шт.

19

6130-41-4520

COTTER

SN: 30026-UP

16шт.

20

6130-41-4541

SEAL,VALVE STEM (K1)

SN: 30026-UP

8шт.

21

6130-41-4610

COIL

SN: 30026-UP

8шт.

22

6131-11-1810

GASKET

SN: 30026-UP

1шт.

23

6130-11-1611

BOLT

SN: 30026-UP

10шт.
