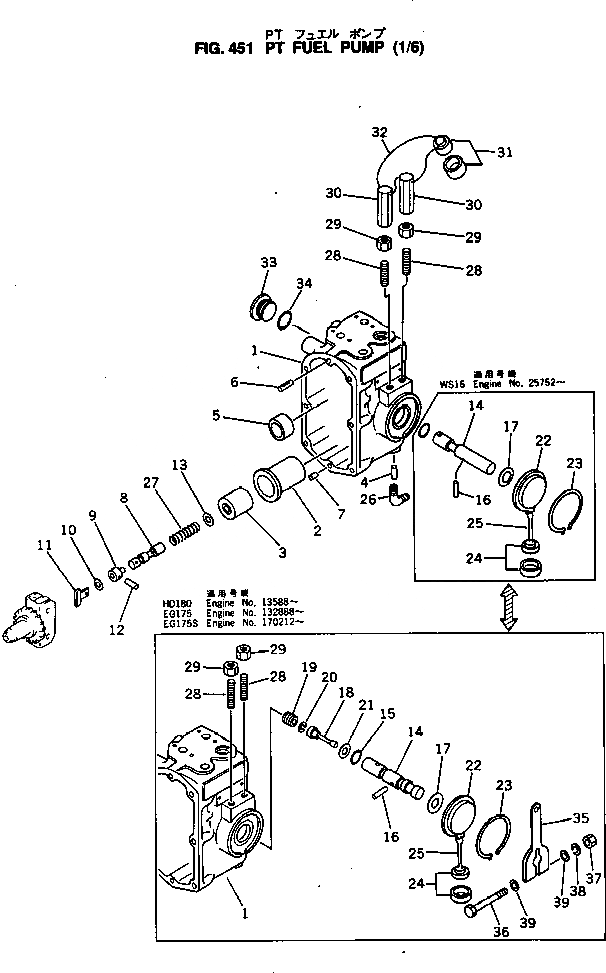

Запчасти Komatsu NTO-6-CI-1B PT ТОПЛИВН. НАСОС (/) ТОПЛИВН. СИСТЕМА

|$0

6657-72-1004

PT FUEL PUMP ASS'Y,(GR-J077)

SN: 139523-UP

1шт.

|$1

0

PT FUEL PUMP ASS'Y,(GR-J077)

SN: 101692-139522

1шт.

|$2

6657-72-1002

PT FUEL PUMP ASS'Y,(GR-J077)

SN: 101674-101691

1шт.

|$3

6657-72-1001

PT FUEL PUMP ASS'Y,(GR-J063)

SN: 25762-101673

1шт.

|$4

6610-71-1011

HOUSING ASS'Y

SN: 25762-UP

1шт.

|$5

6610-71-1020

HOUSING ASS'Y

SN: 25762-UP

1шт.

1

0

HOUSING

SN: 107687-UP

1шт.

1

0

HOUSING

SN: 25762-107686

1шт.

1

0

PLUG

SN: 25762-UP

1шт.

1

0

PLUG

SN: 144160-UP

1шт.

1

0

PLUG

SN: 25762-144159

1шт.

1

0

SLEEVE,THROTTLE SHAFT

SN: 25762-UP

1шт.

1

0

SLEEVE,THROTTLE SHAFT

SN: 25762-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 107687-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 25762-107686

1шт.

|$15

0

BARREL ASS'Y (STD)

SN: 25762-UP

1шт.

|$16

0

BARREL ASS'Y,0.25MM (OS)

SN: 25762-UP

1шт.

|$17

0

BARREL ASS'Y,0.50MM (OS)

SN: 25762-UP

1шт.

3

0

BARREL (STD)

SN: 25762-UP

1шт.

3

0

BARREL,0.25MM (OS)

SN: 25762-UP

1шт.

3

0

BARREL,0.50MM (OS)

SN: 25762-UP

1шт.

3

0

SLEEVE (STD)

SN: 25762-UP

1шт.

3

0

SLEEVE,0.25MM (OS)

SN: 25762-UP

1шт.

3

0

SLEEVE,0.50MM (OS)

SN: 25762-UP

1шт.

4

6610-71-1180

CLIP

SN: 25762-UP

1шт.

5

0

BUSHING

SN: 25762-UP

1шт.

6

6610-71-1151

RING,DOWEL

SN: 139523-UP

1шт.

6

0

PIN,DOWEL

SN: 25762-139522

1шт.

7

6610-71-1151

RING,DOWEL

SN: 139523-UP

1шт.

7

0

PIN,DOWEL

SN: 25762-139522

1шт.

|$30

6610-71-1041

PLUNGER ASS'Y,GOVERNOR, RED, CLASS 0

SN: 25762-UP

1шт.

|$31

6610-79-1041

PLUNGER ASS'Y,GOVERNOR, BLUE, CLASS 1

SN: 25762-UP

1шт.

|$32

6610-78-1041

PLUNGER ASS'Y,GOVERNOR, GREEN, CLASS 2

SN: 25762-UP

1шт.

|$33

6610-77-1041

PLUNGER ASS'Y,GOVERNOR, YELLOW, CLASS 3

SN: 25762-UP

1шт.

|$34

6610-76-1041

PLUNGER ASS'Y,GOVERNOR, BROWN, CLASS 4

SN: 25762-UP

1шт.

|$35

6610-75-1041

PLUNGER ASS'Y,GOVERNOR, BLACK, CLASS 5

SN: 25762-UP

1шт.

|$36

6610-74-1041

PLUNGER ASS'Y,GOVERNOR, GREY, CLASS 6

SN: 25762-UP

1шт.

|$37

6610-73-1041

PLUNGER ASS'Y,GOVERNOR, PURPLE, CLASS 7

SN: 25762-UP

1шт.

8

6610-71-1411

PLUNGER,GOVERNOR, RED, CLASS 0

SN: 25762-UP

1шт.

8

6610-79-1411

PLUNGER,GOVERNOR, BLUE, CLASS 1

SN: 25762-UP

1шт.

8

6610-78-1411

PLUNGER,GOVERNOR, GREEN, CLASS 2

SN: 25762-UP

1шт.

8

6610-77-1411

PLUNGER,GOVERNOR, YELLOW, CLASS 3

SN: 25762-UP

1шт.

8

6610-76-1411

PLUNGER,GOVERNOR, BROWN, CLASS 4

SN: 25762-UP

1шт.

8

6610-75-1411

PLUNGER,GOVERNOR, BLACK, CLASS 5

SN: 25762-UP

1шт.

8

6610-74-1411

PLUNGER,GOVERNOR, GREY, CLASS 6

SN: 25762-UP

1шт.

8

6610-73-1411

PLUNGER,GOVERNOR, PURPLE, CLASS 7

SN: 25762-UP

1шт.

9

6610-71-1452

SPACER,PLUNGER

SN: .-UP

1шт.

9

0

SPACER,PLUNGER

SN: 25762-.

1шт.

10

6610-71-1420

WASHER,THRUST

SN: 25762-UP

1шт.

11

6610-71-1430

DRIVE,GOVERNOR PLUNGER

SN: 25762-UP

1шт.

12

6610-71-1440

PIN,GOVERNOR PLUNGER

SN: 25762-UP

1шт.

13

6610-71-1460

SHIM, 0.13MM

SN: 25762-UP

-2шт.

13

6610-71-1470

SHIM, 0.25MM

SN: 25762-UP

-2шт.

13

6610-71-1480

SHIM, 0.51MM

SN: 25762-UP

-2шт.

|$54

6610-71-1090

SHAFT ASS'Y,THROTTLE, RED, CLASS 0

SN: 25762-UP

1шт.

|$55

6610-79-1090

SHAFT ASS'Y,THROTTLE, BLUE, CLASS 1

SN: 25762-UP

1шт.

|$56

6610-78-1090

SHAFT ASS'Y,THROTTLE, GREEN, CLASS 2

SN: 25762-UP

1шт.

|$57

6610-77-1090

SHAFT ASS'Y,THROTTLE, YELLOW, CLASS 3

SN: 25762-UP

1шт.

|$58

6610-76-1090

SHAFT ASS'Y,THROTTLE, BROWN, CLASS 4

SN: 25762-UP

1шт.

|$59

6610-75-1090

SHAFT ASS'Y,THROTTLE, BLACK, CLASS 5

SN: 25762-UP

1шт.

14

6610-71-1340

SHAFT,RED, CLASS 0

SN: 25762-UP

1шт.

14

6610-79-1340

SHAFT,BLUE, CLASS 1

SN: 25762-UP

1шт.

14

6610-78-1340

SHAFT,GREEN, CLASS 2

SN: 25762-UP

1шт.

14

6610-77-1340

SHAFT,YELLOW, CLASS 3

SN: 25762-UP

1шт.

14

6610-76-1340

SHAFT,BROWN, CLASS 4

SN: 25762-UP

1шт.

14

6610-75-1340

SHAFT,BLACK, CLASS 5

SN: 25762-UP

1шт.

15

6610-71-1320

O-RING (K6)

SN: 25762-UP

1шт.

16

6610-71-1360

PIN,SPRING

SN: 25762-UP

1шт.

17

6610-71-1370

WASHER

SN: 25762-UP

2шт.

21

6610-71-1250

SHIM, 0.25MM

SN: 25762-UP

5шт.

21

6610-71-1260

SHIM, 0.13MM

SN: 25762-UP

5шт.

21

6610-71-1270

SHIM, 0.05MM

SN: 25762-UP

5шт.

22

6610-71-1730

COVER,THROTTLE SHAFT

SN: 25762-UP

1шт.

23

6600-01-3110

RING,SNAP

SN: 25762-UP

1шт.

24

6610-71-1760

SEAL,LEAD

SN: 25762-UP

1шт.

25

6610-71-1771

WIRE,SEAL

SN: 25762-UP

1шт.

26

02720-40204

PLUG,PRIMING PUMP

SN: 144160-UP

1шт.

26

0

PLUG

SN: 35772-144159

1шт.

26

6610-01-3290

CONNECTOR,PRIMING PUMP

SN: 25762-35771

1шт.

27

6610-71-5120

SPRING,TORQUE CONTROL

SN: 113392-UP

1шт.

27

6610-71-5170

SPRING,TORQUE CONTROL

SN: 25762-113391

1шт.

28

6610-71-1790

SCREW,SET

SN: 25762-UP

2шт.

29

02215-10406

NUT

SN: .-UP

2шт.

29

0

NUT

SN: 25762-.

2шт.

30

6610-71-3180

NUT

SN: 25762-UP

2шт.

31

6610-71-1760

SEAL,LEAD

SN: 25762-UP

1шт.

32

6610-71-1771

WIRE,SEAL

SN: 25762-UP

1шт.

33

6610-71-1870

PLUG

SN: 25762-UP

1шт.

34

02891-02018

O-RING (K6)

SN: 25762-UP

1шт.
