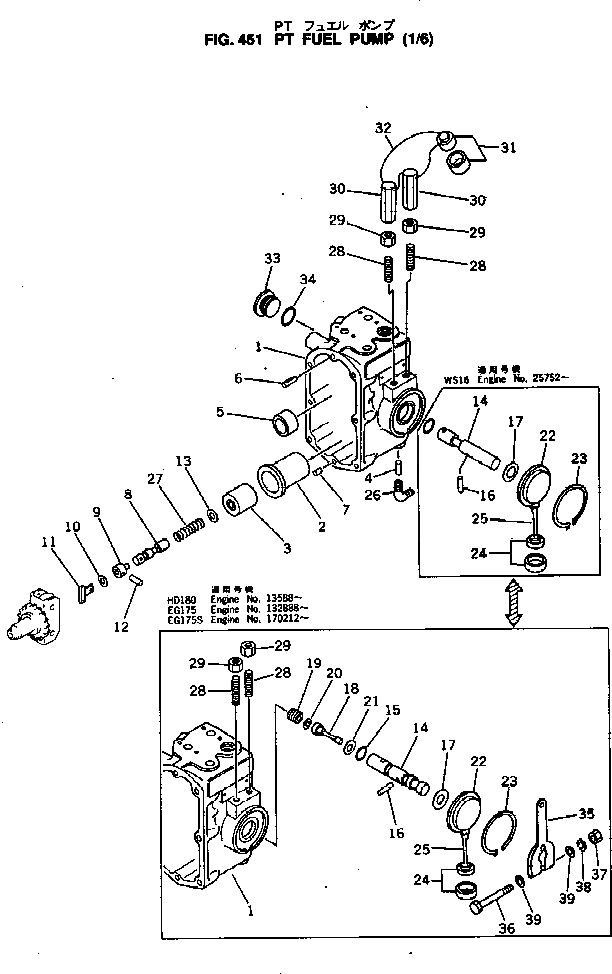

Запчасти Komatsu NTO-6-B-1A PT ТОПЛИВН. НАСОС (/) ТОПЛИВН. СИСТЕМА

|$0

6686-71-1006

PT FUEL PUMP ASS'Y,(GR-J021)

SN: 139523-UP

1шт.

|$1

0

PT FUEL PUMP ASS'Y,(GR-J021)

SN: .-139522

1шт.

|$2

6686-71-1004

PT FUEL PUMP ASS'Y,(GR-J021)

SN: 101674-.

1шт.

|$3

6686-71-1000

PT FUEL PUMP ASS'Y,(GR-J021)

SN: 20817-101673

1шт.

|$4

6686-71-1001

PT FUEL PUMP ASS'Y,(GR-J048)

SN: 16037-20816

1шт.

|$5

6686-71-1000

PT FUEL PUMP ASS'Y,(GR-J021)

SN: 13588-16036

1шт.

|$6

6610-71-1010

HOUSING ASS'Y

SN: 13588-UP

1шт.

|$7

6610-71-1020

HOUSING ASS'Y

SN: 13588-UP

1шт.

1

0

HOUSING

SN: 107687-UP

1шт.

1

0

HOUSING

SN: 13588-107686

1шт.

1

0

PLUG

SN: 13588-UP

1шт.

1

0

PLUG

SN: 144160-UP

1шт.

1

0

PLUG

SN: 13588-144159

1шт.

1

0

SLEEVE,THROTTLE SHAFT

SN: 13588-UP

1шт.

1

0

SLEEVE,THROTTLE SHAFT

SN: 13588-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 107687-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 13588-107686

1шт.

|$17

0

BARREL ASS'Y (STD)

SN: 13588-UP

1шт.

|$18

0

BARREL ASS'Y,0.25MM (OS)

SN: 13588-UP

1шт.

|$19

0

BARREL ASS'Y,0.50MM (OS)

SN: 13588-UP

1шт.

3

0

BARREL (STD)

SN: 13588-UP

1шт.

3

0

BARREL,0.25MM (OS)

SN: 13588-UP

1шт.

3

0

BARREL,0.50MM (OS)

SN: 13588-UP

1шт.

3

0

SLEEVE (STD)

SN: 13588-UP

1шт.

3

0

SLEEVE,0.25MM (OS)

SN: 13588-UP

1шт.

3

0

SLEEVE,0.50MM (OS)

SN: 13588-UP

1шт.

4

6610-71-1180

CLIP

SN: 13588-UP

1шт.

5

0

BUSHING

SN: 13588-UP

1шт.

6

6610-71-1151

RING,DOWEL

SN: 139523-UP

1шт.

6

0

PIN,DOWEL

SN: 13588-139522

1шт.

7

6610-71-1151

RING,DOWEL

SN: 139523-UP

1шт.

7

0

PIN,DOWEL

SN: 13588-139522

1шт.

|$32

6610-71-1041

PLUNGER ASS'Y,GOVERNOR, RED, CLASS 0

SN: 13588-UP

1шт.

|$33

6610-79-1041

PLUNGER ASS'Y,GOVERNOR, BLUE, CLASS 1

SN: 13588-UP

1шт.

|$34

6610-78-1041

PLUNGER ASS'Y,GOVERNOR, GREEN, CLASS 2

SN: 13588-UP

1шт.

|$35

6610-77-1041

PLUNGER ASS'Y,GOVERNOR, YELLOW, CLASS 3

SN: 13588-UP

1шт.

|$36

6610-76-1041

PLUNGER ASS'Y,GOVERNOR, BROWN, CLASS 4

SN: 13588-UP

1шт.

|$37

6610-75-1041

PLUNGER ASS'Y,GOVERNOR, BLACK, CLASS 5

SN: 13588-UP

1шт.

|$38

6610-74-1041

PLUNGER ASS'Y,GOVERNOR, GREY, CLASS 6

SN: 13588-UP

1шт.

|$39

6610-73-1041

PLUNGER ASS'Y,GOVERNOR, PURPLE, CLASS 7

SN: 13588-UP

1шт.

8

6610-71-1411

PLUNGER,GOVERNOR, RED, CLASS 0

SN: 13588-UP

1шт.

8

6610-79-1411

PLUNGER,GOVERNOR, BLUE, CLASS 1

SN: 13588-UP

1шт.

8

6610-78-1411

PLUNGER,GOVERNOR, GREEN, CLASS 2

SN: 13588-UP

1шт.

8

6610-77-1411

PLUNGER,GOVERNOR, YELLOW, CLASS 3

SN: 13588-UP

1шт.

8

6610-76-1411

PLUNGER,GOVERNOR, BROWN, CLASS 4

SN: 13588-UP

1шт.

8

6610-75-1411

PLUNGER,GOVERNOR, BLACK, CLASS 5

SN: 13588-UP

1шт.

8

6610-74-1411

PLUNGER,GOVERNOR, GREY, CLASS 6

SN: 13588-UP

1шт.

8

6610-73-1411

PLUNGER,GOVERNOR, PURPLE, CLASS 7

SN: 13588-UP

1шт.

9

6610-71-1452

SPACER,PLUNGER

SN: .-UP

1шт.

9

0

SPACER,PLUNGER

SN: 13588-.

1шт.

10

6610-71-1420

WASHER,THRUST

SN: 13588-UP

1шт.

11

6610-71-1430

DRIVE,GOVERNOR PLUNGER

SN: 13588-UP

1шт.

12

6610-71-1440

PIN,GOVERNOR PLUNGER

SN: 13588-UP

1шт.

13

6610-71-1460

SHIM, 0.13MM

SN: 13588-UP

-2шт.

13

6610-71-1470

SHIM, 0.25MM

SN: 13588-UP

-2шт.

13

6610-71-1480

SHIM, 0.51MM

SN: 13588-UP

-2шт.

|$56

6610-71-1050

SHAFT ASS'Y,THROTTLE, RED, CLASS 0

SN: 13588-UP

1шт.

|$57

6610-79-1050

SHAFT ASS'Y,THROTTLE, BLUE, CLASS 1

SN: 13588-UP

1шт.

|$58

6610-78-1050

SHAFT ASS'Y,THROTTLE, GREEN, CLASS 2

SN: 13588-UP

1шт.

|$59

6610-77-1050

SHAFT ASS'Y,THROTTLE, YELLOW, CLASS 3

SN: 13588-UP

1шт.

|$60

6610-76-1050

SHAFT ASS'Y,THROTTLE, BROWN, CLASS 4

SN: 13588-UP

1шт.

|$61

6610-75-1050

SHAFT ASS'Y,THROTTLE, BLACK, CLASS 5

SN: 13588-UP

1шт.

14

6610-71-1310

SHAFT,RED, CLASS 0

SN: 13588-UP

1шт.

14

6610-79-1310

SHAFT,BLUE, CLASS 1

SN: 13588-UP

1шт.

14

6610-78-1310

SHAFT,GREEN, CLASS 2

SN: 13588-UP

1шт.

14

6610-77-1310

SHAFT,YELLOW, CLASS 3

SN: 13588-UP

1шт.

14

6610-76-1310

SHAFT,BROWN, CLASS 4

SN: 13588-UP

1шт.

14

6610-75-1310

SHAFT,BLACK, CLASS 5

SN: 13588-UP

1шт.

15

6610-71-1320

O-RING (K6)

SN: 13588-UP

1шт.

16

6610-71-1360

PIN,SPRING

SN: 13588-UP

1шт.

17

6610-71-1370

WASHER

SN: 13588-UP

2шт.

18

6610-71-1330

PLUNGER,ADJUSTING

SN: 13588-UP

1шт.

19

6610-71-1350

SCREW,SET

SN: 13588-UP

1шт.

20

02310-10610

WASHER,SPRING

SN: 13588-UP

1шт.

21

6610-71-1240

SHIM, 0.76MM

SN: 13588-UP

1шт.

21

6610-71-1250

SHIM, 0.25MM

SN: 13588-UP

5шт.

21

6610-71-1260

SHIM, 0.13MM

SN: 13588-UP

5шт.

21

6610-71-1270

SHIM, 0.05MM

SN: 13588-UP

5шт.

22

6610-71-1740

COVER,THROTTLE SHAFT

SN: 13588-UP

1шт.

23

6600-01-3110

RING,SNAP

SN: 13588-UP

1шт.

24

6610-71-1760

SEAL,LEAD

SN: 13588-UP

1шт.

25

6610-71-1771

WIRE,SEAL

SN: 13588-UP

1шт.

26

6610-81-8820

ELBOW,PRIMING PUMP

SN: 108446-UP

1шт.

26

6610-01-3290

CONNECTOR,PRIMING PUMP

SN: 13588-108445

1шт.

27

6610-71-5120

SPRING,TORQUE CONTROL

SN: 113392-UP

1шт.

27

6610-71-5140

SPRING,TORQUE CONTROL

SN: 13588-113391

1шт.

28

6610-71-1750

SCREW,SET

SN: 13588-UP

2шт.

29

02215-10406

NUT

SN: .-UP

2шт.

29

0

NUT

SN: 13588-.

2шт.

30

6610-71-3180

NUT

SN: 25762-UP

2шт.

31

6610-71-1760

SEAL,LEAD

SN: 25762-UP

1шт.

32

6610-71-1771

WIRE,SEAL

SN: 25762-UP

1шт.

33

6610-71-1870

PLUG

SN: 13588-UP

1шт.

34

02891-02018

O-RING (K6)

SN: 13588-UP

1шт.

35

6710-71-1300

LEVER,THROTTLE

SN: 139523-UP

1шт.

35

6684-71-1390

LEVER,THROTTLE

SN: 13588-139522

1шт.

36

02030-20438

BOLT

SN: 13588-UP

1шт.

37

02216-10404

NUT

SN: 13588-UP

1шт.

38

02310-10916

WASHER,SPRING

SN: 13588-UP

1шт.

39

6610-71-1840

WASHER

SN: 13588-UP

2шт.
