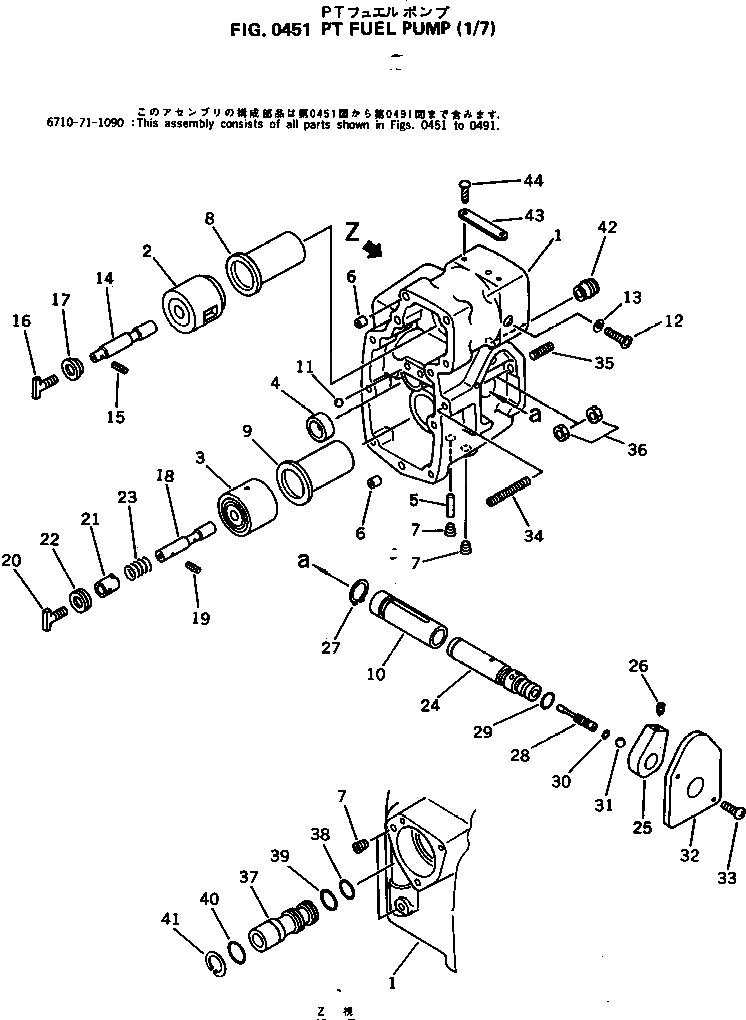

Запчасти Komatsu NTA-855-1F PT ТОПЛИВН. НАСОС (/7) ТОПЛИВН. СИСТЕМА

|$0

6710-71-1090

PT FUEL PUMP ASS'Y,(GR-J213)

SN: 170637-UP

1шт.

|$1

6710-73-1010

HOUSING ASS'Y,FUEL PUMP

SN: 170637-UP

1шт.

|$2

6710-73-1020

HOUSING ASS'Y,FUEL PUMP

SN: 170637-UP

1шт.

1

0

HOUSING,FUEL PUMP

SN: 170637-UP

1шт.

2

6710-73-3031

BARREL ASS'Y,UPPER

SN: 170637-UP

1шт.

3

6610-71-1200

BARREL ASS'Y,LOWER

SN: 170637-UP

1шт.

4

6610-71-1120

BUSHING

SN: 170637-UP

1шт.

5

6610-71-1180

CLIP

SN: 170637-UP

1шт.

6

6610-71-1151

RING,DOWEL

SN: 170637-UP

2шт.

7

02720-40204

PLUG

SN: 170637-UP

4шт.

8

6610-71-3210

HOUSING,UPPER

SN: 170637-UP

1шт.

9

6710-71-1140

HOUSING,LOWER

SN: 170637-UP

1шт.

10

6710-71-1130

SLEEVE

SN: 170637-UP

1шт.

11

6710-71-1720

BALL

SN: 170637-UP

3шт.

12

6710-71-1840

SCREW

SN: 170637-UP

1шт.

13

6710-81-8730

WASHER,SEAL

SN: 170637-UP

1шт.

|$16

6710-73-3040

PLUNGER ASS'Y,UPPER, RED, CLASS 0

SN: 170637-UP

1шт.

|$17

6710-79-3040

PLUNGER ASS'Y,UPPER, BLUE, CLASS 1

SN: 170637-UP

1шт.

|$18

6710-78-3040

PLUNGER ASS'Y,UPPER, GREEN, CLASS 2

SN: 170637-UP

1шт.

|$19

6710-77-3040

PLUNGER ASS'Y,UPPER, YELLOW, CLASS 3

SN: 170637-UP

1шт.

|$20

6710-76-3040

PLUNGER ASS'Y,UPPER, ORANGE, CLASS 4

SN: 170637-UP

1шт.

|$21

6710-75-3040

PLUNGER ASS'Y,UPPER, BLACK, CLASS 5

SN: 170637-UP

1шт.

14

6710-71-3360

PLUNGER,RED, CLASS 0

SN: 170637-UP

1шт.

14

6710-79-3360

PLUNGER,BLUE, CLASS 1

SN: 170637-UP

1шт.

14

6710-78-3360

PLUNGER,GREEN, CLASS 2

SN: 170637-UP

1шт.

14

6710-77-3360

PLUNGER,YELLOW, CLASS 3

SN: 170637-UP

1шт.

14

6710-76-3360

PLUNGER,ORANGE, CLASS 4

SN: 170637-UP

1шт.

14

6710-75-3360

PLUNGER,BLACK, CLASS 5

SN: 170637-UP

1шт.

15

6710-71-3240

PIN,DRIVE

SN: 170637-UP

1шт.

16

6610-71-1430

DRIVE

SN: 170637-UP

1шт.

17

6710-71-3220

WASHER,THRUST

SN: 170637-UP

1шт.

|$31

6711-71-1400

PLUNGER ASS'Y,LOWER, RED, CLASS 0

SN: 170637-UP

1шт.

|$32

6711-79-1400

PLUNGER ASS'Y,LOWER, BLUE, CLASS 1

SN: 170637-UP

1шт.

|$33

6711-78-1400

PLUNGER ASS'Y,LOWER, GREEN, CLASS 2

SN: 170637-UP

1шт.

|$34

6711-77-1400

PLUNGER ASS'Y,LOWER, YELLOW, CLASS 3

SN: 170637-UP

1шт.

|$35

6711-76-1400

PLUNGER ASS'Y,LOWER, ORANGE, CLASS 4

SN: 170637-UP

1шт.

|$36

6711-75-1400

PLUNGER ASS'Y,LOWER, BLACK, CLASS 5

SN: 170637-UP

1шт.

|$37

6711-74-1400

PLUNGER ASS'Y,LOWER, GREY, CLASS 6 (OS)

SN: 170637-UP

1шт.

|$38

6711-73-1400

PLUNGER ASS'Y,LOWER, PURPLE, CLASS 7 (OS)

SN: 170637-UP

1шт.

18

6710-71-1410

PLUNGER,RED, CLASS 0

SN: 170637-UP

1шт.

18

6710-79-1410

PLUNGER,BLUE, CLASS 1

SN: 170637-UP

1шт.

18

6710-78-1410

PLUNGER,GREEN, CLASS 2

SN: 170637-UP

1шт.

18

6710-77-1410

PLUNGER,YELLOW, CLASS 3

SN: 170637-UP

1шт.

18

6710-76-1410

PLUNGER,ORANGE, CLASS 4

SN: 170637-UP

1шт.

18

6710-75-1410

PLUNGER,BLACK, CLASS 5

SN: 170637-UP

1шт.

18

6710-74-1410

PLUNGER,GREY, CLASS 6 (OS)

SN: 170637-UP

1шт.

18

6710-73-1410

PLUNGER,PURPLE, CLASS 7 (OS)

SN: 170637-UP

1шт.

19

6610-71-1440

PIN

SN: 170637-UP

1шт.

20

6610-71-1430

DRIVE

SN: 170637-UP

1шт.

21

6610-71-1452

SPACER

SN: 170637-UP

1шт.

22

6610-71-1420

WASHER

SN: 170637-UP

1шт.

23

6610-71-5100

SPRING,TORQUE

SN: 170637-UP

1шт.

|$52

6710-73-1080

SHAFT ASS'Y,THROTTLE

SN: 170637-UP

1шт.

|$53

6711-71-1300

SHAFT ASS'Y,THROTTLE, RED, CLASS 0

SN: 170637-UP

1шт.

|$54

6711-79-1300

SHAFT ASS'Y,THROTTLE, BLUE, CLASS 1

SN: 170637-UP

1шт.

|$55

6711-78-1300

SHAFT ASS'Y,THROTTLE, GREEN, CLASS 2

SN: 170637-UP

1шт.

|$56

6711-77-1300

SHAFT ASS'Y,THROTTLE, YELLOW, CLASS 3

SN: 170637-UP

1шт.

|$57

6711-76-1300

SHAFT ASS'Y,THROTTLE, ORANGE, CLASS 4

SN: 170637-UP

1шт.

|$58

6711-75-1300

SHAFT ASS'Y,THROTTLE, BLACK, CLASS 5

SN: 170637-UP

1шт.

|$59

6711-74-1300

SHAFT ASS'Y,THROTTLE, GREY, CLASS 6 (OS)

SN: 170637-UP

1шт.

|$60

6711-73-1300

SHAFT ASS'Y,THROTTLE, PURPLE, CLASS 7 (OS)

SN: 170637-UP

1шт.

24

6710-71-1312

SHAFT,RED, CLASS 0

SN: 170637-UP

1шт.

24

6710-79-1312

SHAFT,BLUE, CLASS 1

SN: 170637-UP

1шт.

24

6710-78-1312

SHAFT,GREEN, CLASS 2

SN: 170637-UP

1шт.

24

6710-77-1312

SHAFT,YELLOW, CLASS 3

SN: 170637-UP

1шт.

24

6710-76-1312

SHAFT,ORANGE, CLASS 4

SN: 170637-UP

1шт.

24

6710-75-1312

SHAFT,BLACK, CLASS 5

SN: 170637-UP

1шт.

24

6710-74-1312

SHAFT,GREY, CLASS 6 (OS)

SN: 170637-UP

1шт.

24

6710-73-1312

SHAFT,PURPLE, CLASS 7 (OS)

SN: 170637-UP

1шт.

25

6710-71-3141

STOP

SN: 170637-UP

1шт.

26

6710-71-2730

SCREW,SET

SN: 170637-UP

1шт.

27

6610-71-2131

RING,SNAP

SN: 170637-UP

1шт.

28

6710-71-1331

SCREW,ADJUSTING

SN: 170637-UP

1шт.

29

6610-71-1320

O-RING (K6)

SN: 170637-UP

1шт.

30

6710-71-3150

O-RING (K6)

SN: 170637-UP

1шт.

31

6710-71-2930

BALL

SN: 170637-UP

1шт.

32

6710-71-1731

COVER

SN: 170637-UP

1шт.

33

6685-82-9370

SCREW

SN: 170637-UP

2шт.

34

6710-71-2760

SCREW,ADJUSTING

SN: 170637-UP

1шт.

35

6710-71-1791

SCREW,ADJUSTING

SN: 170637-UP

1шт.

36

02216-10404

NUT

SN: 170637-UP

2шт.

37

6710-71-2892

BARREL

SN: 170637-UP

1шт.

38

6710-71-2880

O-RING (K6)

SN: 170637-UP

1шт.

39

02890-01018

O-RING (K6)

SN: 170637-UP

1шт.

40

02890-01020

O-RING (K6)

SN: 170637-UP

1шт.

41

6600-01-3120

RING,SNAP

SN: 170637-UP

1шт.

42

6710-71-3400

VALVE

SN: 170637-UP

1шт.

43

6610-71-1712

PLATE, NAME,(LIMITED SUPPLY)

SN: 170637-UP

1шт.

44

04418-02550

SCREW

SN: 170637-UP

2шт.
