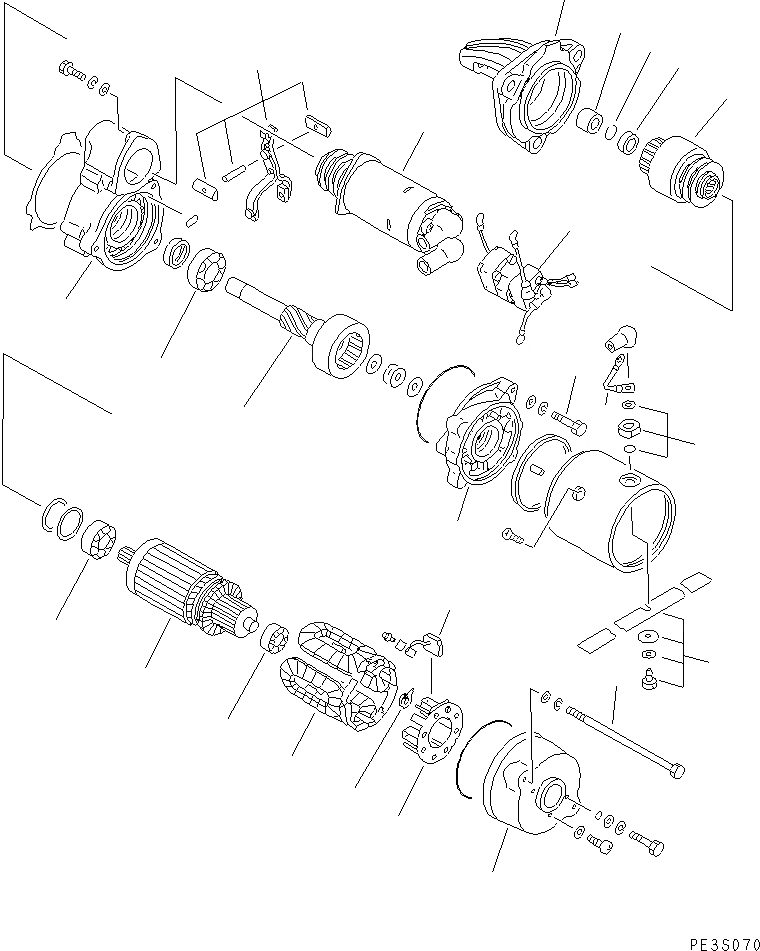

Запчасти Komatsu 6D125-1B-PL СТАРТЕР (7.KW)(№8-) ЭЛЕКТРИКА

|1

600-813-4530

STARTING MOTOR ASS'Y,(7.5KW)

SN: 18200-UP

1шт.

|$$2

THE NIKKO DENKI PART NUMBER IS THAT KD IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

1

KD0-23100-0251

ARMATURE ASS'Y

SN: 18200-UP

1шт.

2

KD1-0454-62047

BEARING,BALL

SN: 18200-UP

1шт.

3

KD1-0454-62007

BEARING,BALL

SN: 18200-UP

1шт.

4

KD0-23230-0281

FIELD COIL ASS'Y

SN: 18200-UP

1шт.

5

KD7-23780-0200

TERMINAL ASS'Y

SN: 18200-UP

1шт.

6

KD1-23785-0060

LEAD WIRE ASS'Y

SN: 18200-UP

1шт.

7

KD0-23310-0860

BRACKET

SN: 18200-UP

1шт.

8

KD7-23351-0080

METAL

SN: 18200-UP

1шт.

9

KD7-23120-0310

SHAFT ASS'Y

SN: 18200-UP

1шт.

10

KD1-0454-60067

BEARING,BALL

SN: 18200-UP

1шт.

11

KD1-23181-0020

STOPPER,PINION

SN: 18200-UP

1шт.

12

KD1-23914-0020

RING,CLIP

SN: 18200-UP

1шт.

13

KD1-23500-0170

CLUTCH ASS'Y,OVER RUNNING

SN: 18200-UP

1шт.

14

KD0-23600-0250

CENTER BRACKET A.,CENTER

SN: 18200-UP

1шт.

15

KD0-23611-0690

BRACKET

SN: 18200-UP

1шт.

16

KD1-0240-08405

BOLT

SN: 18200-UP

3шт.

17

KD7-23320-0060

SHIFT LEVER ASS'Y

SN: 18200-UP

1шт.

18

KD0-47100-3940

MAGNETIC SWITCH A.

SN: 18200-UP

1шт.

|19

KD7-23700-0520

REAR BRACKET ASS'Y

SN: 18200-UP

1шт.

19

KD0-23700-0130

REAR BRACKET ASS'Y

SN: 18200-UP

1шт.

20

KD1-23913-0040

SPRING,BRUSH

SN: 18200-UP

4шт.

21

KD0-23750-0250

BRUSH HOLDER ASS'Y

SN: 18200-UP

1шт.

22

KD0-23740-0250

BRUSH ASS'Y

SN: 18200-UP

4шт.

23

KD0-23901-0170

BOLT

SN: 18200-UP

2шт.

24

KD0-25000-6520

SWITCH ASS'Y

SN: 18200-UP

1шт.

25

KD7-09210-1560

SEAL ASS'Y,(NOT SHOWN)

SN: 18200-UP

1шт.
