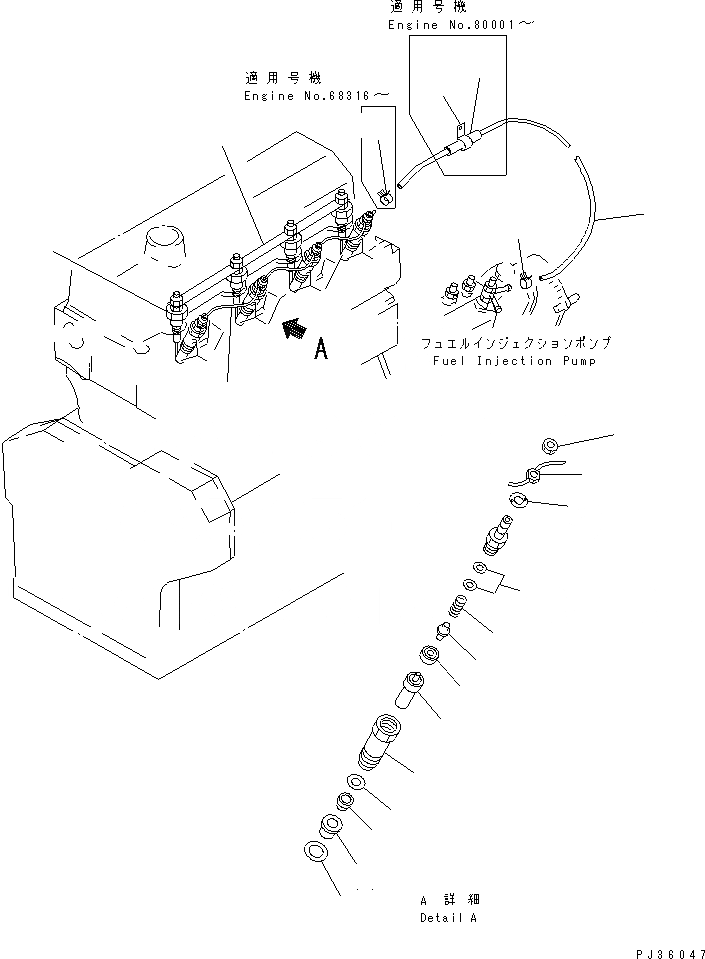

Запчасти Komatsu 4D95S-W-1G-S ТОПЛИВН. ФОРСУНКА И СЛИВНАЯ ТРУБКА ТОПЛИВН. СИСТЕМА

|1

6202-12-3100

NOZZLE HOLDER ASS'Y

SN: 23318-UP

4шт.

|1

6202-12-3110

HOLDER ASS'Y

SN: 23318-UP

1шт.

|$$3

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

1

DK150601-4201

NUT,RETAINER

SN: 23318-UP

1шт.

2

DK150524-0600

SPACER

SN: 23318-UP

1шт.

3

DK150510-0700

ROD,PUSH

SN: 23318-UP

1шт.

4

DK150516-0100

SPRING

SN: 23318-UP

1шт.

5

DK150523-5000

SHIM¤ 0.50MM

SN: 23318-UP

-2шт.

|5

DK150523-5200

SHIM¤ 0.54MM

SN: 23318-UP

-2шт.

|5

DK150523-5400

SHIM¤ 0.58MM

SN: 23318-UP

-2шт.

|5

DK150523-5600

SHIM¤ 0.62MM

SN: 23318-UP

-2шт.

|5

DK150523-5800

SHIM¤ 0.66MM

SN: 23318-UP

-2шт.

|5

DK150523-6000

SHIM¤ 0.70MM

SN: 23318-UP

-2шт.

|5

DK150523-6200

SHIM¤ 0.74MM

SN: 23318-UP

-2шт.

|5

DK150523-6400

SHIM¤ 0.78MM

SN: 23318-UP

-2шт.

|5

DK150523-6600

SHIM¤ 0.82MM

SN: 23318-UP

-2шт.

|5

DK150523-6800

SHIM¤ 0.86MM

SN: 23318-UP

-2шт.

|5

DK150523-7000

SHIM¤ 0.90MM

SN: 23318-UP

-2шт.

|5

DK150523-7200

SHIM¤ 0.94MM

SN: 23318-UP

-2шт.

|5

DK150523-7400

SHIM¤ 0.98MM

SN: 23318-UP

-2шт.

|5

DK150523-7500

SHIM¤ 1.00MM

SN: 23318-UP

-2шт.

6

DK150621-0400

NUT

SN: 23318-UP

1шт.

7

6202-12-3890

GASKET (K1)

SN: 23318-UP

1шт.

8

6202-12-3130

NOZZLE

SN: 23318-UP

1шт.

9

6202-12-3830

GASKET,COVER (K1)

SN: 23318-UP

4шт.

10

6202-12-3870

WASHER,NOZZLE

SN: 23318-UP

4шт.

11

6202-12-3810

COVER,NOZZLE

SN: 23318-UP

4шт.

12

6202-12-3850

GASKET,NOZZLE (K1)

SN: 23318-UP

4шт.

13

6202-72-5810

TUBE,SPILL

SN: 23318-UP

1шт.

14

07270-20455

TUBE,SPILL

SN: 58366-UP

1шт.

|14

0

TUBE,SPILL

SN: 36389-58365

1шт.

|14

0

TUBE,SPILL

SN: 35408-36388

1шт.

|14

0

TUBE,SPILL

SN: 23318-35407

1шт.

15

07285-00085

CLIP

SN: 68316-UP

2шт.

|15

07285-00085

CLIP

SN: 29687-68315

1шт.

16

07286-01010

TUBE

SN: 80001-UP

1шт.

17

08036-10814

CLIP

SN: 80001-UP

1шт.

18

600-815-1340

PLUG,GLOW

SN: 23318-UP

4шт.

19

6202-82-4210

LEAD

SN: 23318-UP

1шт.

|1

6202-12-3100

NOZZLE HOLDER ASS'Y

|1

6202-12-3110

HOLDER ASS'Y

1

DK150601-4201

NUT,RETAINER

2

DK150524-0600

SPACER

3

DK150510-0700

ROD,PUSH

4

DK150516-0100

SPRING

5

DK150523-5000

SHIM¤ 0.50MM

|5

DK150523-5200

SHIM¤ 0.54MM

|5

DK150523-5400

SHIM¤ 0.58MM

|5

DK150523-5600

SHIM¤ 0.62MM

|5

DK150523-5800

SHIM¤ 0.66MM

|5

DK150523-6000

SHIM¤ 0.70MM

|5

DK150523-6200

SHIM¤ 0.74MM

|5

DK150523-6400

SHIM¤ 0.78MM

|5

DK150523-6600

SHIM¤ 0.82MM

|5

DK150523-6800

SHIM¤ 0.86MM

|5

DK150523-7000

SHIM¤ 0.90MM

|5

DK150523-7200

SHIM¤ 0.94MM

|5

DK150523-7400

SHIM¤ 0.98MM

|5

DK150523-7500

SHIM¤ 1.00MM

6

DK150621-0400

NUT

7

6202-12-3890

GASKET (K1)

8

6202-12-3130

NOZZLE

9

6202-12-3830

GASKET,COVER (K1)

10

6202-12-3870

WASHER,NOZZLE

11

6202-12-3810

COVER,NOZZLE

12

6202-12-3850

GASKET,NOZZLE (K1)

13

6202-72-5810

TUBE,SPILL

14

07270-20455

TUBE,SPILL

|14

07270-20450

TUBE,SPILL

|14

07270-20455

TUBE,SPILL

|14

07270-20450

TUBE,SPILL

15

07285-00085

CLIP

|15

07285-00085

CLIP

16

07286-01010

TUBE

17

08036-10814

CLIP

18

600-815-1340

PLUG,GLOW

19

6202-82-4210

LEAD
