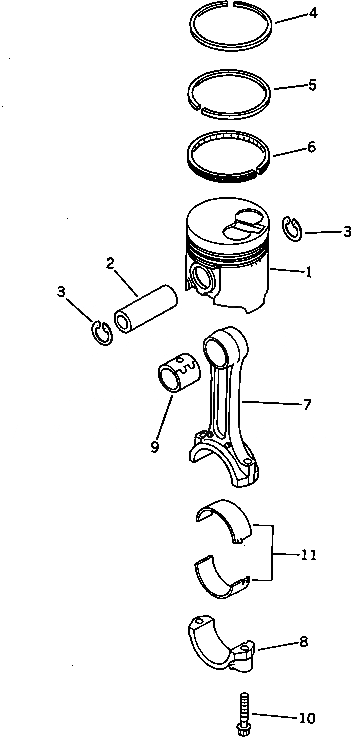

Запчасти Komatsu 4D95S-W-1G-S ПОРШЕНЬ И ШАТУН БЛОК ЦИЛИНДРОВ

|$$1

STANDARD

-1шт.

1

6202-32-2140

PISTON (S)

SN: 23318-UP

4шт.

|$$3

OVERSIZE 0.25MM

-1шт.

1

6202-39-2140

PISTON (S)

SN: 23318-UP

4шт.

|$$5

OVERSIZE 0.50MM

-1шт.

1

6202-38-2140

PISTON (S)

SN: 23318-UP

4шт.

2

6204-31-2410

PIN,PISTON

SN: 23318-UP

4шт.

3

04065-03012

RING,SNAP

SN: 23318-UP

8шт.

|$$9

STANDARD

-1шт.

|4

6202-32-2300

PISTON RING ASS'Y,PER CYLINDER

SN: 23318-UP

4шт.

4

0

RING,TOP

SN: 23318-UP

1шт.

5

0

RING,SECOND

SN: 23318-UP

1шт.

6

0

RING,OIL

SN: 23318-UP

1шт.

|$$14

OVERSIZE 0.25MM

-1шт.

|4

6202-39-2300

PISTON RING ASS'Y,PER CYLINDER

SN: 23318-UP

4шт.

4

0

RING,TOP

SN: 23318-UP

1шт.

5

0

RING,SECOND

SN: 23318-UP

1шт.

6

0

RING,OIL

SN: 23318-UP

1шт.

|$$19

OVERSIZE 0.50MM

-1шт.

|4

6202-38-2300

PISTON RING ASS'Y,PER CYLINDER

SN: 23318-UP

4шт.

4

0

RING,TOP

SN: 23318-UP

1шт.

5

0

RING,SECOND

SN: 23318-UP

1шт.

6

0

RING,OIL

SN: 23318-UP

1шт.

|7

6204-31-3100

CONNECTING ROD ASS'Y

SN: 23318-UP

4шт.

7

0

ROD,CONNECTING

SN: 23318-UP

1шт.

8

0

CAP

SN: 23318-UP

1шт.

9

6204-31-3130

BUSHING

SN: 23318-UP

1шт.

10

6204-31-3310

BOLT

SN: 23318-UP

2шт.

|$$29

STANDARD

-1шт.

11

6204-31-3400

CRANK PIN METAL A.

SN: 23318-UP

4шт.

|11

0

METAL

SN: 23318-UP

2шт.

|$$32

UNDERSIZE 0.25MM

-1шт.

11

6204-39-3400

CRANK PIN METAL A.

SN: 23318-UP

4шт.

|11

0

METAL

SN: 23318-UP

2шт.

|$$35

UNDERSIZE 0.50MM

-1шт.

11

6204-38-3400

CRANK PIN METAL A.

SN: 23318-UP

4шт.

|11

0

METAL

SN: 23318-UP

2шт.

|$$38

UNDERSIZE 0.75MM

-1шт.

11

6204-37-3400

CRANK PIN METAL A.

SN: 23318-UP

4шт.

|11

0

METAL

SN: 23318-UP

2шт.

|$$41

UNDERSIZE 1.00MM

-1шт.

11

6204-36-3400

CRANK PIN METAL A.

SN: 23318-UP

4шт.

|11

0

METAL

SN: 23318-UP

2шт.

1

6202-32-2140

PISTON (S)

1

6202-39-2140

PISTON (S)

1

6202-38-2140

PISTON (S)

2

6204-31-2410

PIN,PISTON

3

04065-03012

RING,SNAP

|4

6202-32-2300

PISTON RING ASS'Y,PER CYLINDER

4

RING,TOP

5

RING,SECOND

6

RING,OIL

|4

6202-39-2300

PISTON RING ASS'Y,PER CYLINDER

4

RING,TOP

5

RING,SECOND

6

RING,OIL

|4

6202-38-2300

PISTON RING ASS'Y,PER CYLINDER

4

RING,TOP

5

RING,SECOND

6

RING,OIL

|7

6204-31-3100

CONNECTING ROD ASS'Y

7

ROD,CONNECTING

8

CAP

9

6204-31-3130

BUSHING

10

6204-31-3310

BOLT

11

6204-31-3400

CRANK PIN METAL A.

|11

METAL

11

6204-39-3400

CRANK PIN METAL A.

|11

METAL

11

6204-38-3400

CRANK PIN METAL A.

|11

METAL

11

6204-37-3400

CRANK PIN METAL A.

|11

METAL

11

6204-36-3400

CRANK PIN METAL A.

|11

METAL
