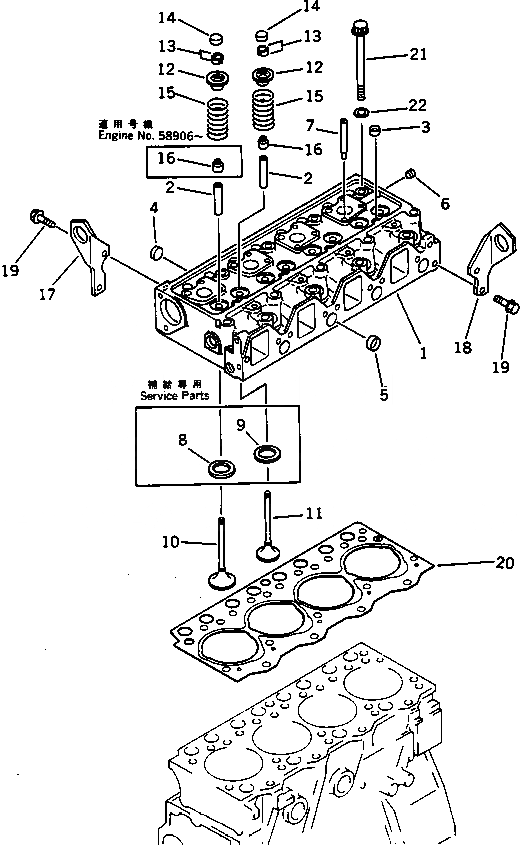

Запчасти Komatsu 4D95S-1D ГОЛОВКА ЦИЛИНДРОВ ГОЛОВКА ЦИЛИНДРОВ

|1

6204-13-1200

CYLINDER HEAD ASS'Y,VALVE LESS

SN: 40337-UP

1шт.

1

0

HEAD,CYLINDER

SN: 40337-UP

1шт.

2

6204-19-1310

GUIDE,VALVE

SN: 40337-UP

8шт.

3

07046-41810

PLUG

SN: 40337-UP

5шт.

4

07046-42216

PLUG

SN: 40337-UP

3шт.

5

07046-42516

PLUG

SN: 40337-UP

12шт.

6

02720-40104

PLUG

SN: 40337-UP

1шт.

7

6204-11-8910

PIPE,BREATHER

SN: 40337-UP

2шт.

8

6207-11-1430

SEAT,INTAKE VALVE (SERVICE PARTS) (STD)

SN: 40337-UP

4шт.

|8

6207-19-1430

SEAT¤ 0.25MM,INTAKE VALVE (SERVICE PARTS) (OS)

SN: 40337-UP

4шт.

|8

6207-18-1430

SEAT¤ 0.50MM,INTAKE VALVE (SERVICE PARTS) (OS)

SN: 40337-UP

4шт.

9

6204-11-1440

SEAT,EXHAUST VALVE (SERVICE PARTS) (STD)

SN: 40337-UP

4шт.

|9

6204-19-1440

SEAT¤ 0.25MM,EXHAUST VALVE (SERVICE PARTS) (OS)

SN: 40337-UP

4шт.

|9

6204-18-1440

SEAT¤ 0.50MM,EXHAUST VALVE (SERVICE PARTS) (OS)

SN: 40337-UP

4шт.

10

6207-41-4110

VALVE,INTAKE

SN: 40337-UP

4шт.

11

6204-43-4210

VALVE,EXHAUST

SN: 40337-UP

4шт.

12

6204-41-4510

SEAT,SPRING

SN: 40337-UP

8шт.

13

6204-41-4520

COTTER

SN: 40337-UP

16шт.

14

6204-41-4550

CAP,VALVE

SN: 40337-UP

8шт.

15

6204-41-4410

SPRING,VALVE

SN: 40337-UP

8шт.

16

6204-41-4540

SEAL,VALVE (K1)

SN: 58906-UP

8шт.

|16

6204-41-4540

SEAL,VALVE (K1)

SN: 40337-58905

4шт.

17

6202-13-1930

HANGER,FRONT

SN: 40337-UP

1шт.

18

6202-13-1920

HANGER,REAR

SN: 40337-UP

1шт.

19

01435-01016

BOLT

SN: 40337-UP

4шт.

20

6205-11-1813

GASKET,HEAD (K1)

SN: 40337-UP

1шт.

|20

0

GASKET,HEAD (K1)

SN: (40337-89333)

1шт.

21

6204-13-1610

BOLT,HEAD

SN: 40337-UP

17шт.

22

01643-51232

WASHER

SN: 40337-UP

17шт.
