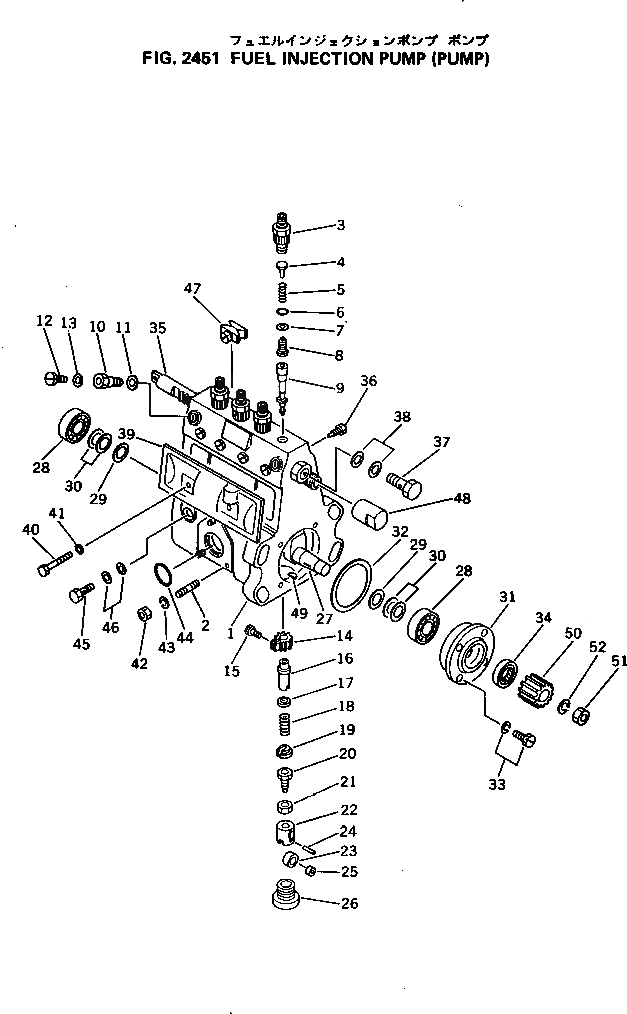

Запчасти Komatsu 4D105-5K ТОПЛ. НАСОС (НАСОС) ТОПЛИВН. СИСТЕМА

|1

6134-72-1210

INJECTION PUMP ASS'Y

SN: 150001-UP

1шт.

|1

ND090100-4980

BODY ASS'Y

SN: 150001-UP

1шт.

1

ND190110-2920

HOUSING

SN: 150001-UP

1шт.

2

ND949043-0010

STUD

SN: 150001-UP

3шт.

3

ND090131-0250

HOLDER,DELIVERY VALVE

SN: 150001-UP

4шт.

4

ND090133-0010

STOPPER

SN: 150001-UP

4шт.

5

ND090136-0670

SPRING

SN: 150001-UP

4шт.

6

ND90801-10180

O-RING

SN: 150001-UP

4шт.

7

ND090137-0051

GASKET

SN: 150001-UP

4шт.

8

ND090140-1180

VALVE,DELIVERY

SN: 150001-UP

4шт.

9

ND090150-2920

ELEMENT

SN: 150001-UP

4шт.

|10

ND090240-0010

AIR BLEEDER ASS'Y

SN: 150001-UP

2шт.

10

ND090242-0010

NIPPLE

SN: 150001-UP

1шт.

11

ND090241-0010

WASHER¤ 1.6MM

SN: 150001-UP

1шт.

12

ND090244-0010

SCREW

SN: 150001-UP

1шт.

13

ND090243-0030

WASHER

SN: 150001-UP

1шт.

14

ND090156-0010

PINION,PLUNGER

SN: 150001-UP

4шт.

15

ND090157-0010

SCREW

SN: 150001-UP

4шт.

16

ND090161-0160

SLEEVE

SN: 150001-UP

4шт.

17

ND090163-0010

SEAT,UPPER

SN: 150001-UP

4шт.

18

ND090164-0150

SPRING

SN: 150001-UP

4шт.

19

ND090165-0010

SEAT,LOWER

SN: 150001-UP

4шт.

|20

ND090170-0130

TAPPET ASS'Y

SN: 150001-UP

4шт.

20

ND090173-0010

BOLT

SN: 150001-UP

1шт.

21

ND090174-0010

NUT

SN: 150001-UP

1шт.

22

ND090169-0130

BODY

SN: 150001-UP

1шт.

23

ND090181-0030

ROLLER

SN: 150001-UP

1шт.

24

ND090176-0010

PIN,ROLLER

SN: 150001-UP

1шт.

25

ND090178-0030

BUSHING

SN: 150001-UP

1шт.

26

ND090189-0060

PLUG

SN: 150001-UP

4шт.

27

ND090191-0720

CAMSHAFT

SN: 150001-UP

1шт.

28

ND949101-0120

BEARING

SN: 150001-UP

2шт.

29

ND090193-0020

RING

SN: 150001-UP

2шт.

30

ND090194-0010

SHIM¤ 0.10MM

SN: 150001-UP

-2шт.

|30

ND090194-0020

SHIM¤ 0.12MM

SN: 150001-UP

-2шт.

|30

ND090194-0030

SHIM¤ 0.14MM

SN: 150001-UP

-2шт.

|30

ND090194-0040

SHIM¤ 0.16MM

SN: 150001-UP

-2шт.

|30

ND090194-0050

SHIM¤ 0.18MM

SN: 150001-UP

-2шт.

|30

ND090194-0060

SHIM¤ 0.50MM

SN: 150001-UP

-2шт.

|30

ND090194-0140

SHIM¤ 1.0MM

SN: 150001-UP

-2шт.

|30

ND090194-0150

SHIM¤ 1.5MM

SN: 150001-UP

-2шт.

31

ND090201-0341

COVER

SN: 150001-UP

1шт.

32

ND090206-0010

GASKET

SN: 150001-UP

1шт.

33

ND949047-1360

BOLT

SN: 150001-UP

4шт.

34

ND100150-0930

SEAL,OIL

SN: 150001-UP

1шт.

35

ND090212-0110

RACK,CONTROL

SN: 150001-UP

1шт.

36

ND090215-0010

SCREW

SN: 150001-UP

1шт.

37

ND949180-0310

SCREW

SN: 150001-UP

1шт.

38

ND090222-0070

WASHER

SN: 150001-UP

2шт.

|39

ND090270-0961

COVER ASS'Y

SN: 150001-UP

1шт.

39

ND090260-0230

COVER

SN: 150001-UP

1шт.

40

ND090276-0020

SCREW

SN: 150001-UP

2шт.

41

ND090243-0030

WASHER

SN: 150001-UP

2шт.

42

ND90160-06051

NUT

SN: 150001-UP

3шт.

43

ND90258-06001

WASHER,SPRING

SN: 150001-UP

3шт.

44

ND949140-0380

O-RING

SN: 150001-UP

1шт.

45

ND949180-0060

SCREW

SN: 150001-UP

1шт.

46

ND090222-0120

WASHER

SN: 150001-UP

2шт.

47

ND090230-0031

PLATE,LOCK

SN: 150001-UP

2шт.

48

ND090018-0140

COVER

SN: 150001-UP

1шт.

49

ND949130-0050

KEY

SN: 150001-UP

1шт.

50

ND092575-0100

SHAFT

SN: 150001-UP

1шт.

51

ND949050-2450

NUT

SN: 150001-UP

1шт.

52

ND949015-0500

WASHER¤ 2.5MM,SPRING

SN: 150001-UP

1шт.
