Запчасти Komatsu 2D94-2E КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

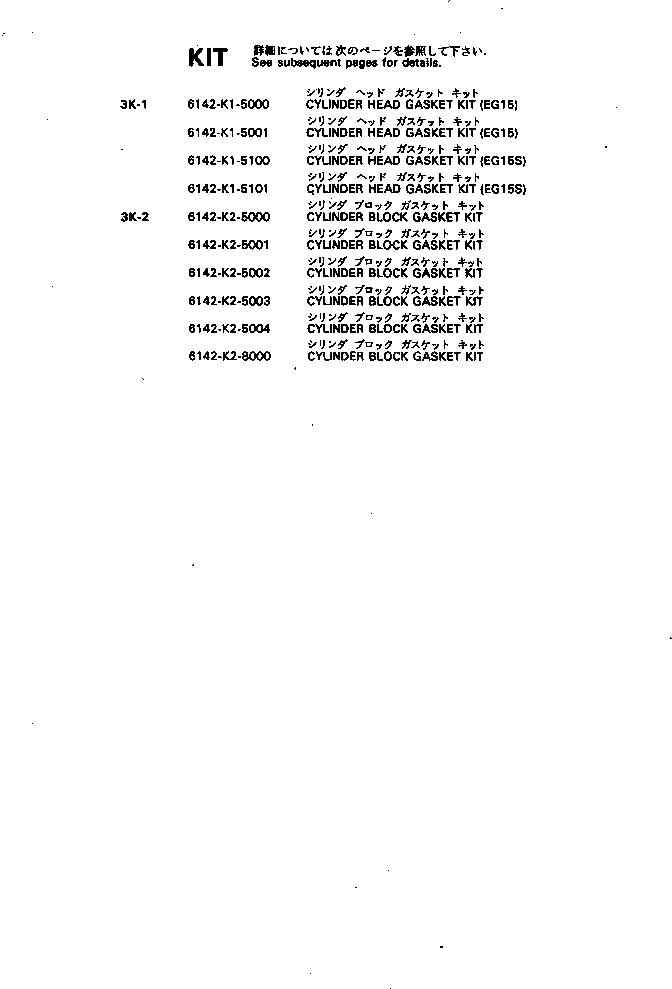

Схема запчастей Komatsu 2D94-2E - КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

6142-K1-5001

GASKET KIT,CYLINDER HEAD

SN: 20000-20000

1шт.

1

0

GASKET KIT,CYLINDER HEAD

SN: (20000-20000)

1шт.

1

6142-K1-5101

GASKET KIT,CYLINDER HEAD

SN: 20004-UP

1шт.

1

0

GASKET KIT,CYLINDER HEAD

SN: (20004-.)

1шт.

1

6140-41-4540

SEAL,VALVE

SN: 20004-UP

4шт.

1

6142-12-1810

GASKET,HEAD

SN: 20004-UP

1шт.

1

6142-12-8810

O-RING,HEAD COVER

SN: 20004-UP

1шт.

1

07005-01012

GASKET,HEAD COVER NUT

SN: 20004-UP

2шт.

1

07000-03048

O-RING,OIL FILLER

SN: 20004-UP

1шт.

1

6142-11-4810

GASKET,INTAKE MANIFOLD

SN: 20004-UP

1шт.

1

6142-11-5810

GASKET,EXHAUST MANIFOLD

SN: 20004-UP

1шт.

1

6140-81-7310

GASKET,AIR CLEANER

SN: 20004-UP

1шт.

1

6142-11-5820

GASKET,MUFFLER

SN: 20004-UP

1шт.

1

6130-12-5580

GASKET,MUFFLER

SN: 20004-UP

1шт.

1

07005-00812

GASKET,NOZZLE HOLDER

SN: 20004-UP

4шт.

1

6142-11-7811

GASKET,FUEL NOZZLE

SN: 20004-UP

2шт.

1

0

GASKET,FUEL NOZZLE

SN: (20004-.)

2шт.

1

6140-11-6331

GASKET,WATER OUTLET SOCKET

SN: 20004-UP

1шт.

1

6140-11-6430

GASKET,THERMOSTAT HOUSING

SN: 20004-UP

1шт.

1

6140-11-6442

GASKET,THERMOSTAT HOUSING

SN: 20004-UP

1шт.

2

6142-K2-8100

GASKET KIT,CYLINDER BLOCK

SN: 30039-UP

1шт.

2

6142-K2-5004

GASKET KIT,CYLINDER BLOCK

SN: 25391-30038

1шт.

2

6142-K2-5003

GASKET KIT,CYLINDER BLOCK

SN: 23394-25390

1шт.

2

6142-K2-5002

GASKET KIT,CYLINDER BLOCK

SN: 22336-23393

1шт.

2

6142-K2-5001

GASKET KIT,CYLINDER BLOCK

SN: 20118-22335

1шт.

2

6142-K2-5000

GASKET KIT,CYLINDER BLOCK

SN: 20004-20117

1шт.

2

6140-51-6330

O-RING,INSERT

SN: 20004-UP

1шт.

2

6141-61-6830

GASKET,COVER

SN: 20004-UP

1шт.

2

6142-21-2221

O-RING,CYLINDER LINER

SN: 20004-UP

2шт.

2

6142-21-2230

O-RING,CYLINDER LINER

SN: 20004-UP

2шт.

2

6132-11-4820

GASKET,OIL FILLER

SN: 30039-UP

1шт.

2

6140-21-5381

GASKET,OIL GAUGE GUIDE

SN: 20004-30038

1шт.

2

6142-22-3811

GASKET,FRONT PLATE

SN: 20004-UP

1шт.

2

6142-22-3820

GASKET,GEAR COVER

SN: 20004-UP

1шт.

2

07000-03050

O-RING,GEAR COVER

SN: 20118-UP

1шт.

2

6142-82-5180

GASKET,GEAR COVER

SN: 20004-20117

1шт.

2

6142-22-3530

SEAL, FRONT

SN: 20004-UP

1шт.

2

07000-02008

O-RING,OIL PAN DRAIN

SN: 20004-UP

1шт.

2

6142-22-5811

GASKET,OIL PAN

SN: 20004-UP

1шт.

2

6142-22-4810

GASKET,FLYWHEEL HOUSING

SN: 20004-UP

1шт.

2

6142-22-4231

SEAL, REAR

SN: 20004-UP

1шт.

2

6141-31-1360

PLATE,LOCK, FLYWHEEL

SN: 20004-25390

3шт.

2

6142-52-6180

GASKET,OIL STRAINER

SN: 20004-UP

1шт.

2

6140-51-6330

O-RING,OIL PIPE

SN: 20004-UP

1шт.

2

600-211-7332

WASHER,SEAL, OIL FILTER RELIEF VALVE

SN: 20004-UP

1шт.

2

6142-52-5810

GASKET,OIL FILTER

SN: 20004-UP

1шт.

2

6140-71-1151

GASKET,INJECTION PUMP

SN: 23394-UP

1шт.

2

6140-71-1160

GASKET,INJECTION PUMP

SN: 20004-23393

1шт.

2

07000-02135

O-RING,INJECTION PUMP

SN: 20004-UP

1шт.

2

01653-21212

WASHER,LOCK, INJECTION PUMP

SN: 20004-UP

1шт.

2

07005-00812

GASKET,INJECTION PUMP BOLT

SN: 20004-22335

1шт.

2

6130-61-1521

SEAL, WATER

SN: 20004-UP

1шт.

2

6140-61-1160

O-RING,WATER PUMP

SN: 20004-UP

1шт.

2

6140-61-1810

GASKET,WATER PUMP

SN: 20004-UP

2шт.

2

6140-61-1820

GASKET,WATER PUMP

SN: 20004-UP

4шт.

Выбрано товаров: 55
