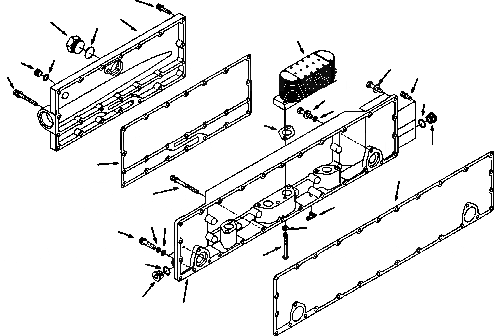

Запчасти Komatsu 210M QSK19 Engine LUBE МАСЛООХЛАДИТЕЛЬ СИСТЕМА СМАЗКИ МАСЛ. СИСТЕМА

1

1307 839 H1

BOLT (3/8 - 24x3.50 INCH)

8шт.

2

120 382

WASHER, LOCK (3/8 INCH)

4шт.

3

1238 127 H1

DRAINCOCK (1/4 NPTF)

1шт.

4

1238 237 H1

WASHER, PLAIN

6шт.

5

1238 328 H1

SEAL, O-RING

1шт.

6

1241 309 H1

BOLT (3/8 - 16x1.75 INCH)

4шт.

7

1241 313 H1

PLUG, THREADED (1 3/4 - 18 THD)

1шт.

8

1239 273 H1

BOLT (3/8 - 16x3.50 INCH)

2шт.

9

1241 336 H1

BOLT (3/8 - 16x1.625 INCH)

2шт.

10

1239 759 H1

BOLT (3/8 - 16x1.25 INCH)

10шт.

11

1267 715 H1

WASHER, PLAIN

8шт.

12

1241 342 H1

BOLT (3/8 - 16x1.87 INCH)

7шт.

13

1239 776 H1

BOLT (3/8 - 16x4 INCH)

14шт.

14

1307 840 H1

HOUSING, OIL COOLER

1шт.

15

1307 841 H1

CORE, COOLER

2шт.

16

1307 842 H1

COVER, LUBE OIL COOLER

1шт.

17

1307 843 H1

GASKET, OIL COOLER CORE

4шт.

18

1307 844 H1

GASKET, TOR CNV OIL COOLER

1шт.

19

1307 845 H1

GASKET, LUBE OIL CLR HSG

1шт.

|$19

1239 934 H91

PLUG, THREADED

2шт.

20

1241 503 H1

SEAL, O-RING

2шт.

21

1296 090 H1

PLUG, THREADED

2шт.

|$22

1246 118 H91

PLUG, THREADED

1шт.

22

1246 119 H1

SEAL, O-RING

1шт.

23

1246 120 H1

PLUG, THREADED

1шт.
