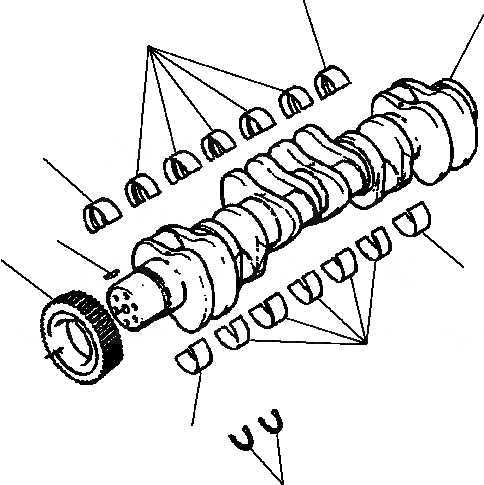

Запчасти Komatsu 210M QSK19 Engine КОЛЕНВАЛ & ОСНОВН. ПОДШИПНИКS БЛОК ЦИЛИНДРОВ

|$0

1307 729 H91

CRANKSHAFT

1шт.

1

NSS

CRANKSHAFT

1шт.

2

1307 730 H1

GEAR, CRANKSHAFT

1шт.

3

1238 769 H1

KEY, WOODRUFF

1шт.

|$4

1237 924 H91

SHELL, MAIN BEARING (STD)

1шт.

4

1238 673 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - UPPER)

5шт.

5

1238 677 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - LOWER)

5шт.

6

1238 682 H1

BEARING, MAIN (# 1 & 7 - LOWER)

2шт.

7

1238 688 H1

BEARING, MAIN (# 1 & 7 - UPPER)

2шт.

9

1238 666 H1

BEARING, THRUST

4шт.

|$10

1237 925 H91

SHELL, MAIN BEARING (.010 INCH OVERSIZE)

-2шт.

4

1238 674 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - UPPER)

-2шт.

5

1238 678 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - LOWER)

-2шт.

6

1238 683 H1

BEARING, MAIN (# 1 & 7 - LOWER)

-2шт.

7

1238 689 H1

BEARING, MAIN (# 1 & 7 - UPPER)

-2шт.

9

1238 666 H1

BEARING, THRUST

-2шт.

|$16

1237 926 H91

SHELL, MAIN BEARING (.020 INCH OVERSIZE)

-2шт.

4

1238 675 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - UPPER)

-2шт.

5

1238 679 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - LOWER)

-2шт.

6

1238 684 H1

BEARING, MAIN (# 1 & 7 - LOWER)

-2шт.

7

1238 690 H1

BEARING, MAIN (# 1 & 7 - UPPER)

-2шт.

9

1238 666 H1

BEARING, THRUST

-2шт.

|$22

1237 927 H91

SHELL, MAIN BEARING (.030 INCH OVERSIZE)

-2шт.

4

1238 676 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - UPPER)

-2шт.

5

1238 680 H1

BEARING, MAIN (# 2, 3, 4, 5 & 6 - LOWER)

-2шт.

6

1238 685 H1

BEARING, MAIN (# 1 & 7 - LOWER)

-2шт.

7

1238 691 H1

BEARING, MAIN (# 1 & 7 - UPPER)

-2шт.

9

1238 666 H1

BEARING, THRUST

-2шт.

|$$29

-1шт.

|$29

THRUST RINGS - OVERSIZE

-1шт.

9

1241 588 H1

BEARING, THRUST (.010 INCH OVERSIZE)

-2шт.

9

1238 999 H1

BEARING, THRUST (.020 INCH OVERSIZE)

-2шт.

|$$33

-1шт.

|$33

R1 - REMANUFACTURED ASSEMBLY AVAILABLE; REFER TO REMANUFACTURED

-1шт.

|$34

ASSEMBLIES CATALOG.

-1шт.
