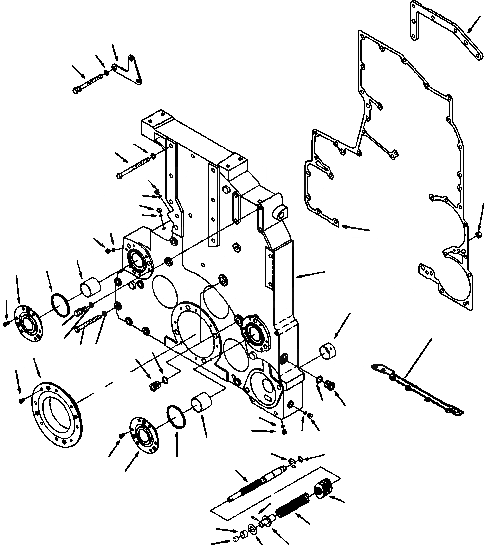

Запчасти Komatsu 210M QSK19 Engine ПРИВОД КРЫШКА/ КОЖУХ БЛОК ЦИЛИНДРОВ

1

1237 993 H1

BOLT (3/8 - 16 x 3 1/2 INCH)

8шт.

2

1238 059 H1

BOLT (3/8 - 16 x 4 1/2 INCH)

5шт.

3

1238 237 H1

WASHER, PLAIN

1шт.

4

140 483 H

BOLT (3/8 - 16 x 1 INCH)

3шт.

5

1239 776 H1

BOLT (3/8 - 16 x 4 INCH)

3шт.

6

1307 829 H1

BRACE, TUBE

1шт.

7

1307 830 H2

SEAL, OIL

1шт.

8

1307 831 H1

SEAL, OIL

2шт.

10

1307 832 H1

SEAL, O-RING

2шт.

11

1307 833 H1

SCREW, ROUND HEAD CAP

14шт.

12

1307 834 H1

PLATE, CLAMPING

1шт.

13

1307 835 H1

GASKET, GEAR COVER

1шт.

14

118 406

BUSHING

2шт.

15

1238 671 H1

BUSHING

1шт.

16

1239 184 H1

SPRING, ENGINE BARRING

1шт.

17

1239 336 H1

RING, RETAINING

1шт.

|$16

1239 413 H91

GUIDE, BARRING SHAFT

1шт.

18

1239 410 H1

BUSHING

1шт.

19

1239 411 H1

BEARING, THRUST

1шт.

20

1239 412 H1

PIN, ROLL

1шт.

21

1239 417 H1

GUIDE, BARRING SHAFT

1шт.

22

1239 415 H1

GEAR, ENGINE BARRING

1шт.

23

1239 416 H1

SHAFT, BARRING

1шт.

24

1241 358 H1

PLUG, DRIVE

1шт.

|$24

1307 836 H91

COVER, GEAR

1шт.

|$25

1246 131 H91

PLUG, THREADED

3шт.

25

1246 132 H1

PLUG, THREADED

1шт.

26

1240 473 H1

SEAL, O-RING

1шт.

|$28

1295 576 H91

PLUG, THREADED

5шт.

27

1239 669 H1

SEAL, O-RING

1шт.

28

1310 097 H1

PLUG, THREADED

1шт.

29

NSS

COVER, GEAR

1шт.

30

1239 901 H1

SEAL, O-RING

1шт.

31

1239 902 H1

NUT, REGULAR HEXAGON

4шт.

32

1310 478 H1

GASKET, OIL PAN ADAPTER

1шт.
