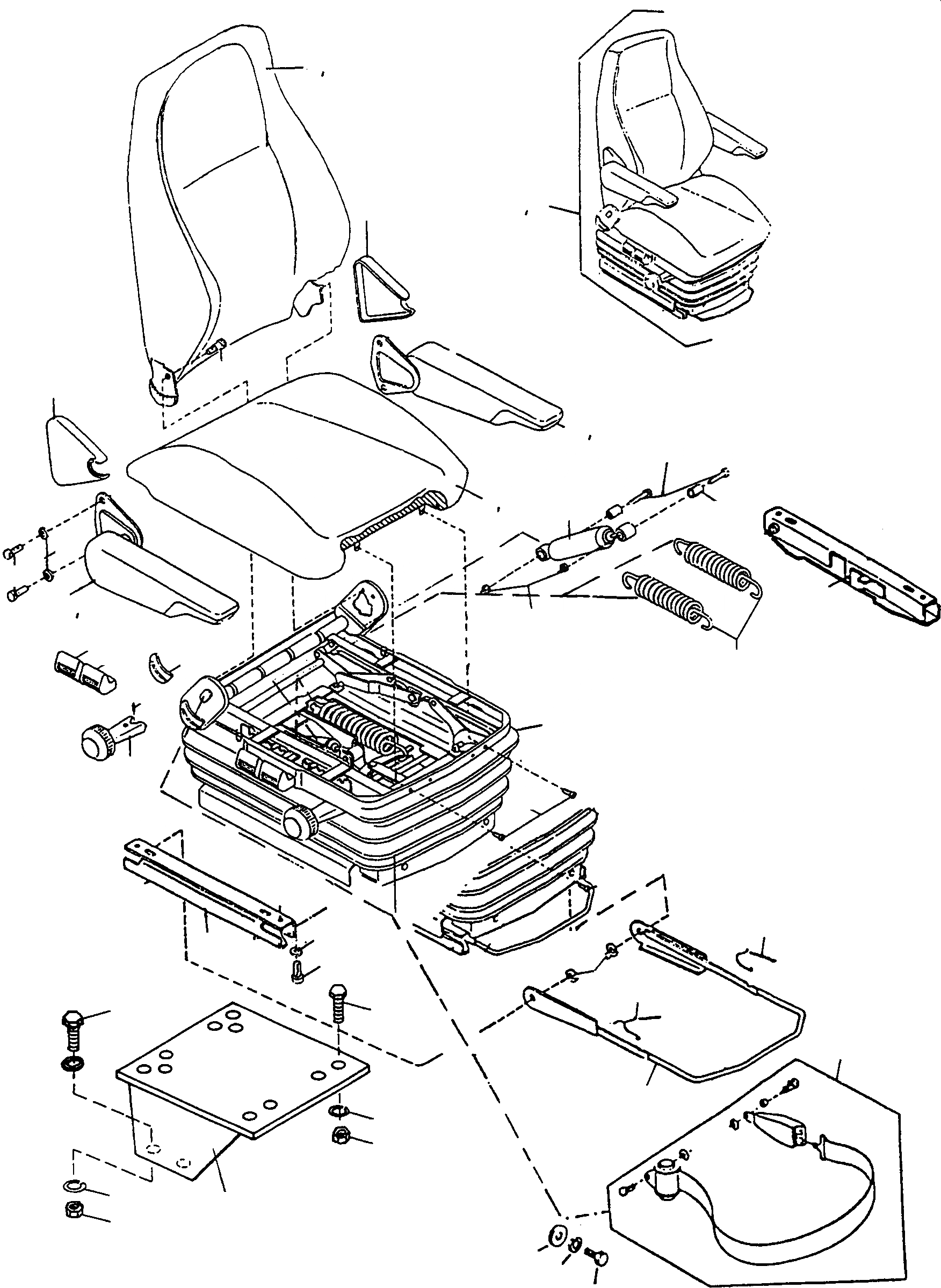

Запчасти Komatsu L600D Super ПРИВОДRS СИДЕНЬЕ ПРИВОДRS СИДЕНЬЕ, ATTACHING ЧАСТИ

1

4101938M91

SEAT

DeutschDesc: SITZ

1шт.

2

4101939M91

SEAT

EnglischBem: WATER PROTECTED

1шт.

3

3252484M91

BACK REST

DeutschDesc: RUECKENLEHNE

1шт.

4

3252498M91

BACK REST

EnglischBem: WATER PROTECTED

1шт.

5

4908568M91

SEAT CUSHION

DeutschDesc: SITZKISSEN

1шт.

6

3252499M91

SEAT CUSHION

EnglischBem: WATER PROTECTED

1шт.

7

4909918M91

BOTTOM PART

EnglischBem: NOTE: Pos. (7) included in Pos. (1) and (2) Kit

1шт.

8

3005720X1

SCREW

EnglischBem: NOTE: Pos. (8) included in Pos. (1) and (2) Kit

2шт.

9

339124X1

SCREW

EnglischBem: NOTE: Pos. (9) included in Pos. (1) and (2) Kit

2шт.

10

3252487M1

COVERING

EnglischBem: NOTE: Pos. (10) included in Pos. (1) and (2) Kit

2шт.

11

339123X1

SCREW

EnglischBem: NOTE: Pos. (11) included in Pos. (1) and (2) Kit

8шт.

12

2993792X1

SPRING WASHER

EnglischBem: NOTE: Pos. (12) included in Pos. (1) and (2) Kit

10шт.

13

NOT USED

DeutschDesc: NICHT VERWENDET

-1шт.

14

NOT USED

DeutschDesc: NICHT VERWENDET

-1шт.

15

NOT USED

DeutschDesc: NICHT VERWENDET

-1шт.

16

NOT USED

DeutschDesc: NICHT VERWENDET

-1шт.

17

3252490M1

GRIP

EnglischBem: NOTE: Pos. (17) included in Pos. (1) and (2) Kit

1шт.

18

3252491M1

GRIP

EnglischBem: NOTE: Pos. (18) included in Pos. (1) and (2) Kit

1шт.

19

3252492M1

GRIP

EnglischBem: NOTE: Pos. (19) included in Pos. (1) and (2) Kit

1шт.

20

3252493M91

GRIP

EnglischBem: NOTE: Pos. (20) included in Pos. (1) and (2) Kit

1шт.

21

391566X1

SLEEVE

EnglischBem: NOTE: Pos. (21) included in Pos. (1) and (2) Kit

1шт.

22

4909919M91

DAMPER

EnglischBem: NOTE: Pos. (22) included in Pos. (1) and (2) Kit

1шт.

23

339010X1

SCREW

EnglischBem: NOTE: Pos. (23) included in Pos. (1) and (2) Kit

2шт.

24

3252478M1

TUBE

EnglischBem: NOTE: Pos. (24) included in Pos. (1) and (2) Kit

2шт.

25

1444329X1

NUT

EnglischBem: NOTE: Pos. (25) included in Pos. (1) and (2) Kit

2шт.

26

3252479M1

TENSION SPRING

EnglischBem: NOTE: Pos. (26) included in Pos. (1) and (2) Kit

2шт.

27

4909913M91

RAIL

EnglischBem: NOTE: Pos. (27) included in Pos. (1) and (2) Kit

1шт.

28

4909912M91

RAIL

EnglischBem: NOTE: Pos. (28) included in Pos. (1) and (2) Kit

1шт.

29

1442324X1

SCREW

EnglischBem: NOTE: Pos. (29) included in Pos. (1) and (2) Kit

4шт.

30

4909920M1

STIRRUP

EnglischBem: NOTE: Pos. (30) included in Pos. (1) and (2) Kit

1шт.

31

4909915M1

SPRING

EnglischBem: NOTE: Pos. (31) included in Pos. (1) and (2) Kit

1шт.

32

4909916M1

SPRING

EnglischBem: NOTE: Pos. (32) included in Pos. (1) and (2) Kit

1шт.

33

3008354X1

SAFETY CATCH

EnglischBem: NOTE: Pos. (33) included in Pos. (1) and (2) Kit

2шт.

34

4202972M91

SAFETY BELT

EnglischBem: NOTE: Pos. (34) included in Pos. (1) and (2) Kit

1шт.

35

339168X1

SCREW

DeutschDesc: SCHRAUBE

4шт.

36

3073369M1

DISC

DeutschDesc: SCHEIBE

8шт.

37

CONSOLE

DeutschDesc: KONSOLE

1шт.

|$39

CONSOLE

DeutschDesc: KONSOLE

-3шт.

38

339169X1

NUT

DeutschDesc: MUTTER

4шт.
