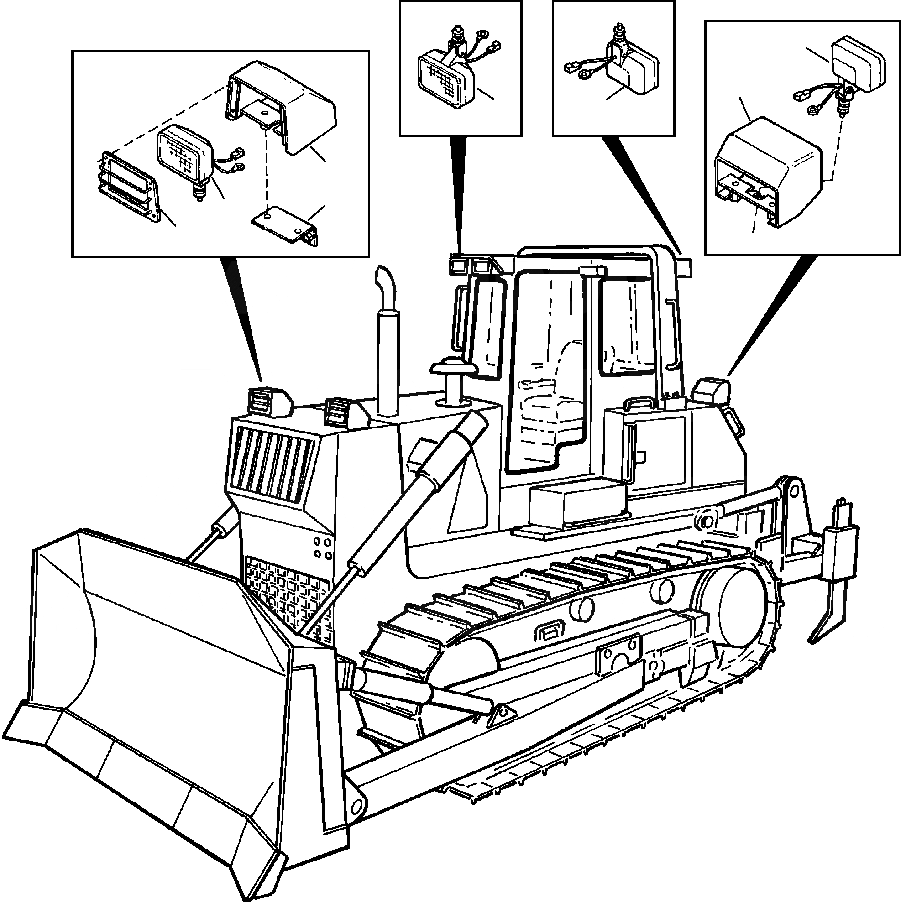

Запчасти Komatsu D87P-2 FIG. E-A LIGHTS И КРЕПЛЕНИЕ - КАБИНА ЭЛЕКТРИКА

|$0

1500 424 H91

LIGHTS, TRACTOR

SN: Ser Num-UP

1шт.

1

14X-06-11120

HEADLAMP

SN: Ser Num-UP

3шт.

|$2

180 116

BOLT, MOUNTING - 3/8NCx1/2

SN: Ser Num-UP

3шт.

|$3

25 534 R1

WASHER, FLAT - 3/8

SN: Ser Num-UP

3шт.

2

1315 065 H91

COVER, FRONT LIGHT

SN: Ser Num-UP

2шт.

|$5

24 866 R1

BOLT, MOUNTING - 1/2NCx2-1/2

SN: Ser Num-UP

4шт.

|$6

25 546 R1

WASHER, FLAT - 1/2

SN: Ser Num-UP

4шт.

3

1315 043 H91

BRACKET, LIGHT MOUNTING

SN: Ser Num-UP

2шт.

|$8

25 285 R1

BOLT, MOUNTING - 1/2NCx3-1/4

SN: Ser Num-UP

4шт.

|$9

25 546 R1

WASHER, FLAT - 1/2

SN: Ser Num-UP

4шт.

4

1315 044 H91

PLATE

SN: Ser Num-UP

2шт.

|$11

25 222 R1

BOLT, MOUNTING - 1/4NCx3/4

SN: Ser Num-UP

8шт.

|$12

25 542 R1

WASHER, FLAT - 1/4

SN: Ser Num-UP

8шт.

5

1500 671 H91

GUARD, REAR LAMP

SN: Ser Num-UP

1шт.

|$14

25 285 R1

BOLT, MOUNTING - 1/2NCx3-1/4

SN: Ser Num-UP

2шт.

|$15

26 273 R1

WASHER, FLAT - 1/2

SN: Ser Num-UP

4шт.

|$16

25 933 R1

NUT, HEX - 1/2NC

SN: Ser Num-UP

2шт.

|$17

1500 471 H91

LIGHTS, CAB

SN: Ser Num-UP

1шт.

6

14X-06-11120

HEADLAMP

SN: Ser Num-UP

4шт.

|$19

180 116

BOLT, MOUNTING - 3/8NCx1/2

SN: Ser Num-UP

4шт.

|$20

25 534 R1

WASHER, FLAT - 3/8

SN: Ser Num-UP

4шт.

N/I

1500 951 H91

HARNESS, CAB LIGHTS

SN: Ser Num-UP

4шт.

N/I

1500 879 H1

PANEL

SN: Ser Num-UP

1шт.

|$23

25 222 R1

BOLT, MOUNTING - 1/4NCx3/4

SN: Ser Num-UP

4шт.

|$24

25 542 R1

WASHER, FLAT - 1/4

SN: Ser Num-UP

4шт.

|$25

-1шт.

|$26

F1 PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$27

-1шт.
