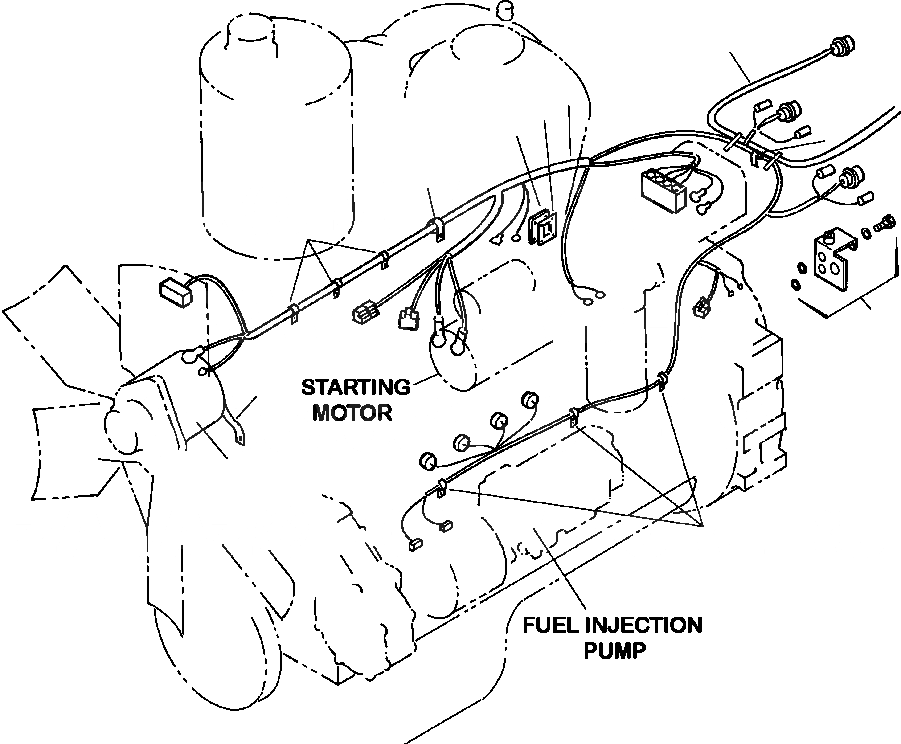

Запчасти Komatsu D87E-2 FIG. B-A Э/ПРОВОДКА ДВИГАТЕЛЯ КОМПОНЕНТЫ ДВИГАТЕЛЯ

1

362 121 R1

CLIP

SN: P090001-UP

1шт.

2

267 788 R1

CLIP

SN: P090001-UP

3шт.

3

ALTERNATOR (50A) (SEE FIG. A6010-B3S4)

SN: P090001-UP

1шт.

4

1315 326 H1

COVER

SN: P090001-UP

1шт.

5

6210-21-1971

GASKET

SN: P090001-UP

1шт.

6

622 963 C1

CLIP

SN: P090001-UP

1шт.

7

1500 809 H1

ELEMENT, STRAP TIE

SN: P090001-UP

1шт.

|$7

935 522 C1

STRAP, TIE

SN: P090001-UP

1шт.

8

1500 329 H91

HARNESS, ENGINE

SN: P090001-UP

1шт.

9

1500 810 H91

BRACKET, CONNECTOR MOUNTING

SN: P090001-UP

1шт.

|$10

24 838 R1

BOLT, MOUNTING - 3/8NCx1/2

SN: P090001-UP

3шт.

|$11

25 534 R1

WASHER, HARD - 3/8

SN: P090001-UP

3шт.

|$12

63 323 D

GROMMET

SN: P090001-UP

2шт.

10

363 444 R1

CLAMP

SN: P090001-UP

3шт.

11

HARNESS (SEE FIG. E0200-02A0)

SN: P090001-UP

1шт.
