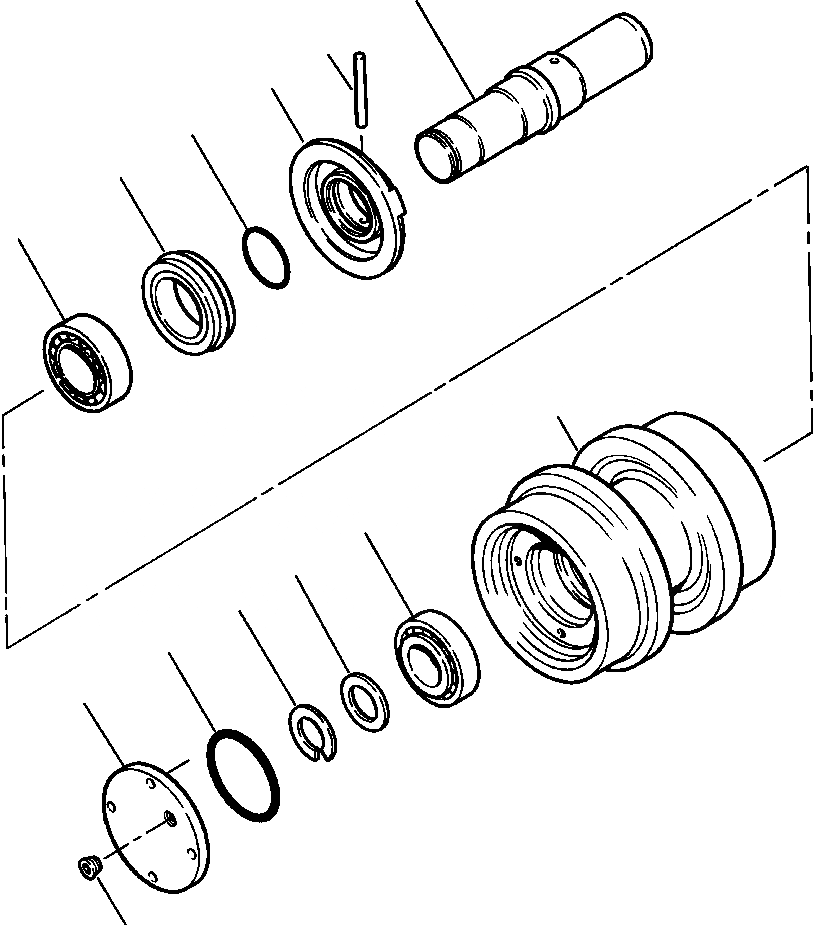

Запчасти Komatsu D87E-2 FIG. R-A ВЕРХН. ЛЕНИВЕЦ ХОДОВАЯ

|$0

636 878 C91

IDLER ASSEMBLY, TOP

SN: P090001-UP

4шт.

1

636 879 C1

BODY, IDLER

SN: P090001-UP

1шт.

2

636 880 C1

SHAFT, IDLER

SN: P090001-UP

1шт.

3

1298 001 H91

BEARING, TAPERED ROLLER

SN: P090001-UP

1шт.

|$5

OR

-1шт.

|$7

625 741 C91

BEARING ASSEMBLY, TAPERED ROLLER

SN: P090001-UP

1шт.

|$8

625 742 C91

CONE, BEARING

SN: P090001-UP

1шт.

|$9

625 743 C1

CUP, BEARING

SN: P090001-UP

1шт.

4

1298 009 H91

BEARING, TAPERED ROLLER

SN: P090001-UP

1шт.

|$12

OR

-1шт.

|$14

631 169 C91

BEARING ASSEMBLY, TAPERED ROLLER

SN: P090001-UP

1шт.

|$15

631 170 C91

CONE, BEARING

SN: P090001-UP

1шт.

|$16

376 463 R1

CUP, BEARING

SN: P090001-UP

1шт.

5

327 068 R1

RING, RETAINING

SN: P090001-UP

1шт.

6

636 885 C1

SPACER, BEARING - 0.088IN

SN: P090001-UP

1шт.

|$19

636 886 C1

SPACER, BEARING - 0.091IN

SN: P090001-UP

1шт.

|$20

636 887 C1

SPACER, BEARING - 0.094IN

SN: P090001-UP

1шт.

7

317 923 R1

SEAL, RING

SN: P090001-UP

1шт.

8

636 884 C1

COVER, IDLER

SN: P090001-UP

1шт.

|$23

24 840 R1

BOLT, HEX - 3/8NCx1

SN: P090001-UP

4шт.

|$24

115 093

WASHER, LOCK - 3/8

SN: P090001-UP

4шт.

9

444 660

PLUG, DRAIN

SN: P090001-UP

1шт.

10

1208 549 H92

KIT, METAL FACED SEAL

SN: P090001-UP

1шт.

11

636 881 C2

RETAINER, SEAL

SN: P090001-UP

1шт.

12

25 566 R1

PIN, SPRING - 1/4x3

SN: P090001-UP

1шт.

13

384 377 R1

SEAL, RING

SN: P090001-UP

1шт.
