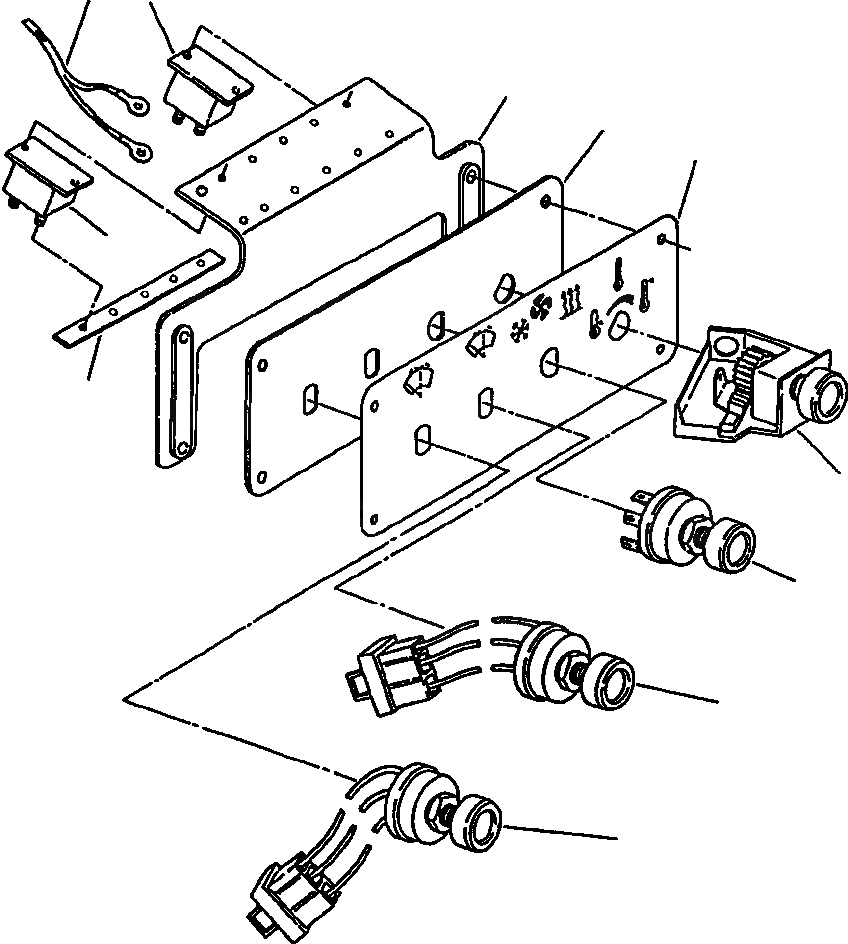

Запчасти Komatsu D87E-2 FIG. K-A КАБИНА - ПЕРЕКЛЮЧАТЕЛЬ ПАНЕЛЬ КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

1298 671 H91

PANEL, CAB SWITCH

SN: P090001-UP

1шт.

1

1297 662 H91

BRACKET

SN: P090001-UP

1шт.

2

1297 660 H1

PANEL, CONTROL

SN: P090001-UP

1шт.

|$3

1315 304 H1

SCREW

SN: P090001-UP

4шт.

3

1315 314 H1

PROGRAPH

SN: P090001-UP

1шт.

4

1304 489 H1

SWITCH, WIPER/WASHER

SN: P090001-UP

1шт.

|$6

1298 667 H1

KNOB

SN: P090001-UP

1шт.

|$7

131 954

SCREW

SN: P090001-UP

1шт.

5

1298 639 H2

SWITCH, HEATER AND A/C

SN: P090001-UP

1шт.

|$9

1298 667 H1

KNOB

SN: P090001-UP

1шт.

|$10

131 954

SCREW

SN: P090001-UP

1шт.

6

1298 637 H1

ADJUSTER, TEMPERATURE

SN: P090001-UP

1шт.

|$12

1298 667 H1

KNOB

SN: P090001-UP

1шт.

|$13

131 954

SCREW

SN: P090001-UP

1шт.

|$14

103 322

WASHER

SN: P090001-UP

1шт.

|$15

272 123

NUT

SN: P090001-UP

1шт.

7

706 130 C1

BREAKER, CIRCUIT (10A)

SN: P090001-UP

4шт.

|$17

436 750

SCREW

SN: P090001-UP

8шт.

|$18

106 497

WASHER

SN: P090001-UP

8шт.

|$19

103 088

NUT

SN: P090001-UP

8шт.

8

706 144 C1

BREAKER, CIRCUIT (25A)

SN: P090001-UP

1шт.

|$21

436 750

SCREW

SN: P090001-UP

2шт.

|$22

106 497

WASHER

SN: P090001-UP

2шт.

|$23

103 088

NUT

SN: P090001-UP

2шт.

9

1298 670 H2

HARNESS, SWITCH PANEL

SN: P090001-UP

1шт.

10

1269 776 H1

BAR, BUSS

SN: P090001-UP

1шт.

11

1304 489 H1

SWITCH, WIPER/WASHER

SN: P090001-UP

1шт.

|$27

-1шт.

|$28

F1 PART NUMBER IS A NON-SERVICE PART AND IS FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$29

-1шт.
