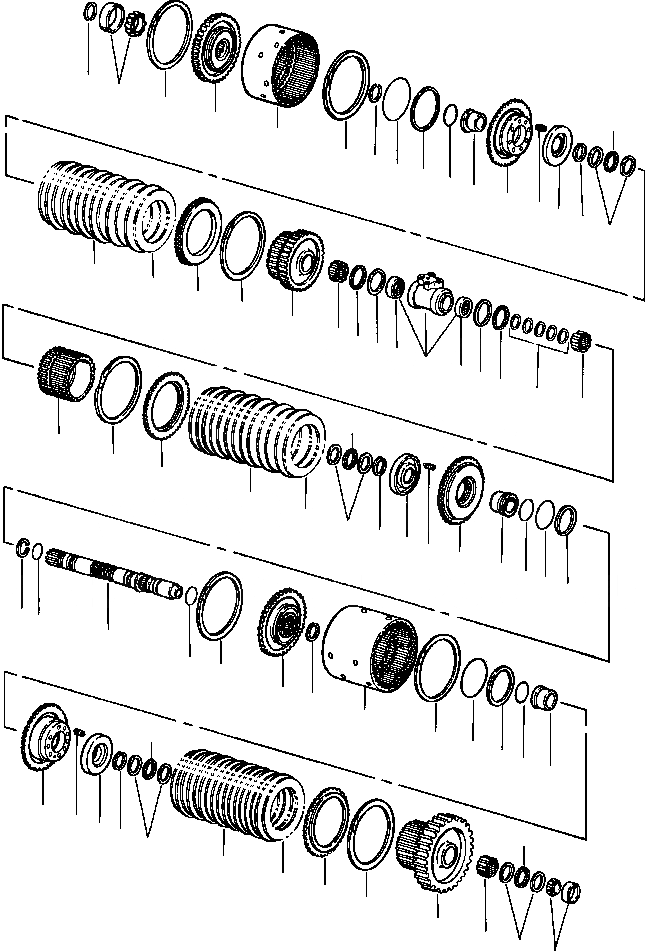

Запчасти Komatsu D87E-2 FIG. F-A ТРАНСМИССИЯ - RANGE МУФТА СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

709 502 C95

CLUTCH, RANGE

SN: P090001-UP

1шт.

1

654 422 C91

BEARING

SN: P090001-UP

1шт.

|$3

OR

-1шт.

|$5

716 760 C91

BEARING

SN: P090001-UP

1шт.

|$7

OR

-1шт.

|$9

1298 010 H91

BEARING

SN: P090001-UP

1шт.

2

730 837 C1

RACE

SN: P090001-UP

8шт.

3

233 031 R91

BEARING

SN: P090001-UP

4шт.

4

1210 723 H91

BEARING

SN: P090001-UP

3шт.

5

202 451 R1

RING

SN: P090001-UP

6шт.

6

640 006 C91

BEARING

SN: P090001-UP

1шт.

|$16

OR

-1шт.

|$18

619 745 C91

BEARING

SN: P090001-UP

1шт.

7

1281 360 H1

RING

SN: P090001-UP

7шт.

8

716 758 C1

HUB

SN: P090001-UP

1шт.

9

709 813 C2

DRUM, FIRST AND THIRD

SN: P090001-UP

1шт.

10

1281 360 H1

RING

SN: P090001-UP

3шт.

11

716 757 C1

RING

SN: P090001-UP

1шт.

12

295 204 R1

O-RING

SN: P090001-UP

1шт.

13

233 053 R91

BEARING

SN: P090001-UP

2шт.

14

654 570 C1

WASHER

SN: P090001-UP

2шт.

|$27

OR

SN: P090001-UP

-1шт.

|$28

730 882 C1

WASHER

SN: P090001-UP

2шт.

15

659 568 C91

MANIFOLD

SN: P090001-UP

1шт.

16

619 085 C91

BEARING

SN: P090001-UP

2шт.

17

1210 677 H1

RING

SN: P090001-UP

5шт.

|$33

OR

-1шт.

|$35

1208 153 H1

RING

SN: P090001-UP

5шт.

18

SHAFT, OUTPUT (SEE FIG. F2320-08A0)

SN: P090001-UP

1шт.

19

380 910 R1

SEAL

SN: P090001-UP

1шт.

20

659 595 C1

HUB, FIRST AND SECOND

SN: P090001-UP

1шт.

21

709 812 C2

DRUM, FIRST AND SECOND

SN: P090001-UP

1шт.

22

659 683 C2

GEAR, FIRST

SN: P090001-UP

1шт.

23

730 837 C1

WASHER

SN: P090001-UP

2шт.

24

233 031 R91

BEARING

SN: P090001-UP

1шт.

25

1281 360 H1

RING

SN: P090001-UP

1шт.

26

1282 485 H1

PLATE, CLUTCH SUPPORT

SN: P090001-UP

1шт.

27

658 354 C2

DISC, FRICTION

SN: P090001-UP

9шт.

28

659 592 C1

PLATE, SEPARATOR

SN: P090001-UP

8шт.

29

202 451 H1

RING

SN: P090001-UP

1шт.

30

654 288 C1

PLATE

SN: P090001-UP

1шт.

31

658 081 C1

SPRING

SN: P090001-UP

8шт.

32

659 593 C1

PISTON, FIRST

SN: P090001-UP

1шт.

33

317 923 R1

O-RING

SN: P090001-UP

1шт.

34

658 033 C1

SLEEVE

SN: P090001-UP

1шт.

35

659 962 C1

SEAL

SN: P090001-UP

1шт.

36

659 963 C1

O-RING

SN: P090001-UP

1шт.

37

658 390 C2

GEAR, SECOND

SN: P090001-UP

1шт.

38

1281 360 H1

RING

SN: P090001-UP

1шт.

39

1282 485 C1

PLATE

SN: P090001-UP

1шт.

40

658 354 C2

DISC, FRICTION

SN: P090001-UP

7шт.

41

659 592 C1

PLATE, SEPARATOR

SN: P090001-UP

6шт.

42

730 837 C1

WASHER

SN: P090001-UP

2шт.

43

233 031 R91

BEARING

SN: P090001-UP

1шт.

44

202 451 H1

RING

SN: P090001-UP

1шт.

45

654 288 C1

PLATE

SN: P090001-UP

1шт.

46

658 081 C1

SPRING

SN: P090001-UP

8шт.

47

659 597 C1

PISTON, SECOND

SN: P090001-UP

1шт.

48

658 033 C1

SLEEVE

SN: P090001-UP

1шт.

49

317 923 R1

O-RING

SN: P090001-UP

1шт.

50

658 020 C1

SEAL

SN: P090001-UP

1шт.

51

659 712 C1

O-RING

SN: P090001-UP

1шт.

52

658 391 C2

GEAR, THIRD

SN: P090001-UP

1шт.

53

1281 360 H1

RING

SN: P090001-UP

1шт.

54

1282 485 H1

PLATE

SN: P090001-UP

1шт.

55

658 354 C2

DISC, FRICTION

SN: P090001-UP

7шт.

56

659 592 C1

PLATE, SEPARATOR

SN: P090001-UP

6шт.

57

730 837 C1

WASHER

SN: P090001-UP

2шт.

58

233 031 R91

BEARING

SN: P090001-UP

1шт.

59

202 451 H1

RING

SN: P090001-UP

1шт.

60

654 288 C1

PLATE

SN: P090001-UP

1шт.

61

658 081 C1

SPRING

SN: P090001-UP

6шт.

62

659 594 C1

PISTON, THIRD

SN: P090001-UP

1шт.

63

658 033 C1

SLEEVE

SN: P090001-UP

1шт.

64

317 923 R1

O-RING

SN: P090001-UP

1шт.

65

659 711 C1

O-RING

SN: P090001-UP

1шт.

66

658 029 C1

SEAL

SN: P090001-UP

1шт.

|$85

-1шт.

|$86

F1 PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$87

-1шт.
