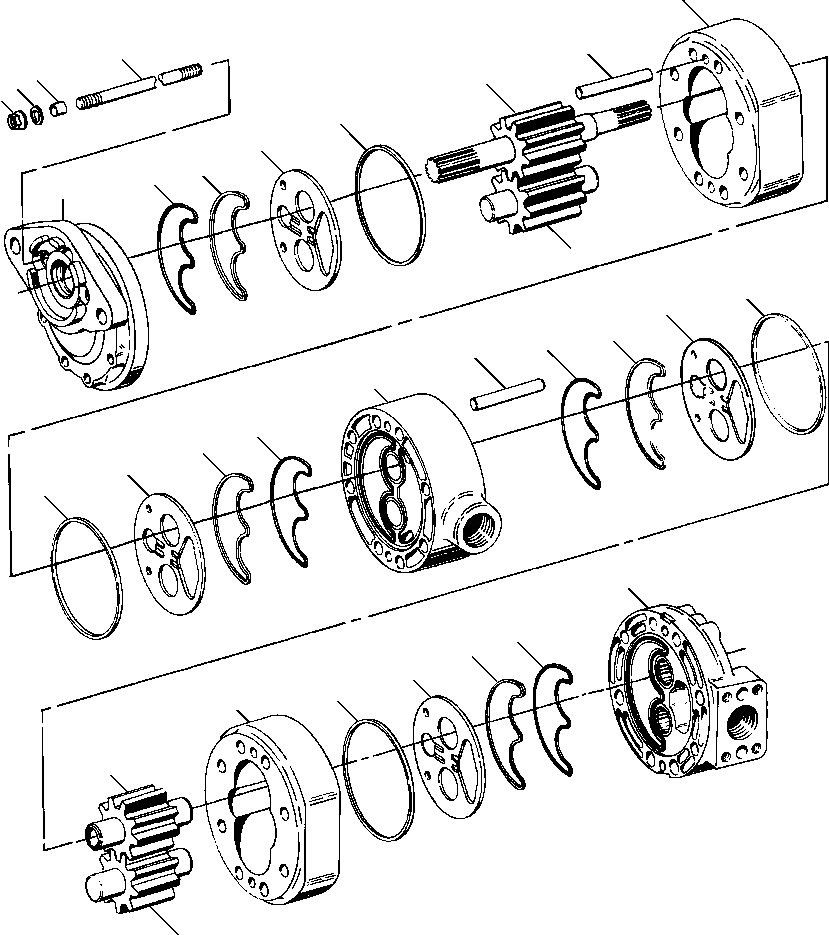

Запчасти Komatsu D87E-2 FIG. F-7A ПОДАЧА И SCAVENGE НАСОС СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

1270 886 H92

PUMP ASSEMBLY, CHARGE AND SCAVENGE

SN: P090001-UP

1шт.

|$1

637 410 C91

KIT, STUD

SN: P090001-UP

1шт.

1

NSS

WASHER, FLAT

SN: P090001-UP

8шт.

2

NSS

SLEEVE, TUBE

SN: P090001-UP

8шт.

3

NSS

STUD, TIE ROD

SN: P090001-UP

8шт.

4

NSS

NUT, MOUNTING

SN: P090001-UP

8шт.

5

NSS

FLANGE, MOUNTING

SN: P090001-UP

1шт.

|$7

1270 913 H92

KIT, SEAL

SN: P090001-UP

1шт.

6

NSS

SEAL, PRELOAD

SN: P090001-UP

4шт.

7

NSS

SEAL, LOAD

SN: P090001-UP

4шт.

8

NSS

PLATE, WEAR

SN: P090001-UP

4шт.

9

NSS

RING, SEAL

SN: P090001-UP

4шт.

10

NSS

GEAR SET, FRONT

SN: P090001-UP

1шт.

11

NSS

PIN, FRONT DOWEL

SN: P090001-UP

2шт.

12

NSS

SECTION, FRONT GEAR

SN: P090001-UP

1шт.

13

NSS

SECTION, FRONT IN AND OUT

SN: P090001-UP

1шт.

14

NSS

PIN, REAR DOWEL

SN: P090001-UP

2шт.

15

NSS

GEAR SET, REAR

SN: P090001-UP

1шт.

16

NSS

SECTION, REAR GEAR

SN: P090001-UP

1шт.

17

NSS

SECTION, REAR IN AND OUT

SN: P090001-UP

1шт.
