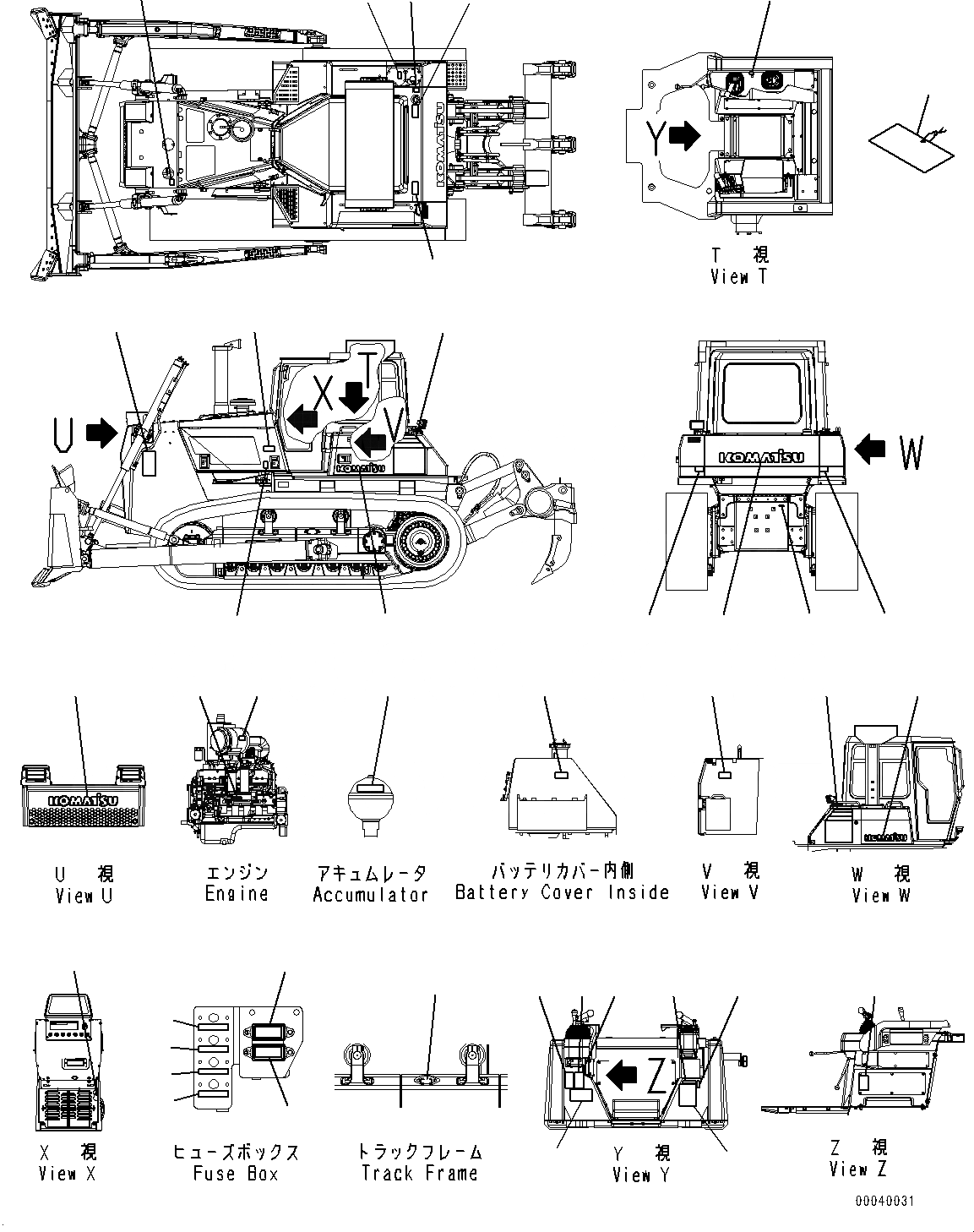

Запчасти Komatsu D85PX-15E0 МАРКИРОВКА (№9-) МАРКИРОВКА, АНГЛ., TEXT ТИП

1

14X-98-11170

Plate, Operating, Lock

SN: 11609-UP

2шт.

2

09690-F0630

Plate, Komatsu Logo

SN: 11609-UP

1шт.

3

17A-98-11180

Plate, Horn

SN: 11609-UP

1шт.

4

09690-M0063

Plate, Komatsu Logo

SN: 11609-11799

1шт.

5

154-98-75180

Plate, Oil Chart, Oil Chart

SN: 11609-UP

1шт.

6

154-98-71310

Mark, D85PX

SN: 11609-UP

1шт.

7

154-98-71320

Mark, D85PX

SN: 11609-UP

1шт.

8

09690-P0630

Plate, Komatsu Logo

SN: 11609-UP

2шт.

9

09690-P1120

Plate, Komatsu Logo

SN: 11609-UP

1шт.

10

154-98-75111

Plate, Fuse

SN: 11609-UP

1шт.

11

154-98-75121

Plate, Fuse

SN: 11609-UP

1шт.

12

154-98-71240

Plate, Breaker

SN: 11609-UP

1шт.

13

09602-10001

Plate, Name (Limited Supply)

SN: 11609-UP

1шт.

14

09669-0000E

Plate, Symbol, Fuel Filler

SN: 11609-UP

1шт.

15

154-98-75130

Plate, Main Power

SN: 11609-UP

1шт.

16

154-98-75140

Plate, Engine Controller

SN: 11609-UP

1шт.

17

154-98-75151

Plate, Ribbon Heater

SN: 11609-UP

1шт.

18

154-98-75160

Plate, Continuous PW

SN: 11609-UP

1шт.

19

20Y-00-41530

Plate, Symbol, Ecot3, Ecot 3

SN: 11609-UP

1шт.

20

09653-03001

Plate, Warning, High Temperature

SN: 11609-UP

1шт.

21

09668-03001

Plate, Warning, Hot Water

SN: 11609-UP

1шт.

22

09654-33001

Plate, Warning, Before Leaving Seat

SN: 11609-UP

1шт.

23

09657-03003

Plate, Warning, Track Adjustment

SN: 11609-UP

2шт.

24

09651-03001

Plate, Warning, Read Manual Before Operating, Safety, Before Operating

SN: 11609-UP

1шт.

25

09659-53000

Plate, Warning, Explosion Hazard, Safety, Accumulator

SN: 11609-UP

1шт.

26

09667-03001

Plate, Caution, Rotating Object

SN: 11609-UP

2шт.

27

17A-98-23920

Plate, Fuse

SN: 11609-UP

2шт.

28

09812-03000

Plate, Danger, Keep a Safe Distance

SN: 11609-UP

2шт.

29

09808-03000

Plate, Warning, Battery Cables

SN: 11609-UP

2шт.

30

09963-03001

Tag, Danger, Do Not Operate, Do Not Operate

SN: 11609-UP

1шт.

31

14X-98-35181

Plate, Reflector, Rear Reflector

SN: 11609-UP

2шт.

32

09802-13000

Plate, Warning, Before Operating and Traveling

SN: 11609-UP

1шт.

33

6217-71-6470

Plate, Fuel Filter Replace, Fuel Filter

SN: 11609-UP

1шт.

34

09649-03012

Plate, Notice, Engine Shutdown

SN: 11609-UP

1шт.

35

09637-30163

Plate, Service Instruction, Air Cleaner

SN: 11609-UP

1шт.
