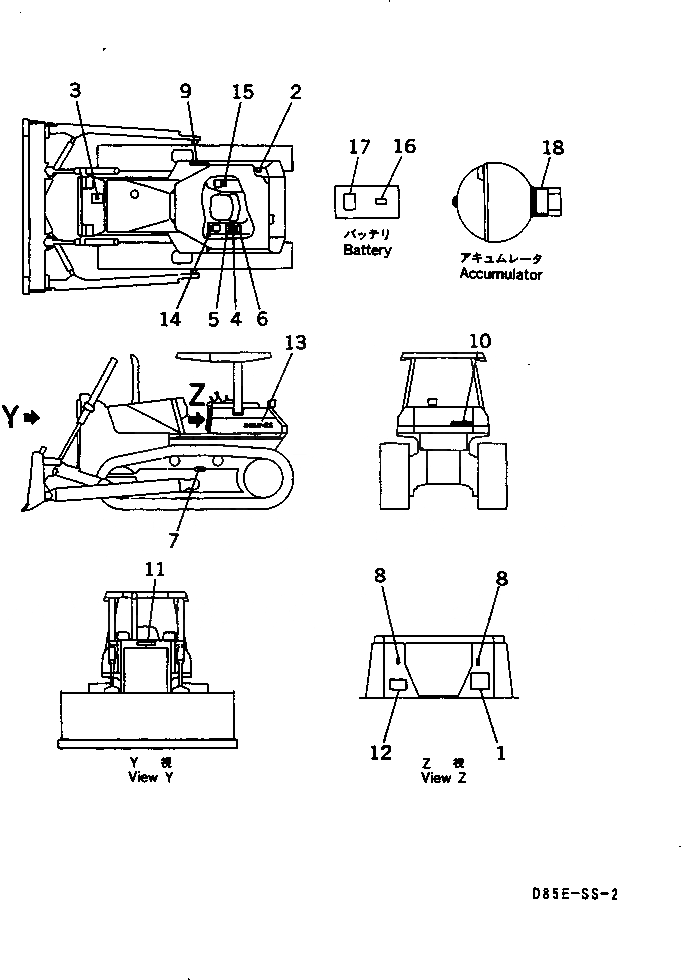

Запчасти Komatsu D85E-SS-2A МАРКИРОВКА (АНГЛ.)(№-) МАРКИРОВКА

1

14U-98-11111

PLATE,CHART¤ OIL

SN: 3023-UP

1шт.

|1

0

PLATE,CHART¤ OIL

SN: 3001-3022

1шт.

|2

14X-98-12310

PLATE

SN: 3001-UP

1шт.

2

0

PLATE¤ CAUTION,OPERATING OIL TANK

SN: 3001-UP

1шт.

3

0

PLATE¤ SAFETY,RADIATOR

SN: 3001-UP

1шт.

4

0

PLATE¤ CAUTION,BEFORE AND AFTER OPERATION

SN: 3001-UP

1шт.

5

0

PLATE¤ SAFETY,BEFORE OPERATING

SN: 3001-UP

1шт.

6

0

PLATE¤ CAUTION,SAFETY COMFIRM OF REAR

SN: 3001-UP

1шт.

7

14X-98-11551

PLATE¤ SAFETY,ADJUSTING TRACK SHOE

SN: 3001-UP

2шт.

8

14X-98-11170

PLATE¤ OPERATING,LOCK

SN: 3001-UP

2шт.

9

14X-98-11570

PLATE,PRESSURE TEST

SN: 3001-UP

1шт.

10

09690-C0400

PLATE¤ MARK,KOMATSU¤ REAR (TILT DOZER)

SN: 3001-UP

1шт.

|10

09690-C0630

PLATE¤ MARK,KOMATSU¤ REAR (FOR USA)

SN: 3001-UP

1шт.

11

09690-B0280

PLATE¤ MARK,FRONT

SN: 3001-UP

1шт.

12

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 3001-UP

1шт.

|12

04418-13060

SCREW

SN: 3001-UP

4шт.

13

14U-98-11210

PLATE,D85E-SS

SN: 3001-UP

2шт.

14

14X-98-11240

PLATE¤ OPERATING,STEERING LEVER

SN: 3001-UP

1шт.

15

14X-98-11250

PLATE¤ OPERATING,WORK EQUIP.LEVER (TILT DOZER)

SN: 3001-UP

1шт.

|15

14X-98-11260

PLATE¤ OPERATING,WORK EQUIP.LEVER (ANGLE DOZER)

SN: 3001-UP

1шт.

16

09664-30068

PLATE¤ SAFETY,BATTERY (FOR USA)

SN: 3001-UP

1шт.

17

14X-98-11370

PLATE¤ INSTRUCTION,BATTERY (FOR USA)

SN: 3001-UP

1шт.

18

14X-98-11390

PLATE¤ CAUTION,ACCUMULATOR

SN: 3001-UP

1шт.
