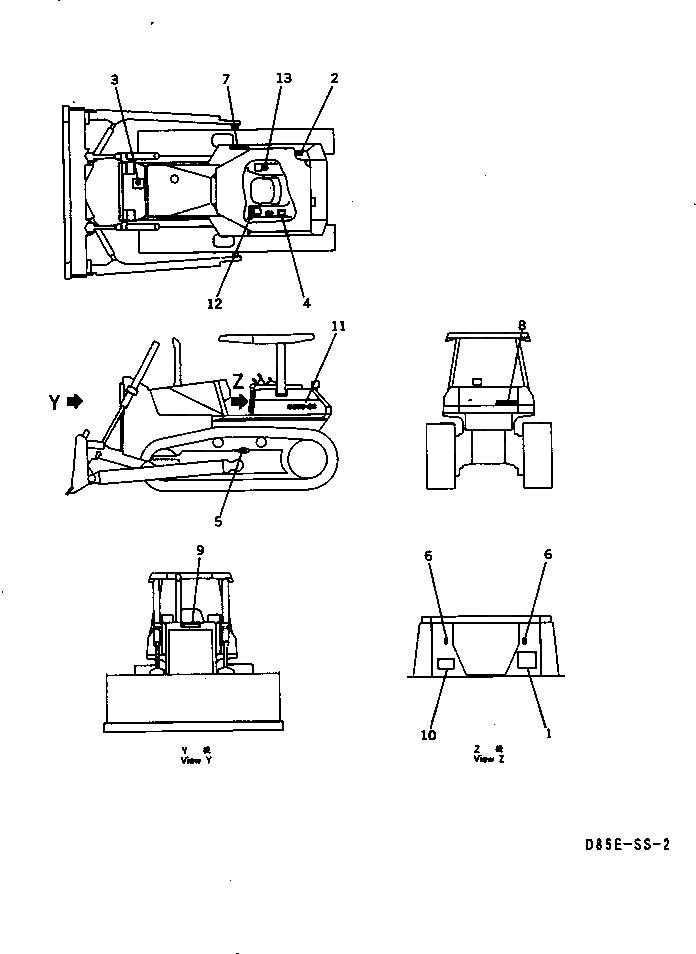

Запчасти Komatsu D85E-SS-2 МАРКИРОВКА (INDNESIAN)(№-) МАРКИРОВКА

1

14U-98-11131

PLATE,CHART¤ OIL

SN: 3023-UP

1шт.

|1

0

PLATE,CHART¤ OIL

SN: 3001-3022

1шт.

2

14X-98-12120

PLATE¤ SAFETY,OPERATING OIL TANK

SN: 3001-UP

1шт.

3

14X-98-12130

PLATE¤ SAFETY,RADIATOR

SN: 3001-UP

1шт.

4

14X-98-12140

PLATE¤ CAUTION,BEFORE AND AFTER OPERATION

SN: 3001-UP

1шт.

5

14X-98-12150

PLATE¤ SAFETY,ADJUSTING TRACK SHOE

SN: 3001-UP

2шт.

6

14X-98-11170

PLATE¤ OPERATING,LOCK

SN: 3001-UP

2шт.

7

14X-98-12170

PLATE,PRESSURE TEST

SN: 3001-UP

1шт.

8

09690-C0400

PLATE¤ MARK,KOMATSU¤ REAR

SN: 3001-UP

1шт.

9

09690-B0280

PLATE¤ MARK,KOMATSU¤ FRONT

SN: 3001-UP

1шт.

10

09602-05635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 3001-UP

1шт.

|10

04418-13060

SCREW

SN: 3001-UP

4шт.

11

14U-98-11210

PLATE,D85E-SS

SN: 3001-UP

2шт.

12

14X-98-11240

PLATE¤ OPERATING,STEERING LEVER

SN: 3001-UP

1шт.

13

14X-98-11250

PLATE¤ OPERATING,WORK EQUIP.LEVER (TILT DOZER)

SN: 3001-UP

1шт.

|13

14X-98-11260

PLATE¤ OPERATING,WORK EQUIP.LEVER (ANGLE DOZER)

SN: 3001-UP

1шт.
