Запчасти Komatsu D85E-18 МАРКИРОВКА¤ АНГЛ. ЧАСТИ КОРПУСА

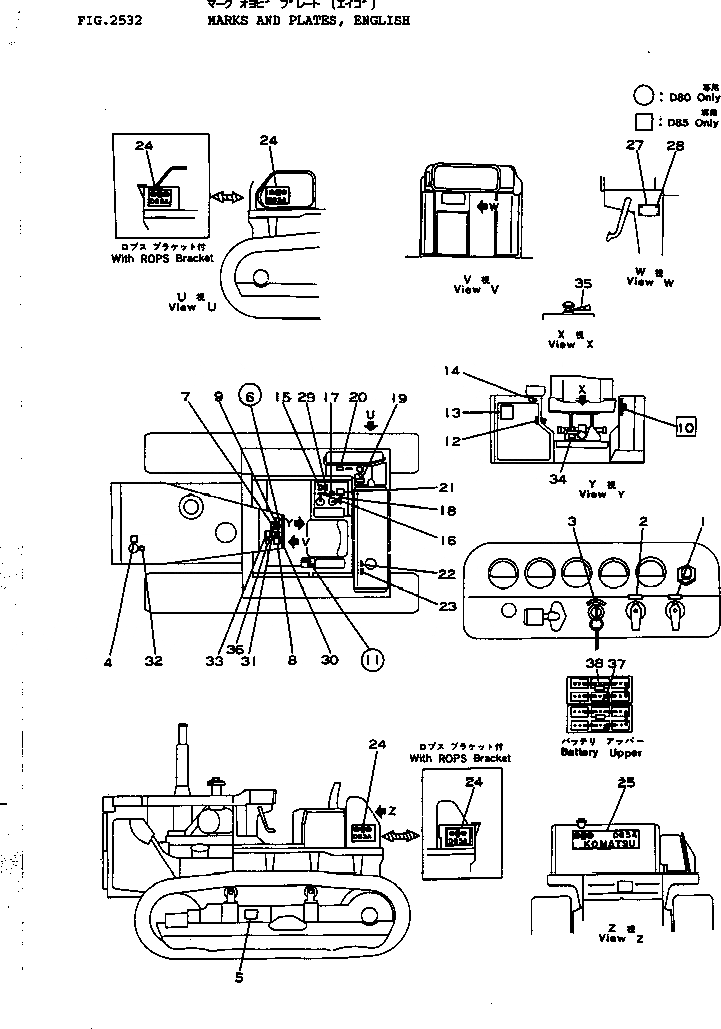

Схема запчастей Komatsu D85E-18 - МАРКИРОВКА¤ АНГЛ. ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

1

09609-34007

PLATE, NAME,PREHEATER SWITCH

SN: 25001-UP

1шт.

2

09609-34008

PLATE, NAME,LAMP SWITCH

SN: 25001-UP

1шт.

3

09683-30050

PLATE, OPERATING,STARTING SWITCH

SN: 25001-UP

1шт.

4

09650-30101

PLATE, INSTRUCTION,RADIATOR

SN: 25001-UP

1шт.

5

09657-03000

PLATE, SAFETY,TRACK ADJUSTING

SN: 25001-UP

1шт.

7

175-900-2350

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 25001-UP

1шт.

8

09654-03000

PLATE, SAFETY,WARNING

SN: 25001-UP

1шт.

9

09649-03010

PLATE, INSTRUCTION,ENGINE STOP

SN: 25001-UP

1шт.

10

09685-00002

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 25001-UP

1шт.

12

09685-00001

PLATE, OPERATING,PARKING BRAKE LEVER LOCK

SN: 25001-UP

1шт.

13

154-98-12753

CHART, OIL

SN: 26001-UP

1шт.

13

154-98-12752

CHART, OIL

SN: 25001-26000

1шт.

14

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 25001-UP

1шт.

15

09670-00001

PLATE, OPERATING,ANGLE BLADE LEVER

SN: 25001-UP

1шт.

15

09670-00003

PLATE, OPERATING,STRAIGHT TILT BLADE LEVER

SN: 25001-UP

1шт.

16

09685-00003

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 25001-UP

1шт.

17

09671-35468

PLATE, OPERATING,RIPPER CONTROL LEVER

SN: 25001-UP

1шт.

18

09685-00001

PLATE, OPERATING,RIPPER CONTROL LEVER LOCK

SN: 25001-UP

1шт.

19

09655-30120

PLATE, INSTRUCTION,OIL FILTER

SN: 25001-UP

1шт.

20

09653-03000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 25001-UP

1шт.

21

195-98-12990

PLATE, CAUTION,SEAT BELT

SN: 25001-UP

1шт.

22

09652-30100

PLATE, CAUTION,FUEL TANK

SN: 25001-UP

1шт.

23

09656-30080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 25001-26000

1шт.

24

09691-05852

PLATE, MARK,D85A

SN: 25001-UP

2шт.

24

09691-05855

PLATE, MARK,D85E

SN: 25001-UP

2шт.

25

09692-06852

PLATE, MARK,D85A

SN: 25001-UP

1шт.

25

09692-06855

PLATE, MARK,D85E

SN: 25001-UP

1шт.

27

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

SN: 25001-UP

1шт.

28

01220-30406

SCREW

SN: 25001-UP

4шт.

29

09173-03000

PLATE, SAFETY,LUBRICATING

SN: 25001-UP

1шт.

30

09651-03000

PLATE, SAFETY,BEFORE OPERATING

SN: 25001-UP

1шт.

31

09667-03000

PLATE, SAFETY,ENGINE COVER

SN: 25001-UP

1шт.

32

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 25001-UP

1шт.

33

09666-03000

PLATE, SAFETY,FIRE PREVENTION

SN: 25001-UP

1шт.

34

178-98-12330

PLATE, OPERATING,ADJUST,WEIGHT,OPERATOR'S SEAT

SN: 25001-26000

1шт.

35

178-98-12340

PLATE, OPERATING,OPERATOR'S SEAT

SN: 25001-26000

1шт.

36

09673-38071

PLATE, OPERATING,T.W CONTROL LEVER POSITION L.H

SN: 25001-UP

1шт.

37

09664-30065

PLATE, SAFETY,BATTERY (U.S.A, PUERTO RICO)

SN: 25001-UP

2шт.

38

09664-30081

PLATE, SAFETY,BATTERY (U.S.A, PUERTO RICO)

SN: 25001-UP

2шт.

Выбрано товаров: 39
