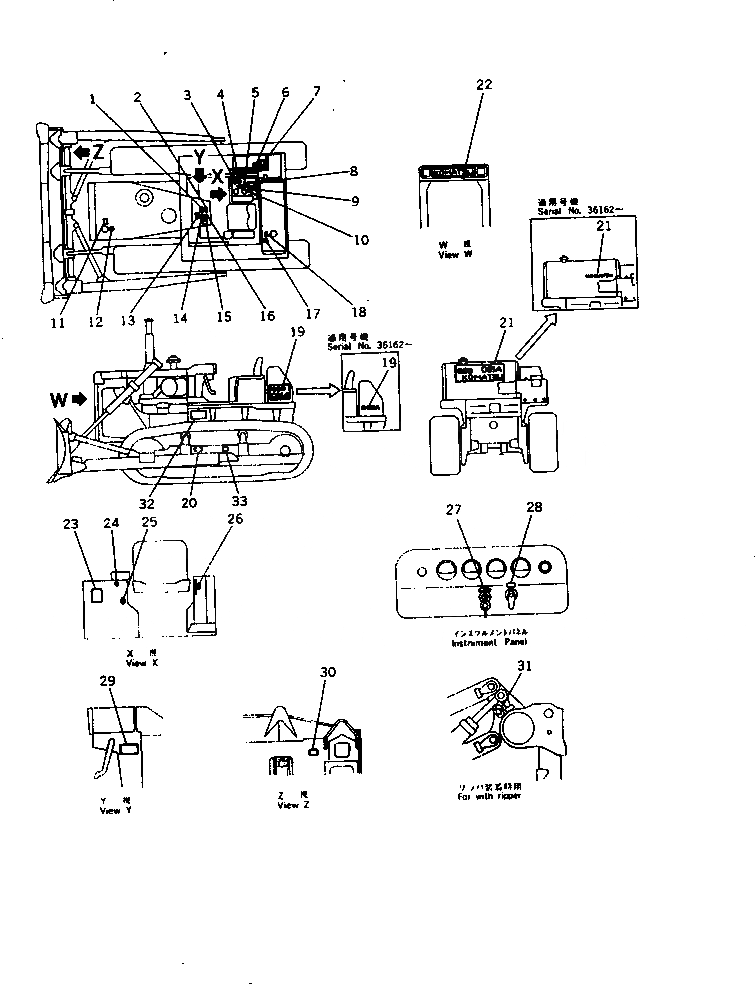

Запчасти Komatsu D85A-21B МАРКИРОВКА (АНГЛ.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

175-900-2350

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 35001-UP

1шт.

2

09649-03010

PLATE, INSTRUCTION

SN: 35001-UP

1шт.

3

09670-00003

PLATE, OPERATING

SN: 35001-UP

1шт.

3

09670-00001

PLATE, OPERATING,ANGLE DOZER

SN: 35001-UP

1шт.

4

09173-03000

PLATE, SAFETY

SN: 35001-UP

1шт.

5

09671-00001

PLATE, OPERATING,LOCK LEVER

SN: 35001-UP

1шт.

6

09653-03000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 35001-UP

1шт.

7

09655-30120

PLATE, INSTRUCTION,OIL FILTER

SN: 35001-UP

1шт.

8

195-98-12940

PLATE, CAUTION,SEAT BELT

SN: 35001-UP

1шт.

9

09685-00001

PLATE, OPERATING,RIPPER LOCK LEVER

SN: 35001-UP

1шт.

10

09685-00003

PLATE, OPERATING

SN: 35001-UP

1шт.

11

09650-30101

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 35001-UP

1шт.

12

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 35001-UP

1шт.

13

09666-03000

PLATE, SAFETY,FIRE PREVENTION

SN: 35001-UP

1шт.

14

09667-03000

PLATE, SAFETY,ENGINE SIDE COVER

SN: 35001-UP

1шт.

15

09654-03000

PLATE, SAFETY

SN: 35001-UP

1шт.

16

09651-03000

PLATE, SAFETY,BEFORE OPERATING

SN: 35001-UP

1шт.

17

09656-30080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 35001-UP

1шт.

18

09652-30100

PLATE, CAUTION,FUEL TANK

SN: 35001-UP

1шт.

19

154-98-35970

PLATE, MARK

SN: 36162-UP

2шт.

19

09691-05852

PLATE, MARK

SN: 35001-36161

2шт.

20

09657-03000

PLATE, SAFETY,TRACK ADJUSTING

SN: 35251-UP

2шт.

20

09657-03000

PLATE, SAFETY,TRACK ADJUSTING

SN: 35001-35250

1шт.

21

09690-B0500

PLATE, MARK

SN: 36162-UP

1шт.

21

09692-06852

PLATE, MARK

SN: 35001-36161

1шт.

22

09690-B0450

PLATE, MARK,(NEW LOGO)

SN: 36162-UP

1шт.

22

09690-40560

PLATE, MARK

SN: 35001-36161

1шт.

23

154-98-41130

CHART,OIL

SN: 35001-UP

1шт.

24

09679-02002

PLATE, OPERATING

SN: 35001-UP

1шт.

25

09685-00001

PLATE, OPERATING,RIPPER LOCK LEVER

SN: 35001-UP

1шт.

26

09685-00002

PLATE, OPERATING,LOCK LEVER

SN: 35001-UP

1шт.

27

09683-30060

PLATE, OPERATING

SN: 35001-UP

1шт.

28

09609-34008

PLATE, NAME

SN: 35001-UP

1шт.

29

09602-01643

PLATE, NAME,MACHINE

SN: 35001-UP

1шт.

29

01220-60408

SCREW

SN: 35001-UP

4шт.

30

09601-00835

PLATE, NAME

SN: 35001-UP

1шт.

30

04418-13060

SCREW

SN: 35001-UP

4шт.

31

09601-00835

PLATE, NAME

SN: 35001-UP

1шт.

31

04418-13060

SCREW

SN: 35001-UP

4шт.

32

195-98-23370

PLATE, OPERATING

SN: 35001-UP

1шт.

33

09960-61012

PLATE, MARK

SN: 35001-UP

2шт.
