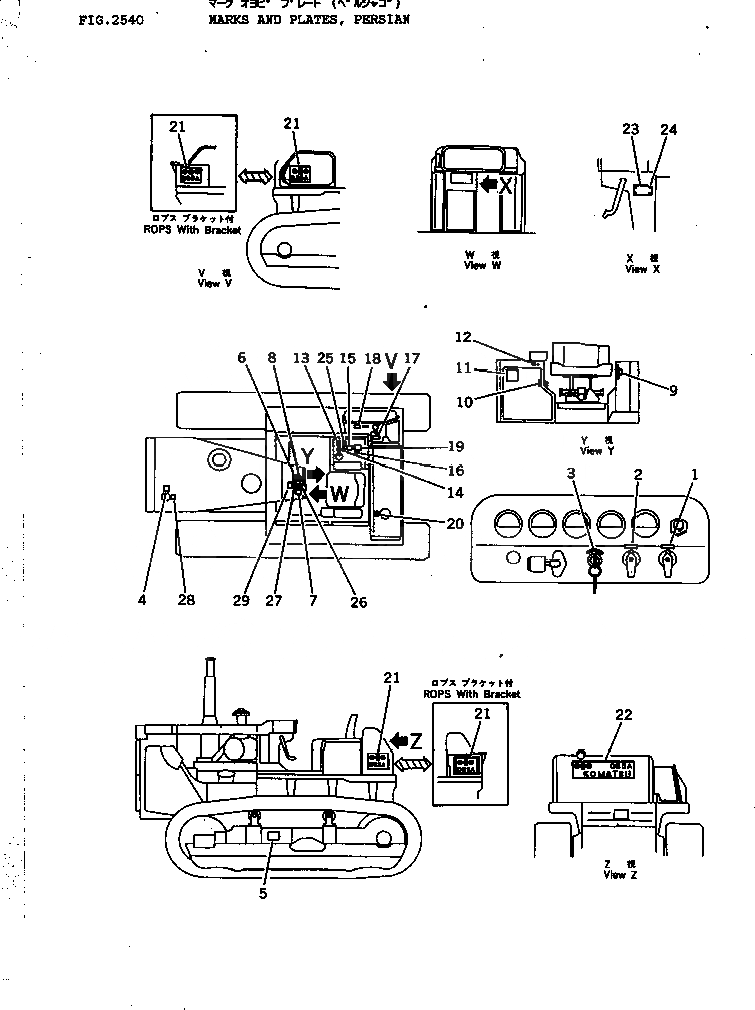

Запчасти Komatsu D85A-18 МАРКИРОВКА¤ ИРАН ЧАСТИ КОРПУСА
№
Артикул
Название
Примечание
Количество
1
09609-00507
PLATE, NAME,PREHEATER SWITCH
SN: 25001-UP
1шт.
2
09609-00508
PLATE, NAME,LAMP SWITCH
SN: 25001-UP
1шт.
3
09683-04050
PLATE, OPERATING,STARTING SWITCH
SN: 25001-UP
1шт.
4
09650-04101
PLATE, INSTRUCTION,RADIATOR
SN: 25001-UP
1шт.
5
09657-00400
PLATE, SAFETY,TRACK ADJUSTING
SN: 25001-UP
1шт.
6
195-98-14610
PLATE, NAME,TRAVELING ON SLOPE
SN: 25001-UP
1шт.
7
09654-00400
PLATE, SAFETY,WARNING
SN: 25001-UP
1шт.
8
09649-00410
PLATE, INSTRUCTION,ENGINE STOP
SN: 25001-UP
1шт.
9
09685-00002
PLATE, OPERATING,TRANSMISSION LEVER LOCK
SN: 25001-UP
1шт.
10
09685-00001
PLATE, OPERATING,PARKING BRAKE LEVER LOCK
SN: 25001-UP
1шт.
11
154-98-13370
CHART, LUBRICATION
SN: 25001-UP
1шт.
12
09679-02002
PLATE, OPERATING,HORN SWITCH
SN: 25001-UP
1шт.
13
09670-00001
PLATE, OPERATING,ANGLE BLADE LEVER
SN: 25001-UP
1шт.
13
09670-00003
PLATE, OPERATING,STRAIGHT TILT BLADE LEVER
SN: 25001-UP
1шт.
14
09685-00003
PLATE, OPERATING,BLADE CONTROL LEVER LOCK
SN: 25001-UP
1шт.
15
09671-00001
PLATE, OPERATING,RIPPER CONTROL LEVER
SN: 25001-UP
1шт.
16
09685-00001
PLATE, OPERATING,RIPPER CONTROL LEVER LOCK
SN: 25001-UP
1шт.
17
09655-04120
PLATE, INSTRUCTION,OIL FILTER
SN: 25001-UP
1шт.
18
09653-00400
PLATE, SAFETY,HYDRAULIC OIL TANK
SN: 25001-UP
1шт.
19
195-98-14620
PLATE, CAUTION,SEAT BELT
SN: 25001-UP
1шт.
20
09652-04100
PLATE, CAUTION,FUEL TANK
SN: 25001-UP
1шт.
21
09691-05852
PLATE, MARK,D85A
SN: 25001-UP
2шт.
22
09692-06852
PLATE, MARK,D85A
SN: 25001-UP
1шт.
23
09602-04643
PLATE, NAME,(LIMITED SUPPLY)
SN: 25001-UP
1шт.
24
01220-60408
SCREW
SN: 25001-UP
4шт.
25
09173-00400
PLATE, SAFETY,LUBRICATING
SN: 25001-UP
1шт.
26
09651-00400
PLATE, SAFETY,BEFORE OPERATING
SN: 25001-UP
1шт.
27
09667-00400
PLATE, SAFETY,ENGINE COVER
SN: 25001-UP
1шт.
28
09668-00400
PLATE, SAFETY,RADIATOR CAP
SN: 25001-UP
1шт.
29
09666-00400
PLATE, SAFETY,FIRE PREVENTION
SN: 25001-UP
1шт.
Выбрано товаров: 30
