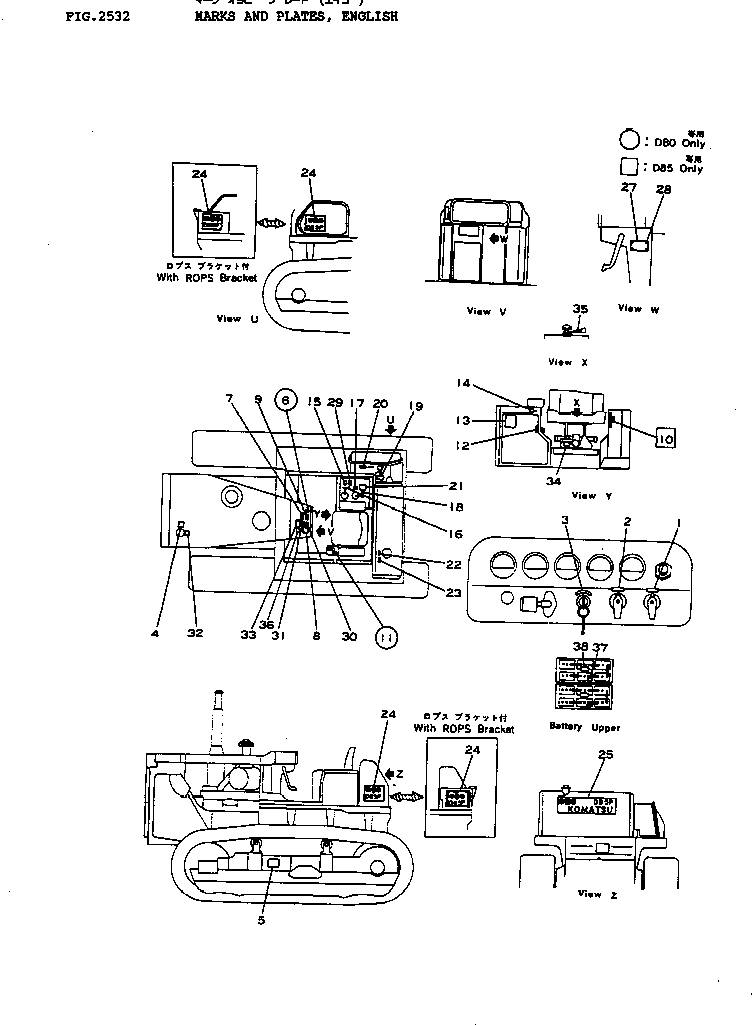

Запчасти Komatsu D80P-18 МАРКИРОВКА¤ АНГЛ. ЧАСТИ КОРПУСА

1

09609-34007

PLATE, NAME,PREHEATER SWITCH

SN: 2001-UP

1шт.

2

09609-34008

PLATE, NAME,LAMP SWITCH

SN: 2001-UP

1шт.

3

09683-30050

PLATE, OPERATING,STARTING SWITCH

SN: 2001-UP

1шт.

4

09650-30101

PLATE, INSTRUCTION,RADIATOR

SN: 2001-UP

1шт.

5

09657-03000

PLATE, SAFETY,TRACK ADJUSTING

SN: 2001-UP

1шт.

6

09674-38071

PLATE, OPERATING,TRANSMISSION CONTROL LEVER

SN: 2001-UP

1шт.

7

175-900-2350

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 2001-UP

1шт.

8

09654-03000

PLATE, SAFETY,WARNING

SN: 2001-UP

1шт.

9

09649-03010

PLATE, INSTRUCTION,ENGINE STOP

SN: 2051-UP

1шт.

9

09649-10400

PLATE, INSTRUCTION,ENGINE STOP

SN: 2001-2050

1шт.

11

09687-32570

PLATE, OPERATING,MAIN CLUTCH LEVER

SN: 2001-UP

1шт.

12

09685-00001

PLATE, OPERATING,PARKING BRAKE LEVER LOCK

SN: 2051-UP

1шт.

12

09985-30016

PLATE, OPERATING,PARKING BRAKE LEVER LOCK

SN: 2001-2050

1шт.

13

150-98-26130

CHART, LUBRICATION

SN: 2001-UP

1шт.

14

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 2001-UP

1шт.

15

09670-00001

PLATE, OPERATING,ANGLE BLADE LEVER

SN: 2001-UP

1шт.

15

09670-00003

PLATE, OPERATING,STRAIGHT TILT BLADE LEVER

SN: 2001-UP

1шт.

16

09685-00003

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 2051-UP

1шт.

16

09685-30216

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 2001-2050

1шт.

17

09671-35468

PLATE, OPERATING,RIPPER CONTROL LEVER

SN: 2001-UP

1шт.

18

09685-00001

PLATE, OPERATING,RIPPER CONTROL LEVER LOCK

SN: 2051-UP

1шт.

18

09685-30016

PLATE, OPERATING,RIPPER CONTROL LEVER LOCK

SN: 2001-2050

1шт.

19

09655-30120

PLATE, INSTRUCTION,OIL FILTER

SN: 2001-UP

1шт.

20

09653-03000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 2001-UP

1шт.

21

195-98-12940

PLATE, CAUTION,SEAT BELT

SN: 2001-UP

1шт.

22

09652-30100

PLATE, CAUTION,FUEL TANK

SN: 2001-UP

1шт.

23

09656-30080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 2001-2050

1шт.

24

09691-05804

PLATE, MARK

SN: 2001-UP

2шт.

25

09692-06804

PLATE, MARK

SN: 2001-UP

1шт.

27

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

SN: 2001-UP

1шт.

28

01220-30406

SCREW

SN: 2001-UP

4шт.

29

09173-03000

PLATE, SAFETY,LUBRICATING

SN: 2001-UP

1шт.

30

09651-03000

PLATE, SAFETY,BEFORE OPERATING

SN: 2001-UP

1шт.

31

09667-03000

PLATE, SAFETY,ENGINE COVER

SN: 2001-UP

1шт.

32

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 2001-UP

1шт.

33

09666-03000

PLATE, SAFETY,FIRE PREVENTION

SN: 2001-UP

1шт.

34

178-98-12330

PLATE, OPERATING,ADJUST,WEIGHT,OPERATOR'S SEAT

SN: 2001-UP

1шт.

35

178-98-12340

PLATE, OPERATING,LEVER OPERATOR'S SEAT

SN: 2001-UP

1шт.

36

09673-38071

PLATE, OPERATING,T.W CONTROL LEVER POSITION L.H

SN: 2001-UP

1шт.

37

09664-30065

PLATE, INSTRUCTION,(FOR PUERTO RICO, U.S.A.)

SN: 2001-UP

2шт.

38

09664-30081

PLATE, INSTRUCTION,(FOR PUERTO RICO, U.S.A.)

SN: 2001-UP

2шт.
