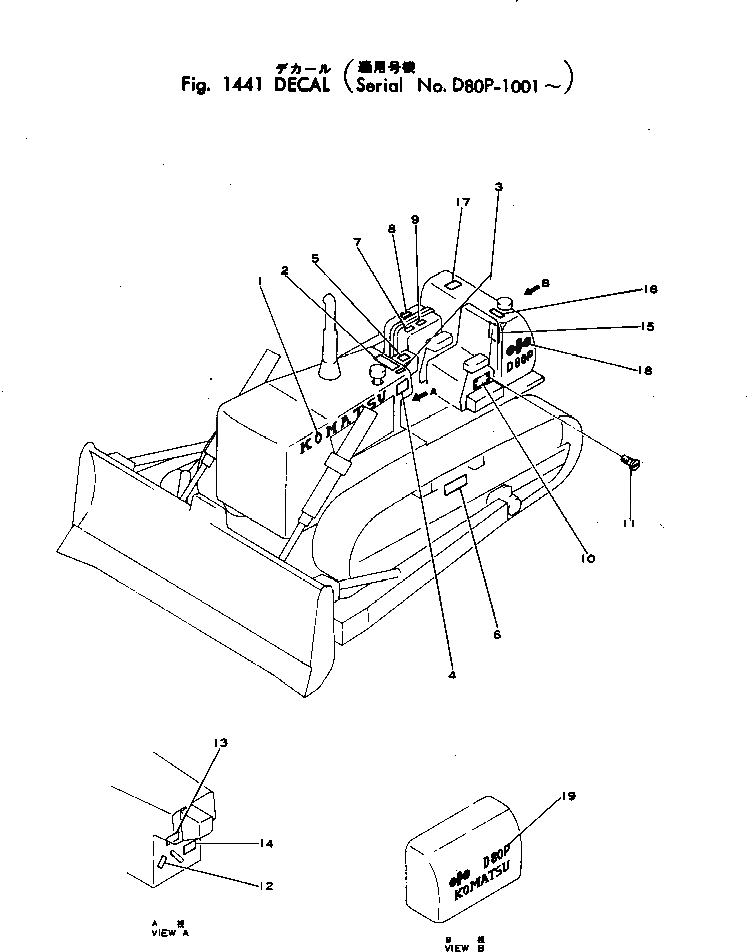

Запчасти Komatsu D80P-12 ТАБЛИЧКИ ГУСЕНИЦЫ И ЧАСТИ КОРПУСА

1

150-54-17132

MARK

SN: 1001-UP

2шт.

2

154-01-11511

PLATE, CAUTION,STARTING IN COLD WEATHER

SN: 1001-UP

1шт.

3

150-98-11280

PLATE, CAUTION,MAIN CLUTCH

SN: 1001-UP

1шт.

4

150-04-12430

PLATE, CAUTION,SHUTT OFF VALVE

SN: 1001-UP

1шт.

5

150-98-11290

PLATE, OPERATING,TRANSMISSION

SN: 1001-UP

1шт.

6

150-30-11621

PLATE, CAUTION,TRACK ADJUSTING

SN: 1001-UP

1шт.

7

09654-00060

PLATE, SAFETY

SN: 1001-UP

1шт.

8

09653-00080

PLATE, SAFETY,HYDRAULIC TANK

SN: 1001-UP

1шт.

9

175-900-2320

PLATE, OPERATING,BLADE CONTROL

SN: 1001-UP

1шт.

10

09602-01643

PLATE, NAME

SN: 1001-UP

1шт.

11

01210-50412

SCREW

SN: 1001-UP

4шт.

12

09682-00070

PLATE, OPERATING,COMPRESSION RELEASE

SN: 1001-UP

1шт.

13

09649-00400

PLATE, INSTRUCTION,ENGINE STOP

SN: 1001-UP

1шт.

14

150-43-17340

PLATE, CAUTION

SN: 1001-UP

1шт.

15

150-98-11176

CHART, LUBRICATION

SN: 1007-UP

1шт.

15

150-98-11170

CHART, LUBRICATION

SN: 1001-1006

1шт.

16

09652-00100

PLATE, CAUTION,FUEL TANK

SN: 1001-UP

1шт.

17

150-98-25111

PLATE, DATA,(FOR JAPAN)

SN: 1007-UP

1шт.

17

150-98-25110

PLATE, DATA,(FOR JAPAN)

SN: 1001-1006

1шт.

18

09691-05804

PLATE, MARK

SN: 1001-UP

2шт.

19

09692-06804

PLATE, MARK

SN: 1001-UP

1шт.
