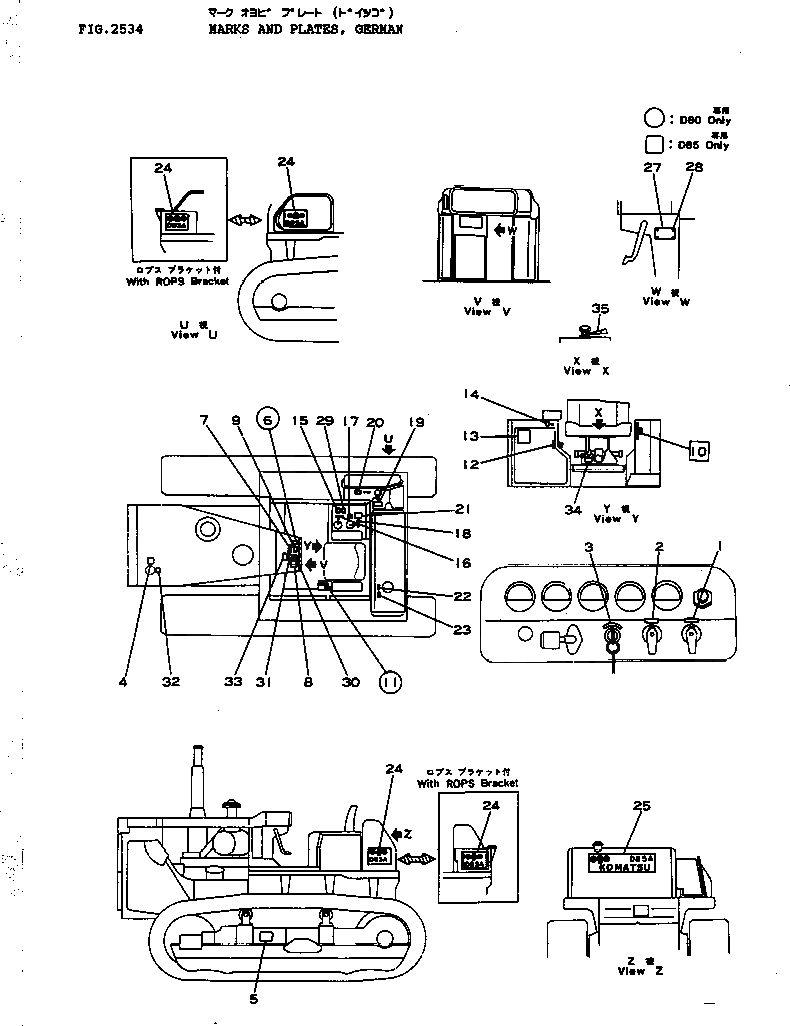

Запчасти Komatsu D80A-18 МАРКИРОВКА¤ ПОРТУГАЛ. ЧАСТИ КОРПУСА

1

09609-24007

PLATE, NAME,PREHEATER SWITCH

SN: 25001-UP

1шт.

2

09609-24008

PLATE, NAME,LAMP SWITCH

SN: 25001-UP

1шт.

3

09683-20050

PLATE, OPERATING,STARTING SWITCH

SN: 25001-UP

1шт.

4

09650-21101

PLATE, INSTRUCTION,RADIATOR

SN: 25001-UP

1шт.

5

09657-02000

PLATE, SAFETY,TRACK ADJUSTING

SN: 25001-UP

1шт.

6

09674-20074

PLATE, OPERATING,TRANSMISSION CONTROL LEVER

SN: 25001-UP

1шт.

7

175-900-2261

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 25001-UP

1шт.

8

09654-02000

PLATE, SAFETY,WARNING

SN: 25001-UP

1шт.

9

09649-80400

PLATE, INSTRUCTION,ENGINE STOP

SN: 25001-UP

1шт.

11

09687-20070

PLATE, OPERATING,MAIN CLUTCH LEVER

SN: 25001-UP

1шт.

12

09685-20016

PLATE, OPERATING,PARKING BRAKE LEVER LOCK

SN: 25001-UP

1шт.

13

150-98-11311

CHART, LUBRICATION

SN: 25001-UP

1шт.

14

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 25001-UP

1шт.

15

09670-20270

PLATE, OPERATING,ANGLE BLADE LEVER

SN: 25001-UP

1шт.

15

09670-20070

PLATE, OPERATING,STRAIGHT TILT BLADE LEVER

SN: 25001-UP

1шт.

16

09685-20216

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 25001-UP

1шт.

17

09671-20468

PLATE, OPERATING,RIPPER CONTROL LEVER

SN: 25001-UP

1шт.

18

09685-20016

PLATE, OPERATING,RIPPER CONTROL LEVER LOCK

SN: 25001-UP

1шт.

19

09655-21120

PLATE, INSTRUCTION,OIL FILTER

SN: 25001-UP

1шт.

20

09653-02000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 25001-UP

1шт.

21

195-98-12980

PLATE, CAUTION,SEAT BELT

SN: 25001-UP

1шт.

22

09652-21100

PLATE, CAUTION,FUEL TANK

SN: 25001-UP

1шт.

23

09656-21080

PLATE, INSTRUCTION,FUEL TANK STRAINER

SN: 25001-UP

1шт.

24

09691-05802

PLATE, MARK,D80A

SN: 25001-UP

2шт.

25

09692-06802

PLATE, MARK,D80A

SN: 25001-UP

1шт.

27

09602-21643

PLATE, NAME,(LIMITED SUPPLY)

SN: 25001-UP

1шт.

28

01220-30406

SCREW

SN: 25001-UP

4шт.

29

09173-02000

PLATE, SAFETY,LUBRICATING

SN: 25001-UP

1шт.

30

09651-02000

PLATE, SAFETY,BEFORE OPERATING

SN: 25001-UP

1шт.

31

09667-02000

PLATE, SAFETY,ENGINE COVER

SN: 25001-UP

1шт.

32

09668-02000

PLATE, SAFETY,RADIATOR CAP

SN: 25001-UP

1шт.

33

09666-02000

PLATE, SAFETY,FIRE PREVENTION

SN: 25001-UP

1шт.

34

178-98-12330

PLATE, OPERATING,OPERATOR'S SEAT (ENGLISH)

SN: 25001-UP

1шт.

34

178-98-12290

PLATE, OPERATING,OPERATOR'S SEAT (GERMAN)

SN: 25001-UP

1шт.

35

178-98-12310

PLATE, OPERATING,LEVER OPERATOR'S SEAT

SN: 25001-UP

1шт.
