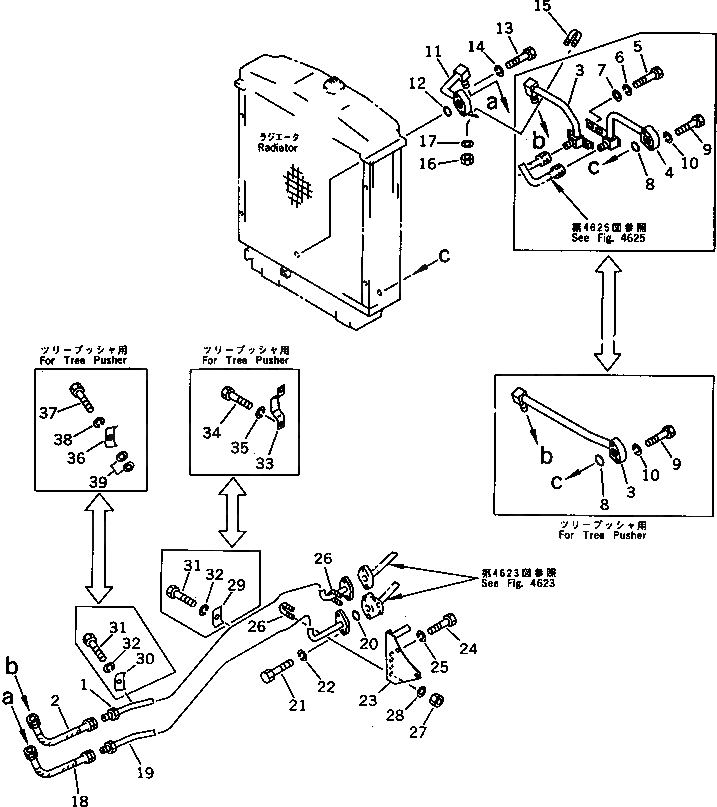

Запчасти Komatsu D75A-1 СИСТЕМА ТРУБ ТРАНСМИССИИ (/) СИСТЕМА УПРАВЛЕНИЯ

1

144-49-52151

TUBE

SN: 50001-UP

1шт.

1

15B-49-12150

TUBE,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

2

144-49-53310

HOSE

SN: 50001-UP

1шт.

3

144-49-61270

TUBE

SN: 50001-UP

1шт.

3

144-49-52220

TUBE,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

4

144-49-61260

TUBE

SN: 50001-UP

1шт.

5

01010-51025

BOLT

SN: 50001-UP

2шт.

6

01602-21030

WASHER,SPRING

SN: 50001-UP

2шт.

7

01643-31032

WASHER

SN: 50001-UP

2шт.

8

07000-03025

O-RING

SN: 50001-UP

1шт.

9

01010-51055

BOLT

SN: 50001-UP

2шт.

10

01602-21030

WASHER,SPRING

SN: 50001-UP

2шт.

11

144-49-52210

TUBE

SN: 50001-UP

1шт.

12

07000-03025

O-RING

SN: 50001-UP

1шт.

13

01010-51055

BOLT

SN: 50001-UP

2шт.

14

01602-21030

WASHER,SPRING

SN: 50001-UP

2шт.

15

07283-22738

CLIP

SN: 50001-UP

1шт.

16

01599-01011

NUT

SN: 50001-UP

2шт.

17

01643-31032

WASHER

SN: 50001-UP

2шт.

18

144-49-53310

HOSE

SN: 50001-UP

1шт.

19

144-49-52161

TUBE

SN: 50001-UP

1шт.

19

15B-49-12160

TUBE,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

20

07000-03025

O-RING

SN: 50001-UP

1шт.

21

01010-51030

BOLT

SN: 50001-UP

2шт.

21

07372-21030

BOLT,(FOR TREE PUSHER)

SN: 50001-UP

2шт.

22

01602-21030

WASHER,SPRING

SN: 50001-UP

2шт.

22

01643-51032

WASHER,(FOR TREE PUSHER)

SN: 50001-UP

2шт.

23

144-49-52140

BRACKET

SN: 50001-UP

1шт.

23

15B-49-12240

BRACKET,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

24

01010-51240

BOLT

SN: 50001-UP

2шт.

25

01602-21236

WASHER,SPRING

SN: 50001-UP

2шт.

26

07283-12236

CLIP

SN: 50001-UP

2шт.

26

07283-32738

CLIP,(FOR TREE PUSHER)

SN: 50001-UP

2шт.

27

01599-01011

NUT

SN: 50001-UP

4шт.

28

01643-31032

WASHER

SN: 50001-UP

4шт.

29

144-49-53160

PLATE

SN: 50001-UP

1шт.

30

111-923-3130

CLAMP

SN: 50001-UP

1шт.

31

01010-51025

BOLT

SN: 50001-UP

1шт.

32

01602-21030

WASHER,SPRING

SN: 50001-UP

1шт.

33

15B-49-11120

CLIP,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

34

01010-51025

BOLT,(FOR TREE PUSHER)

SN: 50001-UP

2шт.

35

01602-21030

WASHER,(FOR TREE PUSHER)

SN: 50001-UP

2шт.

36

15B-49-11130

PLATE,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

37

01010-51030

BOLT,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

38

01602-21030

WASHER,(FOR TREE PUSHER)

SN: 50001-UP

1шт.

39

01643-31032

WASHER,(FOR TREE PUSHER)

SN: 50001-UP

2шт.
