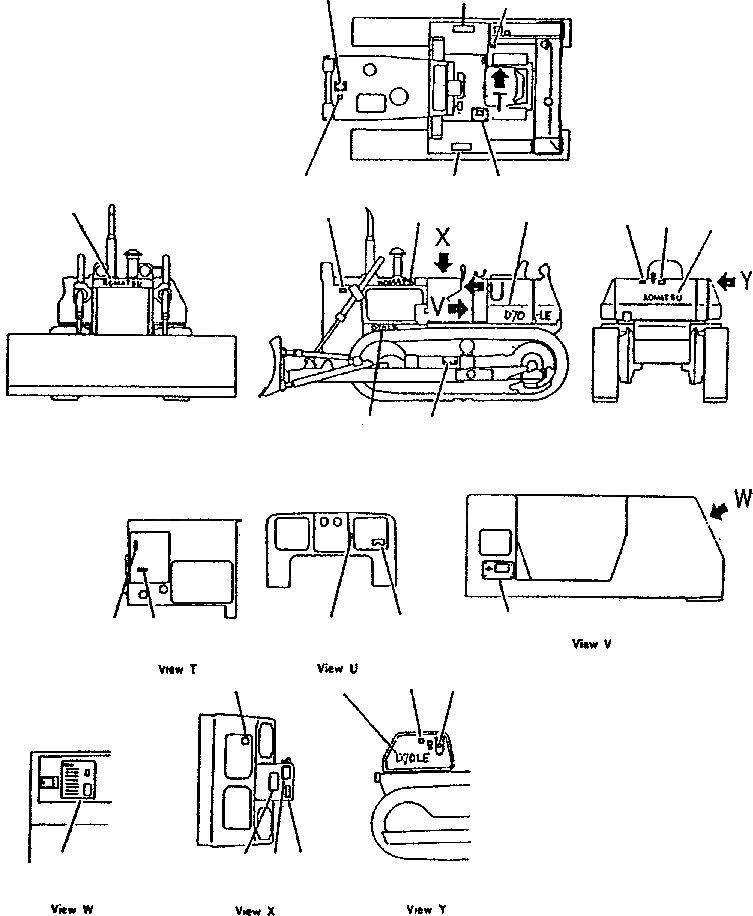

Запчасти Komatsu D70-LE МАРКИРОВКА (ИНДОНЕЗ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09670-00001

PLATE, WORK EQUIPMENT CONTROL LEVER

Field_1: J10071-

1шт.

2

09650-05101

PLATE, INSTRUCTION, RADIATOR WATER LEVEL

Field_1: J10071-

1шт.

3

09668-00500

PLATE, SAFETY, RADIATOR CAP

Field_1: J10071-

1шт.

4

20X-54-12410

SHEET, ANTISKID

Field_1: J10071-

2шт.

5

09687-05070

PLATE, OPERATING, MAIN CLUTCH

Field_1: J10071-

1шт.

6

09690-B0280

MARK, KOMATSU

Field_1: J10071-

1шт.

7

09667-00500

PLATE, SAFETY, ENGINE COVER

Field_1: J10071-

2шт.

8

09690-C0630

PLATE, MARK, KOMATSU

Field_1: J10071-

1шт.

8A

09690-C0315

PLATE, MARK, KOMATSU

Field_1: J10071-

2шт.

9

144-54-J1140

PLATE, MARK, D70

Field_1: J10071-

1шт.

|$11

144-54-J1150

PLATE, MARK, -LE

Field_1: J10071-

1шт.

10

144-54-18260

PLATE, MARK, D70-LE

Field_1: J10071-

3шт.

|$13

144-54-J1160

PLATE, MARK, D70-LE

Field_1: J10071-

4шт.

11

09657-00511

PLATE, SAFETY, TRACK SHOE ADUSTMENT

Field_1: J10071-

2шт.

12

09652-05101

PLATE, CAUTION, FUEL TANK

Field_1: J10071-

1шт.

13

09656-05080

PLATE, INSTRUCTION, FUEL TANK STRAINER

Field_1: J10071-

1шт.

14

09685-00001

PLATE, OPERATING, WORK EQUIPMENT LOCK LEVER

Field_1: J10071-

1шт.

15

09685-00004

PLATE, OPERATING, LOCK LEVER

Field_1: J10071-

1шт.

16

08670-12001

INDICATOR, DUST

Field_1: J10071-

1шт.

17

09683-05060

PLATE, OPERATING, STARTING SWITCH

Field_1: J10071-

1шт.

18

20Y-00-J1110

PLATE, NAME (LIMITED SUPPLY)

Field_1: J10071-

1шт.

|$22

04418-13060

SCREW

Field_1: J10071-

4шт.

19

144-54-J1460

CHART, OIL

Field_1: J10061-

1шт.

20

09674-00005

PLATE, OPERATING, TRANSMISSION CONTROL LEVER

Field_1: J10061-

1шт.

21

09654-00500

PLATE, SAFETY, STARTING AND LEAVING SEAT

Field_1: J10061-

1шт.

22

09173-00500

PLATE, SAFETY, INSTRUCTION AND MAINTENANCE

Field_1: J10061-

1шт.

23

09651-00500

PLATE, SAFETY, BEFORE OPERATING

Field_1: J10061-

1шт.

24

09653-00500

PLATE, SAFETY, HYDRAULIC TANK

Field_1: J10061-

1шт.

25

09655-05120

PLATE, INSTRUCTION, OIL FILTER

Field_1: J10061-

1шт.
