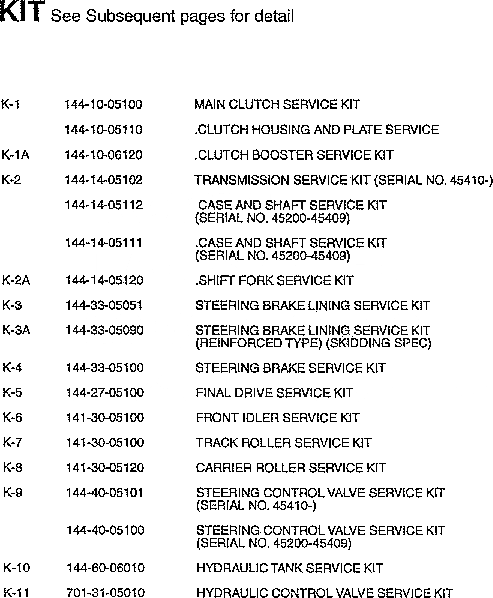

Запчасти Komatsu D70-LE РЕМ. КОМПЛЕКТЫ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

144-10-05100

SERVICE KIT, MAIN CLUTCH

Field_1: J10001-

1шт.

|$2

144-10-05110

SERVICE KIT, CLUTCH HOUSING AND PLATE

Field_1: J10001-

1шт.

|$3

141-10-32120

GASKET, HOUSING

Field_1: J10001-

1шт.

|$4

07000-03032

O-RING, DRAIN PLUG

Field_1: J10001-

1шт.

|$5

07012-10085

SEAL, SHAFT

Field_1: J10001-

1шт.

|$6

07000-03025

O-RING, PIPING

Field_1: J10001-

2шт.

|$7

07000-02080

O-RING, COVER

Field_1: J10001-

2шт.

|$8

141-10-32143

GASKET, COVER

Field_1: J10001-

1шт.

|$9

07000-03092

O-RING, STRAINER

Field_1: J10001-

1шт.

|$10

170-10-16490

GASKET, STRAINER

Field_1: J10001-

1шт.

|$11

04050-02025

PIN, STRAINER

Field_1: J10001-

1шт.

|$12

07002-02434

O-RING, GAUGE

Field_1: J10001-

2шт.

|$13

07000-03048

O-RING, PIPING

Field_1: J10001-

1шт.

|$14

07000-03025

O-RING, COVER

Field_1: J10001-

1шт.

|$15

141-10-31220

PLATE, RETAINER

Field_1: J10001-

1шт.

|$16

150-10-11180

WASHER, GUIDE

Field_1: J10001-

3шт.

|$17

04050-04030

PIN, LINK

Field_1: J10001-

10шт.

|$18

04050-04040

PIN, COLLAR

Field_1: J10001-

5шт.

|$19

04050-04035

PIN, BLOCK

Field_1: J10001-

2шт.

|$20

150-10-21410

WASHER, NUT

Field_1: J10001-

1шт.

|$21

07000-05055

O-RING, COUPLING

Field_1: J10001-

1шт.

|$22

04050-02022

PIN, INERTIA BRAKE

Field_1: J10001-

1шт.

|$23

04050-02012

PIN, INERTIA BRAKE

Field_1: J10001-

1шт.

2A

144-10-05120

SERVICE KIT, CLUTCH BOOSTER

Field_1: J10001-

1шт.

|$25

141-10-34120

GASKET, HOUSING

Field_1: J10001-

1шт.

|$26

170-10-15130

O-RING, HOUSING

Field_1: J10001-

1шт.

|$27

141-10-34150

GASKET, BRACKET

Field_1: J10001-

1шт.

|$28

07017-00022

SEAL, VALVE

Field_1: J10001-

1шт.

|$29

07000-03040

O-RING, COVER

Field_1: J10001-

1шт.

|$30

170-10-15211

WASHER, COUPLING

Field_1: J10001-

1шт.

|$31

04050-03020

PIN, LINK

Field_1: J10001-

2шт.

|$32

170-10-15330

O-RING, VALVE

Field_1: J10001-

1шт.

|$33

170-10-91130

PACKING, VALVE

Field_1: J10001-

1шт.

|$34

07000-02014

O-RING, VALVE

Field_1: J10001-

1шт.

|$35

06122-02204

SEAL, BRACKET

Field_1: J10001-

4шт.

|$36

04050-02018

PIN, GUIDE

Field_1: J10001-

1шт.

2

144-14-05102

SERVICE KIT, TRANSMISSION

Field_1: J10001-

1шт.

|$38

144-14-05112

SERVICE KIT, CASE AND SHAFT

Field_1: J10001-

1шт.

|$39

07002-32434

O-RING, DRAIN PLUG

Field_1: J10001-

1шт.

|$40

07002-02434

O-RING, DRAIN PLUG

Field_1: J10001-

1шт.

|$41

07000-05440

O-RING, CASE MOUNTING

Field_1: J10001-

1шт.

|$42

07000-63025

O-RING, TUBE

Field_1: J10001-

1шт.

|$43

07000-62140

O-RING, COVER

Field_1: J10001-

1шт.

|$44

144-14-54620

O-RING, CASE

Field_1: J10001-

1шт.

|$45

07000-65165

O-RING, CAGE

Field_1: J10001-

1шт.

|$46

07012-10085

SEAL, COUPLING

Field_1: J10001-

1шт.

|$47

567-15-12180

O-RING, COUPLING

Field_1: J10001-

1шт.

|$48

141-14-34250

PLATE, NUT

Field_1: J10001-

1шт.

|$49

144-14-05011

SHIM KIT

Field_1: J10001-

1шт.

|$50

144-14-06011

SHIM KIT

Field_1: J10001-

1шт.

|$51

141-14-35411

GASKET, COVER

Field_1: J10001-

1шт.

|$52

141-14-35390

PLATE, HOLDER

Field_1: J10001-

3шт.

|$53

141-14-36311

GASKET, COVER

Field_1: J10001-

1шт.

2A

144-14-05120

SERVICE KIT

Field_1: J10001-

1шт.

|$55

04059-01625

WIRE

Field_1: J10001-

7шт.

|$56

141-14-32321

GASKET, CASE

Field_1: J10001-

1шт.

|$57

141-14-32350

GASKET, COVER

Field_1: J10001-

2шт.

|$58

141-14-32521

GASKET, COVER

Field_1: J10001-

1шт.

|$59

07012-00025

SEAL, SHAFT

Field_1: J10001-

1шт.

|$60

07012-00022

SEAL, SHAFT

Field_1: J10001-

1шт.

|$61

04059-01025

WIRE, LEVER

Field_1: J10001-

1шт.

|$62

141-14-32540

GASKET, COVER

Field_1: J10001-

1шт.

|$63

141-14-32432

GASKET, COVER

Field_1: J10001-

2шт.

|$64

07000-03048

O-RING, COVER

Field_1: J10001-

1шт.

|$65

07011-00020

SEAL, SHAFT

Field_1: J10001-

1шт.

|$66

04050-01012

PIN, LEVER

Field_1: J10001-

1шт.

|$67

07000-02100

O-RING, ADAPTER

Field_1: J10001-

1шт.

|$68

07000-02015

O-RING, SHAFT

Field_1: J10001-

2шт.

|$69

04050-05040

PIN, LEVER

Field_1: J10001-

1шт.

3

144-33-05051

SERVICE KIT, STEERING BRAKE LINING

Field_1: J10001-

2шт.

|$71

144-33-51610

LINING, BRAKE

Field_1: J10001-

2шт.

|$72

144-33-51610

LINING, BRAKE

Field_1: J10001-

2шт.

|$73

144-33-51630

LINING, BRAKE

Field_1: J10001-

6шт.

|$74

04412-00512

RIVET

Field_1: J10001-

64шт.

3A

144-33-05090

SERVICE KIT (SKIDDING SPEC.)

Field_1: J10001-

2шт.

|$76

144-33-61120

LINING, BRAKE (SKIDDING SPEC)

Field_1: J10001-

2шт.

|$77

144-33-61120

LINING, BRAKE (SKIDDING SPEC)

Field_1: J10001-

2шт.

|$78

144-33-61130

LINING, BRAKE (SKIDDING SPEC)

Field_1: J10001-

6шт.

|$79

04412-00512

RIVET (SKIDDING SPEC)

Field_1: J10001-

64шт.

4

144-33-05100

SERVICE KIT, STEERING BRAKE

Field_1: J10001-

2шт.

|$81

144-33-21340

GASKET, COVER

Field_1: J10001-

1шт.

|$82

144-33-21140

GASKET, COVER

Field_1: J10001-

1шт.

|$83

144-33-21160

GASKET, COVER

Field_1: J10001-

1шт.

|$84

04050-24028

PIN, COTTER

Field_1: J10001-

1шт.

|$85

07012-00035

SEAL, SHAFT

Field_1: J10001-

1шт.

|$86

04050-24028

PIN, COTTER

Field_1: J10001-

5шт.

|$87

07000-03022

O-RING, SHAFT

Field_1: J10001-

1шт.

|$88

07000-03025

O-RING, SHAFT

Field_1: J10001-

1шт.

5

144-27-05100

SERVICE KIT, FINAL DRIVE

Field_1: J10001-

2шт.

|$90

141-27-31240

GASKET, CASE

Field_1: J10001-

1шт.

|$91

07000-05345

O-RING

Field_1: J10001-

1шт.

|$92

150-27-00270

O-RING ASS'Y

Field_1: J10001-

1шт.

|$93

07000-05345

O-RING

Field_1: J10001-

1шт.

|$94

07000-05270

O-RING

Field_1: J10001-

1шт.

|$95

07000-05230

O-RING

Field_1: J10001-

1шт.

|$96

144-27-11150

PLATE, LOCK

Field_1: J10001-

2шт.

|$97

130-27-51140

PLATE, LOCK

Field_1: J10001-

1шт.

|$98

145-27-11240

GASKET

Field_1: J10001-

1шт.

|$99

07013-00090

SEAL OIL

Field_1: J10001-

1шт.

|$100

07000-05165

O-RING

Field_1: J10001-

1шт.

|$101

135-27-21270

WASHER, LOCK

Field_1: J10001-

1шт.

|$102

141-27-31270

LOCK

Field_1: J10001-

6шт.

|$103

07000-05170

O-RING

Field_1: J10001-

1шт.

|$104

150-27-00190

O-RING ASS'Y

Field_1: J10001-

1шт.

|$105

154-27-15240

PLATE, LOCK

Field_1: J10001-

1шт.

|$106

154-27-15250

PLATE, LOCK

Field_1: J10001-

1шт.

|$107

07000-02140

O-RING

Field_1: J10001-

1шт.

6

141-30-05100

SERVICE KIT, FRONT IDLER

Field_1: J10001-

2шт.

|$109

07000-03052

O-RING

Field_1: J10001-

2шт.

|$110

07000-05105

O-RING

Field_1: J10001-

2шт.

|$111

141-30-00630

O-RING ASS'Y

Field_1: J10001-

2шт.

7

141-30-05100

SERVICE KIT, TRACK ROLLER

Field_1: J10001-

14шт.

|$113

07000-05105

O-RING

Field_1: J10001-

2шт.

|$114

141-30-00630

O-RING ASS'Y

Field_1: J10001-

2шт.

|$115

07000-03052

O-RING

Field_1: J10001-

2шт.

8

141-30-05120

SERVICE KIT, CARRIER ROLLER

Field_1: J10001-

4шт.

|$117

07000-03085

O-RING

Field_1: J10001-

1шт.

|$118

141-30-00630

O-RING ASS'Y

Field_1: J10001-

1шт.

|$119

07000-03120

O-RING

Field_1: J10001-

1шт.

|$120

07000-03052

O-RING

Field_1: J10001-

1шт.

9

144-40-05101

SERVICE KIT, STEERING CONTROL VALVE

Field_1: J10001-

1шт.

|$122

04050-14025

PIN COTTER

Field_1: J10001-

2шт.

|$123

04050-11212

PIN COTTER

Field_1: J10001-

2шт.

|$124

07002-03034

O-RING

Field_1: J10001-

2шт.

|$125

04050-11212

PIN COTTER

Field_1: J10001-

2шт.

|$126

01650-00808

WASHER

Field_1: J10001-

1шт.

|$127

07000-72011

O-RING

Field_1: J10001-

4шт.

|$128

07000-72015

O-RING

Field_1: J10001-

1шт.

|$129

175-40-31270

SEAL

Field_1: J10001-

2шт.

|$130

130-21-12330

LOCK

Field_1: J10001-

2шт.

|$131

144-40-22220

GASKET

Field_1: J10001-

2шт.

10

144-60-06010

SERVICE KIT, HYDRAULIC TANK

Field_1: J10001-

1шт.

|$133

07002-03634

O-RING, DRAIN PLUG

Field_1: J10001-

1шт.

|$134

07715-11257

RING

Field_1: J10001-

1шт.

|$135

07000-02125

O-RING, COVER

Field_1: J10001-

1шт.

|$136

07051-00003

GASKET, STRAINER CAP

Field_1: J10001-

1шт.

|$137

144-60-21130

GASKET, TANK

Field_1: J10001-

1шт.

|$138

130-Z20-5250

O-RING, TANK

Field_1: J10001-

1шт.

|$139

07000-02015

O-RING, COVER

Field_1: J10001-

14шт.

|$140

07000-03042

O-RING, COVER

Field_1: J10001-

2шт.

|$141

130-09-11450

SEAL, LEVER

Field_1: J10001-

1шт.

|$142

07000-03020

O-RING, PLUG

Field_1: J10001-

1шт.

11

701-31-05010

SERVICE KIT

Field_1: J10001-

1шт.

|$144

07000-13035

O-RING, SEAT

Field_1: J10001-

1шт.

|$145

07000-13045

O-RING, VALVE BODY

Field_1: J10001-

3шт.

|$146

07000-02015

O-RING, VALVE BODY

Field_1: J10001-

14шт.

|$147

07000-13035

O-RING, VALVE BODY

Field_1: J10001-

2шт.

|$148

07000-13040

O-RING, PLATE

Field_1: J10001-

1шт.

|$149

07000-13048

O-RING, RELIEF VALVE

Field_1: J10001-

2шт.

|$150

07000-13048

O-RING, SUCTION VALVE

Field_1: J10001-

1шт.

|$151

07002-13034

O-RING, SUCTION VALVE

Field_1: J10001-

1шт.
