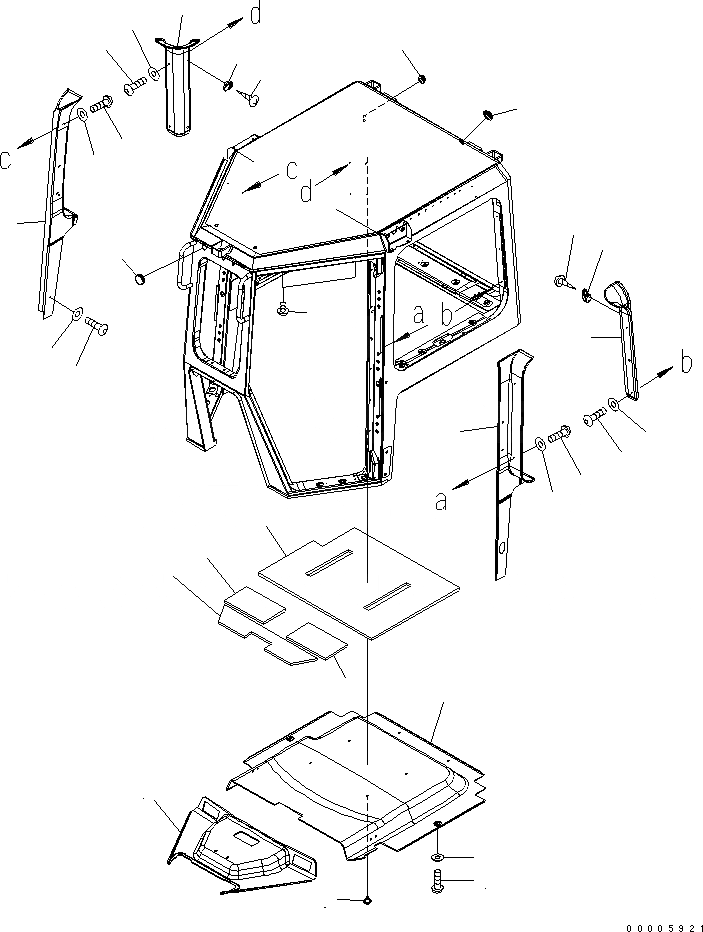

Запчасти Komatsu D65PX-15E0 КАБИНА (ВНУТР. ПОКРЫТИЕ)(№9-79) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$8

17A-Z11-0043

CAB ASS'Y

SN: 69992-70926

1шт.

|$9

17A-Z11-0042

CAB ASS'Y

SN: 69001-69991

1шт.

|$10

17A-Z11-0063

CAB ASS'Y,(RADIO LESS)

SN: 69992-70926

1шт.

|$11

17A-Z11-0062

CAB ASS'Y,(RADIO LESS)

SN: 69001-69991

1шт.

|$12

17A-Z11-0073

CAB ASS'Y,(RADIO LESS)(EU SILENT SPEC.)

SN: 69992-70926

1шт.

|$13

17A-Z11-0072

CAB ASS'Y,(RADIO LESS)(EU SILENT SPEC.)

SN: 69001-69991

1шт.

|$14

17A-Z11-0103

CAB ASS'Y,(AM/FM RADIO)

SN: 69992-70926

1шт.

|$15

17A-Z11-0102

CAB ASS'Y,(AM/FM RADIO)

SN: 69001-69991

1шт.

|$16

17A-Z11-0113

CAB ASS'Y,(FOR USA)

SN: 69992-70926

1шт.

|$17

17A-Z11-0112

CAB ASS'Y,(FOR USA)

SN: 69001-69991

1шт.

|$18

17A-Z11-0123

CAB ASS'Y,(EU SILENT SPEC.)

SN: 69992-70926

1шт.

|$19

17A-Z11-0122

CAB ASS'Y,(EU SILENT SPEC.)

SN: 69001-69991

1шт.

|$20

17A-Z11-0231

CAB ASS'Y,(FOR EUROPE OR ASIA)

SN: 69992-70926

1шт.

|$21

17A-Z11-0230

CAB ASS'Y,(FOR EUROPE OR ASIA)

SN: 69001-69991

1шт.

|$22

17A-Z11-0241

CAB ASS'Y,(FOR FIXED GLASS)

SN: 70107-70926

1шт.

|$$16

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-17A0.

-1шт.

1

17A-Z11-2711

COVER

SN: 69001-@

1шт.

2

17A-Z11-2721

COVER

SN: 69001-@

1шт.

3

20Y-54-18690

RIVET

SN: 69001-@

4шт.

4

01245-00620

SCREW

SN: 69001-@

4шт.

5

17A-Z11-2813

PLATE

SN: 69001-@

4шт.

6

17A-Z11-2850

SHEET

SN: 69001-@

1шт.

7

17A-Z11-2860

SHEET

SN: 69001-@

2шт.

8

17A-Z11-2840

SHEET

SN: 69001-@

1шт.

9

17A-Z11-2731

COVER

SN: 69001-@

1шт.

10

17A-Z11-2741

COVER

SN: 69001-@

1шт.

11

17A-Z11-2751

COVER

SN: 69001-@

1шт.

12

17A-Z11-2761

COVER

SN: 69001-@

1шт.

13

01245-00620

SCREW

SN: 69001-@

14шт.

14

17A-Z11-2812

PLATE

SN: 69001-@

14шт.

15

17A-Z11-2940

HOOK

SN: 69001-@

2шт.

16

01370-40412

SCREW

SN: 69001-@

4шт.

17

09415-01008

CAP

SN: 69001-@

2шт.

18

09415-02512

CAP

SN: 69001-@

2шт.

19

198-Z11-2790

CLIP

SN: 69001-@

4шт.
