Запчасти Komatsu D65PX-15 КАБИНА (MIRROR) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

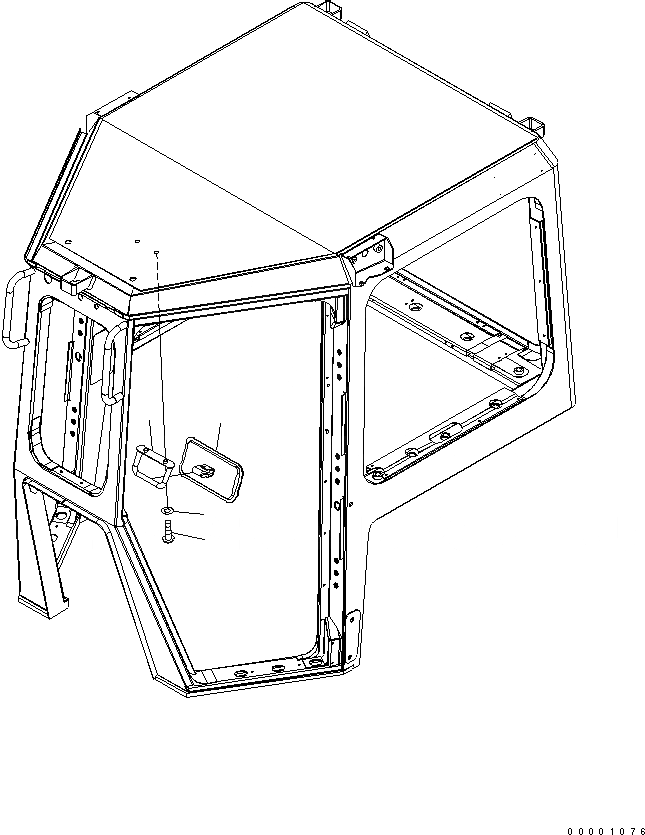

Схема запчастей Komatsu D65PX-15 - КАБИНА (MIRROR) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
2
3
4

Артикул

Название

Примечание

Количество

|$7

17A-Z11-0042

CAB ASS'Y

SN: 67207-UP

1шт.

|$8

17A-Z11-0041

CAB ASS'Y

SN: 67150-67206

1шт.

|$9

17A-Z11-0040

CAB ASS'Y

SN: 67001-67149

1шт.

|$10

17A-Z11-0062

CAB ASS'Y,(RADIO LESS)

SN: 67207-UP

1шт.

|$11

17A-Z11-0061

CAB ASS'Y,(RADIO LESS)

SN: 67150-67206

1шт.

|$12

17A-Z11-0060

CAB ASS'Y,(RADIO LESS)

SN: 67001-67149

1шт.

|$13

17A-Z11-0072

CAB ASS'Y,(RADIO LESS, HEAT GLASS)

SN: 67207-UP

1шт.

|$14

17A-Z11-0071

CAB ASS'Y,(RADIO LESS, HEAT GLASS)

SN: 67150-67206

1шт.

|$15

17A-Z11-0070

CAB ASS'Y,(RADIO LESS, HEAT GLASS)

SN: 67001-67149

1шт.

|$16

17A-Z11-0102

CAB ASS'Y,(AM/FM RADIO)

SN: 67207-UP

1шт.

|$17

17A-Z11-0101

CAB ASS'Y,(AM/FM RADIO)

SN: 67150-67206

1шт.

|$18

17A-Z11-0100

CAB ASS'Y,(AM/FM RADIO)

SN: 67001-67149

1шт.

|$19

17A-Z11-0112

CAB ASS'Y,(AM/FM CASSETTE STEREO)

SN: 67207-UP

1шт.

|$20

17A-Z11-0111

CAB ASS'Y,(AM/FM CASSETTE STEREO)

SN: 67150-67206

1шт.

|$21

17A-Z11-0110

CAB ASS'Y,(AM/FM CASSETTE STEREO)

SN: 67001-67149

1шт.

|$22

17A-Z11-0122

CAB ASS'Y,(RADIO AM/FM AND CASSETTE)

SN: 67207-UP

1шт.

|$23

17A-Z11-0121

CAB ASS'Y,(RADIO AM/FM AND CASSETTE)

SN: 67150-67206

1шт.

|$24

17A-Z11-0120

CAB ASS'Y,(RADIO AM/FM AND CASSETTE)

SN: 67001-67149

1шт.

|$$19

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-17A0.

-1шт.

|$26

17A-Z11-0220

CAB ASS'Y,(SETO FUTOU)

SN: 67827-UP

1шт.

|$$21

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A8 TO K0210-17A8

-1шт.

1

195-Z11-2180

MIRROR

SN: 67001-UP

1шт.

2

17A-Z11-1922

BRACKET

SN: 67001-UP

1шт.

3

01245-00825

SCREW

SN: 67001-UP

2шт.

4

01643-70823

WASHER

SN: 67001-UP

2шт.

Выбрано товаров: 25
