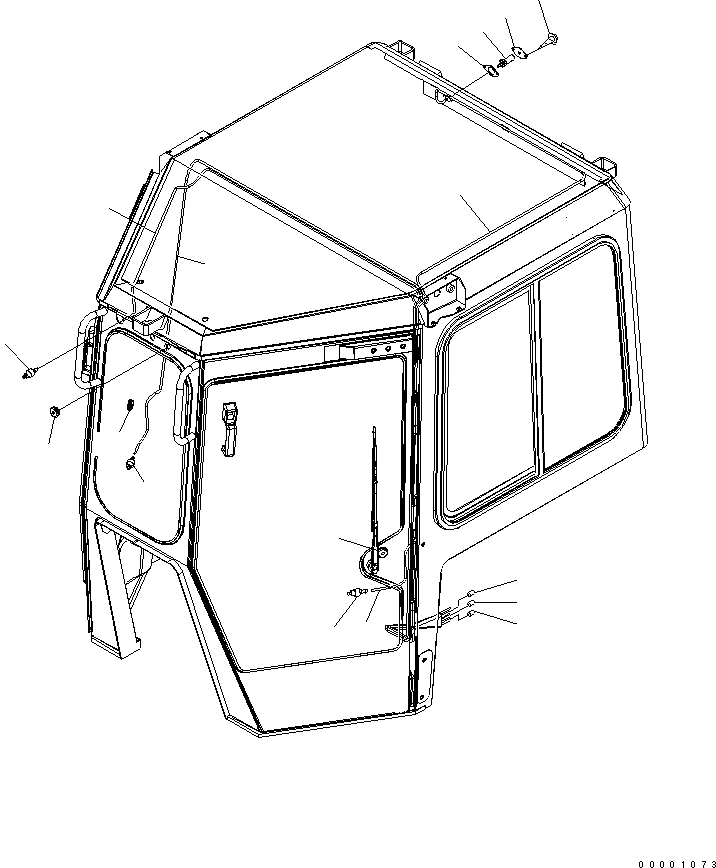

Запчасти Komatsu D65PX-15 КАБИНА (ОМЫВАТЕЛЬ ШЛАНГИ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
|$6
17A-Z11-0042
CAB ASS'Y
SN: 67207-UP
1шт.
|$7
17A-Z11-0041
CAB ASS'Y
SN: 67150-67206
1шт.
|$8
17A-Z11-0040
CAB ASS'Y
SN: 67001-67149
1шт.
|$9
17A-Z11-0062
CAB ASS'Y,(RADIO LESS)
SN: 67207-UP
1шт.
|$10
17A-Z11-0061
CAB ASS'Y,(RADIO LESS)
SN: 67150-67206
1шт.
|$11
17A-Z11-0060
CAB ASS'Y,(RADIO LESS)
SN: 67001-67149
1шт.
|$12
17A-Z11-0072
CAB ASS'Y,(RADIO LESS, HEAT GLASS)
SN: 67207-UP
1шт.
|$13
17A-Z11-0071
CAB ASS'Y,(RADIO LESS, HEAT GLASS)
SN: 67150-67206
1шт.
|$14
17A-Z11-0070
CAB ASS'Y,(RADIO LESS, HEAT GLASS)
SN: 67001-67149
1шт.
|$15
17A-Z11-0102
CAB ASS'Y,(AM/FM RADIO)
SN: 67207-UP
1шт.
|$16
17A-Z11-0101
CAB ASS'Y,(AM/FM RADIO)
SN: 67150-67206
1шт.
|$17
17A-Z11-0100
CAB ASS'Y,(AM/FM RADIO)
SN: 67001-67149
1шт.
|$18
17A-Z11-0112
CAB ASS'Y,(AM/FM CASSETTE STEREO)
SN: 67207-UP
1шт.
|$19
17A-Z11-0111
CAB ASS'Y,(AM/FM CASSETTE STEREO)
SN: 67150-67206
1шт.
|$20
17A-Z11-0110
CAB ASS'Y,(AM/FM CASSETTE STEREO)
SN: 67001-67149
1шт.
|$21
17A-Z11-0122
CAB ASS'Y,(RADIO AM/FM AND CASSETTE)
SN: 67207-UP
1шт.
|$22
17A-Z11-0121
CAB ASS'Y,(RADIO AM/FM AND CASSETTE)
SN: 67150-67206
1шт.
|$23
17A-Z11-0120
CAB ASS'Y,(RADIO AM/FM AND CASSETTE)
SN: 67001-67149
1шт.
|$$19
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-17A0.
-1шт.
2
14X-911-3560
BRACKET
SN: 67001-UP
1шт.
3
14X-911-3570
PACKING
SN: 67001-UP
1шт.
4
01370-00408
SCREW
SN: 67001-UP
2шт.
5
17A-Z11-2610
HOSE, 2200MM
SN: 67001-UP
1шт.
6
17A-Z11-2620
HOSE, 500MM
SN: 67001-UP
1шт.
7
17A-Z11-2630
HOSE, 4000MM
SN: 67001-UP
1шт.
8
17A-Z11-2640
HOSE, 3600MM
SN: 67001-UP
1шт.
9
14X-911-1130
TUBE
SN: 67001-UP
1шт.
10
14X-911-1140
TUBE
SN: 67001-UP
1шт.
11
14X-911-1150
TUBE
SN: 67001-UP
1шт.
12
17A-Z11-4610
VALVE
SN: 67806-UP
3шт.
12
195-979-8590
VALVE
SN: 67317-67805
3шт.
12
17A-Z11-2650
JOINT
SN: 67001-67316
3шт.
13
17A-Z11-2660
CAP
SN: 67001-UP
3шт.
Выбрано товаров: 34
