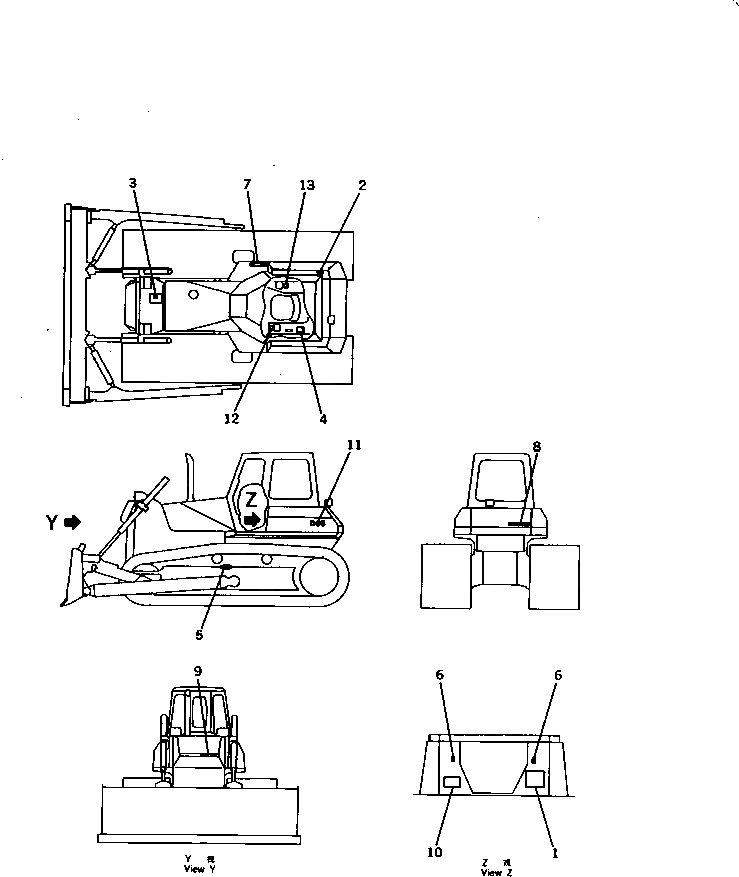

Запчасти Komatsu D65PX-12U МАРКИРОВКА (ИТАЛИЯ) (DPX)(№88-77) МАРКИРОВКА

1

14X-98-12612

OIL CHART

SN: 60941-@

1шт.

1

14X-98-12611

OIL CHART

SN: 60884-60940

1шт.

2

14X-98-12620

PLATE, SAFETY,OPERATING OIL TANK

SN: 60884-62773

1шт.

3

14X-98-12630

PLATE, SAFETY,RADIATOR

SN: 60884-62773

1шт.

4

14X-98-12640

PLATE, CAUTION,BEFORE AND AFTER OPERATION

SN: 60884-62773

1шт.

5

14X-98-12650

PLATE, SAFETY,ADJUSTING TRACK SHOE

SN: 60884-62773

2шт.

6

14X-98-11170

PLATE, OPERATING,LOCK

SN: 60884-@

2шт.

7

14X-98-12660

PLATE,PRESSURE TEST (HSS)

SN: 60884-@

1шт.

8

09690-C0630

PLATE, MARK,KOMATSU, REAR

SN: 61369-@

1шт.

8

09690-C0400

PLATE, MARK,KOMATSU, REAR

SN: 60884-61368

1шт.

9

09690-B0280

PLATE, MARK,KOMATSU, FRONT

SN: 60884-@

1шт.

10

09602-61635

PLATE, NAME,(LIMITED SUPPLY)

SN: 60884-@

1шт.

10

04418-13060

SCREW

SN: 60884-@

4шт.

11

14X-98-11310

PLATE, MARK,D65PX

SN: 60884-@

2шт.

12

14X-98-11230

PLATE, OPERATING,STEERING LEVER

SN: 60884-@

1шт.

13

14X-98-11250

PLATE, OPERATING,WORK EQUIP.LEVER (TILT DOZER)

SN: 60884-@

1шт.

13

14X-98-11260

PLATE, OPERATING,WORK EQUIP.LEVER (ANGLE DOZER)

SN: 60884-@

1шт.

13

14X-98-11270

PLATE, OPERATING,WORK EQUIP.LEVER (PITCH DOZER)

SN: 60884-@

1шт.
