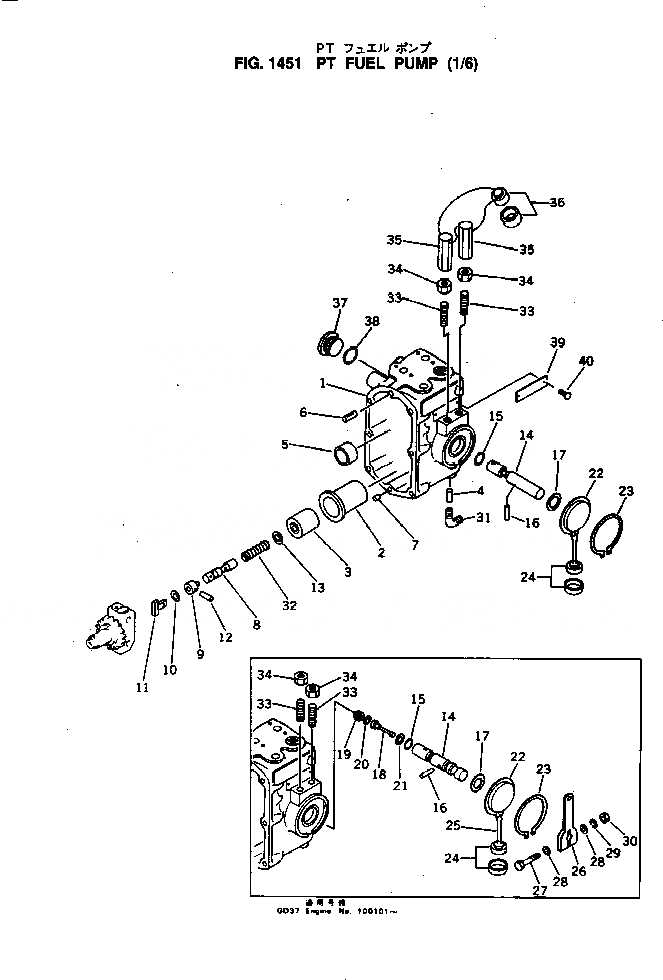

Запчасти Komatsu NH-220-CI-2KK PT ТОПЛИВН. НАСОС (/) ТОПЛИВН. СИСТЕМА
№
Артикул
Название
Примечание
Количество
|$0
6632-71-1150
PT FUEL PUMP ASS'Y,(GR-J238)
SN: 174428-UP
1шт.
|$1
6610-71-1011
HOUSING ASS'Y,FUEL PUMP
SN: 174428-UP
1шт.
1
0
HOUSING
SN: 174428-UP
1шт.
1
0
PLUG
SN: 174428-UP
1шт.
1
0
SLEEVE,THROTTLE SHAFT
SN: 174428-UP
1шт.
1
0
SLEEVE,THROTTLE SHAFT
SN: 174428-UP
1шт.
2
0
HOUSING,SPRING PACK
SN: 174428-UP
1шт.
3
6610-71-1030
BARREL ASS'Y (STD)
SN: 174428-UP
1шт.
3
6610-79-1030
BARREL ASS'Y,0.25MM (OS)
SN: 174428-UP
1шт.
3
6610-78-1030
BARREL ASS'Y,0.50MM (OS)
SN: 174428-UP
1шт.
3
0
BARREL (STD)
SN: 174428-UP
1шт.
3
0
BARREL,0.25MM (OS)
SN: 174428-UP
1шт.
3
0
BARREL,0.50MM (OS)
SN: 174428-UP
1шт.
3
0
SLEEVE (STD)
SN: 174428-UP
1шт.
3
0
SLEEVE,0.25MM (OS)
SN: 174428-UP
1шт.
3
0
SLEEVE,0.50MM (OS)
SN: 174428-UP
1шт.
4
6610-71-1180
CLIP
SN: 174428-UP
1шт.
5
0
BUSHING
SN: 174428-UP
1шт.
6
6610-71-1160
PIN,DOWEL
SN: 174428-UP
1шт.
7
6610-71-1151
RING,DOWEL
SN: 174428-UP
2шт.
|$21
6631-71-1040
PLUNGER ASS'Y,RED, CLASS 0
SN: 174428-UP
1шт.
|$22
6631-79-1040
PLUNGER ASS'Y,BLUE, CLASS 1
SN: 174428-UP
1шт.
|$23
6631-78-1040
PLUNGER ASS'Y,GREEN, CLASS 2
SN: 174428-UP
1шт.
|$24
6631-77-1040
PLUNGER ASS'Y,YELLOW, CLASS 3
SN: 174428-UP
1шт.
|$25
6631-76-1040
PLUNGER ASS'Y,BROWN, CLASS 4
SN: 174428-UP
1шт.
|$26
6631-75-1040
PLUNGER ASS'Y,BLACK, CLASS 5
SN: 174428-UP
1шт.
|$27
6631-74-1040
PLUNGER ASS'Y,GREY, CLASS 6
SN: 174428-UP
1шт.
|$28
6631-73-1040
PLUNGER ASS'Y,PURPLE, CLASS 7
SN: 174428-UP
1шт.
8
6631-71-1410
PLUNGER,RED, CLASS 0
SN: 174428-UP
1шт.
8
6631-79-1410
PLUNGER,BLUE, CLASS 1
SN: 174428-UP
1шт.
8
6631-78-1410
PLUNGER,GREEN, CLASS 2
SN: 174428-UP
1шт.
8
6631-77-1410
PLUNGER,YELLOW, CLASS 3
SN: 174428-UP
1шт.
8
6631-76-1410
PLUNGER,BROWN, CLASS 4
SN: 174428-UP
1шт.
8
6631-75-1410
PLUNGER,BLACK, CLASS 5
SN: 174428-UP
1шт.
8
6631-74-1410
PLUNGER,GREY, CLASS 6
SN: 174428-UP
1шт.
8
6631-73-1410
PLUNGER,PURPLE, CLASS 7
SN: 174428-UP
1шт.
9
6610-71-1452
SPACER
SN: 174428-UP
1шт.
10
6610-71-1420
WASHER,THRUST
SN: 174428-UP
1шт.
11
6610-71-1430
DRIVE,GOVERNOR PLUNGER
SN: 174428-UP
1шт.
12
6610-71-1440
PIN,GOVERNOR PLUNGER
SN: 174428-UP
1шт.
13
6610-71-1460
SHIM, 0.13MM,PLUNGER
SN: 174428-UP
-2шт.
13
6610-71-1470
SHIM, 0.25MM,PLUNGER
SN: 174428-UP
-2шт.
13
6610-71-1480
SHIM, 0.51MM,PLUNGER
SN: 174428-UP
-2шт.
|$44
6610-71-1090
SHAFT ASS'Y,THROTTLE, RED, CLASS 0
SN: 174428-UP
1шт.
|$45
6610-79-1090
SHAFT ASS'Y,THROTTLE, BLUE, CLASS 1
SN: 174428-UP
1шт.
|$46
6610-78-1090
SHAFT ASS'Y,THROTTLE, GREEN, CLASS 2
SN: 174428-UP
1шт.
|$47
6610-77-1090
SHAFT ASS'Y,THROTTLE, YELLOW, CLASS 3
SN: 174428-UP
1шт.
|$48
6610-76-1090
SHAFT ASS'Y,THROTTLE, BROWN, CLASS 4
SN: 174428-UP
1шт.
|$49
6610-75-1090
SHAFT ASS'Y,THROTTLE, BLACK, CLASS 5
SN: 174428-UP
1шт.
14
6610-71-1340
SHAFT,RED, CLASS 0
SN: 174428-UP
1шт.
14
6610-79-1340
SHAFT,BLUE, CLASS 1
SN: 174428-UP
1шт.
14
6610-78-1340
SHAFT,GREEN, CLASS 2
SN: 174428-UP
1шт.
14
6610-77-1340
SHAFT,YELLOW, CLASS 3
SN: 174428-UP
1шт.
14
6610-76-1340
SHAFT,BROWN, CLASS 4
SN: 174428-UP
1шт.
14
6610-75-1340
SHAFT,BLACK, CLASS 5
SN: 174428-UP
1шт.
16
6610-71-1360
PIN,SPRING
SN: 174428-UP
1шт.
17
6610-71-1370
WASHER
SN: 174428-UP
2шт.
22
6610-71-1730
COVER,THROTTLE SHAFT
SN: 174428-UP
1шт.
23
6600-01-3110
RING,SNAP
SN: 174428-UP
1шт.
24
6610-71-1760
SEAL,LEAD
SN: 174428-UP
1шт.
31
6610-81-8820
ELBOW,PRIMING PUMP
SN: 174428-UP
1шт.
32
6610-71-5170
SPRING,TORQUE CONTROL
SN: 174428-UP
1шт.
33
6610-71-1790
SCREW,SET
SN: 174428-UP
2шт.
34
02215-10406
NUT
SN: 174428-UP
2шт.
35
6610-71-3180
NUT,ADJUSTING SCREW
SN: 174428-UP
2шт.
36
6610-71-1760
SEAL,LEAD
SN: 174428-UP
1шт.
37
6610-71-1870
PLUG
SN: 174428-UP
1шт.
39
6610-71-1712
PLATE, NAME,(LIMITED SUPPLY)
SN: 174428-UP
1шт.
|$0
6632-71-1150
PT FUEL PUMP ASS'Y,(GR-J238)
SN: 174428-UP
1шт.
|$1
6610-71-1011
HOUSING ASS'Y,FUEL PUMP
SN: 174428-UP
1шт.
1
0
HOUSING
SN: 174428-UP
1шт.
1
0
PLUG
SN: 174428-UP
1шт.
1
0
SLEEVE,THROTTLE SHAFT
SN: 174428-UP
1шт.
1
0
SLEEVE,THROTTLE SHAFT
SN: 174428-UP
1шт.
2
0
HOUSING,SPRING PACK
SN: 174428-UP
1шт.
3
6610-71-1030
BARREL ASS'Y (STD)
SN: 174428-UP
1шт.
3
6610-79-1030
BARREL ASS'Y,0.25MM (OS)
SN: 174428-UP
1шт.
3
6610-78-1030
BARREL ASS'Y,0.50MM (OS)
SN: 174428-UP
1шт.
3
0
BARREL (STD)
SN: 174428-UP
1шт.
3
0
BARREL,0.25MM (OS)
SN: 174428-UP
1шт.
3
0
BARREL,0.50MM (OS)
SN: 174428-UP
1шт.
3
0
SLEEVE (STD)
SN: 174428-UP
1шт.
3
0
SLEEVE,0.25MM (OS)
SN: 174428-UP
1шт.
3
0
SLEEVE,0.50MM (OS)
SN: 174428-UP
1шт.
4
6610-71-1180
CLIP
SN: 174428-UP
1шт.
5
0
BUSHING
SN: 174428-UP
1шт.
6
6610-71-1160
PIN,DOWEL
SN: 174428-UP
1шт.
7
6610-71-1151
RING,DOWEL
SN: 174428-UP
2шт.
|$21
6631-71-1040
PLUNGER ASS'Y,RED, CLASS 0
SN: 174428-UP
1шт.
|$22
6631-79-1040
PLUNGER ASS'Y,BLUE, CLASS 1
SN: 174428-UP
1шт.
|$23
6631-78-1040
PLUNGER ASS'Y,GREEN, CLASS 2
SN: 174428-UP
1шт.
|$24
6631-77-1040
PLUNGER ASS'Y,YELLOW, CLASS 3
SN: 174428-UP
1шт.
|$25
6631-76-1040
PLUNGER ASS'Y,BROWN, CLASS 4
SN: 174428-UP
1шт.
|$26
6631-75-1040
PLUNGER ASS'Y,BLACK, CLASS 5
SN: 174428-UP
1шт.
|$27
6631-74-1040
PLUNGER ASS'Y,GREY, CLASS 6
SN: 174428-UP
1шт.
|$28
6631-73-1040
PLUNGER ASS'Y,PURPLE, CLASS 7
SN: 174428-UP
1шт.
8
6631-71-1410
PLUNGER,RED, CLASS 0
SN: 174428-UP
1шт.
8
6631-79-1410
PLUNGER,BLUE, CLASS 1
SN: 174428-UP
1шт.
8
6631-78-1410
PLUNGER,GREEN, CLASS 2
SN: 174428-UP
1шт.
8
6631-77-1410
PLUNGER,YELLOW, CLASS 3
SN: 174428-UP
1шт.
8
6631-76-1410
PLUNGER,BROWN, CLASS 4
SN: 174428-UP
1шт.
8
6631-75-1410
PLUNGER,BLACK, CLASS 5
SN: 174428-UP
1шт.
8
6631-74-1410
PLUNGER,GREY, CLASS 6
SN: 174428-UP
1шт.
8
6631-73-1410
PLUNGER,PURPLE, CLASS 7
SN: 174428-UP
1шт.
9
6610-71-1452
SPACER
SN: 174428-UP
1шт.
10
6610-71-1420
WASHER,THRUST
SN: 174428-UP
1шт.
11
6610-71-1430
DRIVE,GOVERNOR PLUNGER
SN: 174428-UP
1шт.
12
6610-71-1440
PIN,GOVERNOR PLUNGER
SN: 174428-UP
1шт.
13
6610-71-1460
SHIM, 0.13MM,PLUNGER
SN: 174428-UP
-2шт.
13
6610-71-1470
SHIM, 0.25MM,PLUNGER
SN: 174428-UP
-2шт.
13
6610-71-1480
SHIM, 0.51MM,PLUNGER
SN: 174428-UP
-2шт.
|$44
6610-71-1090
SHAFT ASS'Y,THROTTLE, RED, CLASS 0
SN: 174428-UP
1шт.
|$45
6610-79-1090
SHAFT ASS'Y,THROTTLE, BLUE, CLASS 1
SN: 174428-UP
1шт.
|$46
6610-78-1090
SHAFT ASS'Y,THROTTLE, GREEN, CLASS 2
SN: 174428-UP
1шт.
|$47
6610-77-1090
SHAFT ASS'Y,THROTTLE, YELLOW, CLASS 3
SN: 174428-UP
1шт.
|$48
6610-76-1090
SHAFT ASS'Y,THROTTLE, BROWN, CLASS 4
SN: 174428-UP
1шт.
|$49
6610-75-1090
SHAFT ASS'Y,THROTTLE, BLACK, CLASS 5
SN: 174428-UP
1шт.
14
6610-71-1340
SHAFT,RED, CLASS 0
SN: 174428-UP
1шт.
14
6610-79-1340
SHAFT,BLUE, CLASS 1
SN: 174428-UP
1шт.
14
6610-78-1340
SHAFT,GREEN, CLASS 2
SN: 174428-UP
1шт.
14
6610-77-1340
SHAFT,YELLOW, CLASS 3
SN: 174428-UP
1шт.
14
6610-76-1340
SHAFT,BROWN, CLASS 4
SN: 174428-UP
1шт.
14
6610-75-1340
SHAFT,BLACK, CLASS 5
SN: 174428-UP
1шт.
16
6610-71-1360
PIN,SPRING
SN: 174428-UP
1шт.
17
6610-71-1370
WASHER
SN: 174428-UP
2шт.
22
6610-71-1730
COVER,THROTTLE SHAFT
SN: 174428-UP
1шт.
23
6600-01-3110
RING,SNAP
SN: 174428-UP
1шт.
24
6610-71-1760
SEAL,LEAD
SN: 174428-UP
1шт.
31
6610-81-8820
ELBOW,PRIMING PUMP
SN: 174428-UP
1шт.
32
6610-71-5170
SPRING,TORQUE CONTROL
SN: 174428-UP
1шт.
33
6610-71-1790
SCREW,SET
SN: 174428-UP
2шт.
34
02215-10406
NUT
SN: 174428-UP
2шт.
35
6610-71-3180
NUT,ADJUSTING SCREW
SN: 174428-UP
2шт.
36
6610-71-1760
SEAL,LEAD
SN: 174428-UP
1шт.
37
6610-71-1870
PLUG
SN: 174428-UP
1шт.
39
6610-71-1712
PLATE, NAME,(LIMITED SUPPLY)
SN: 174428-UP
1шт.
Выбрано товаров: 144
