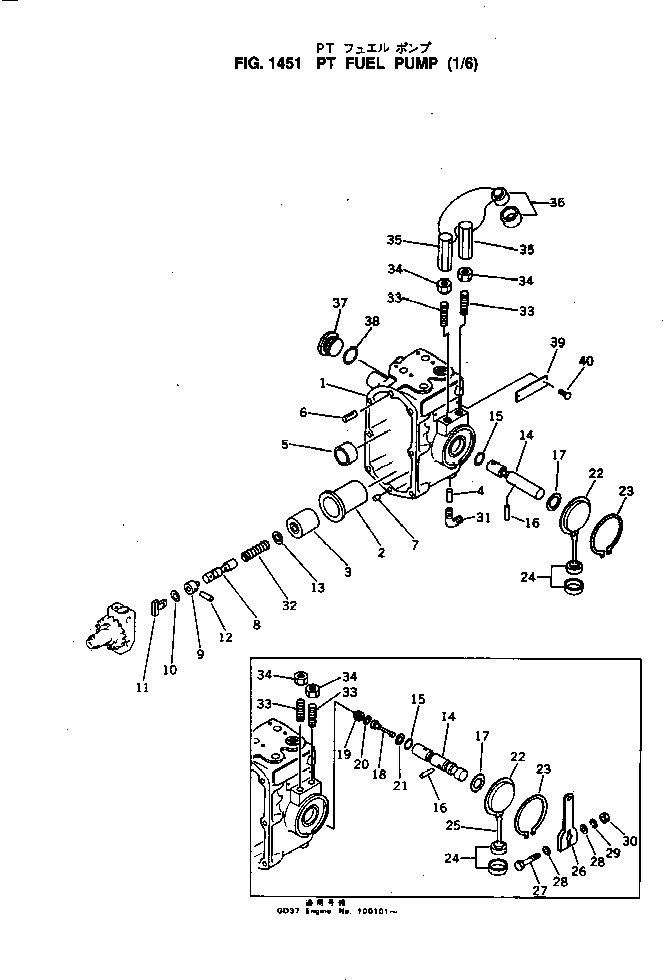

Запчасти Komatsu NH-220-CI-2KK PT ТОПЛИВН. НАСОС (/) ТОПЛИВН. СИСТЕМА

|1

6632-71-1150

PT FUEL PUMP ASS'Y,(GR-J238)

SN: 174428-UP

1шт.

|1

6610-71-1011

HOUSING ASS'Y,FUEL PUMP

SN: 174428-UP

1шт.

|1

6610-71-1020

HOUSING ASS'Y

SN: 174428-UP

1шт.

1

0

HOUSING

SN: 174428-UP

1шт.

|1

0

PLUG

SN: 174428-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 174428-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 174428-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 174428-UP

1шт.

3

6610-71-1030

BARREL ASS'Y (STD)

SN: 174428-UP

1шт.

|3

6610-79-1030

BARREL ASS'Y,0.25MM (OS)

SN: 174428-UP

1шт.

|3

6610-78-1030

BARREL ASS'Y,0.50MM (OS)

SN: 174428-UP

1шт.

|3

0

BARREL (STD)

SN: 174428-UP

1шт.

|3

0

BARREL,0.25MM (OS)

SN: 174428-UP

1шт.

|3

0

BARREL,0.50MM (OS)

SN: 174428-UP

1шт.

|3

0

SLEEVE (STD)

SN: 174428-UP

1шт.

|3

0

SLEEVE,0.25MM (OS)

SN: 174428-UP

1шт.

|3

0

SLEEVE,0.50MM (OS)

SN: 174428-UP

1шт.

4

6610-71-1180

CLIP

SN: 174428-UP

1шт.

5

0

BUSHING

SN: 174428-UP

1шт.

6

6610-71-1160

PIN,DOWEL

SN: 174428-UP

1шт.

7

6610-71-1151

RING,DOWEL

SN: 174428-UP

2шт.

|8

6631-71-1040

PLUNGER ASS'Y,RED¤ CLASS 0

SN: 174428-UP

1шт.

|8

6631-79-1040

PLUNGER ASS'Y,BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|8

6631-78-1040

PLUNGER ASS'Y,GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|8

6631-77-1040

PLUNGER ASS'Y,YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|8

6631-76-1040

PLUNGER ASS'Y,BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|8

6631-75-1040

PLUNGER ASS'Y,BLACK¤ CLASS 5

SN: 174428-UP

1шт.

|8

6631-74-1040

PLUNGER ASS'Y,GREY¤ CLASS 6

SN: 174428-UP

1шт.

|8

6631-73-1040

PLUNGER ASS'Y,PURPLE¤ CLASS 7

SN: 174428-UP

1шт.

8

6631-71-1410

PLUNGER,RED¤ CLASS 0

SN: 174428-UP

1шт.

|8

6631-79-1410

PLUNGER,BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|8

6631-78-1410

PLUNGER,GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|8

6631-77-1410

PLUNGER,YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|8

6631-76-1410

PLUNGER,BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|8

6631-75-1410

PLUNGER,BLACK¤ CLASS 5

SN: 174428-UP

1шт.

|8

6631-74-1410

PLUNGER,GREY¤ CLASS 6

SN: 174428-UP

1шт.

|8

6631-73-1410

PLUNGER,PURPLE¤ CLASS 7

SN: 174428-UP

1шт.

9

6610-71-1452

SPACER

SN: 174428-UP

1шт.

10

6610-71-1420

WASHER,THRUST

SN: 174428-UP

1шт.

11

6610-71-1430

DRIVE,GOVERNOR PLUNGER

SN: 174428-UP

1шт.

12

6610-71-1440

PIN,GOVERNOR PLUNGER

SN: 174428-UP

1шт.

13

6610-71-1460

SHIM¤ 0.13MM,PLUNGER

SN: 174428-UP

-2шт.

|13

6610-71-1470

SHIM¤ 0.25MM,PLUNGER

SN: 174428-UP

-2шт.

|13

6610-71-1480

SHIM¤ 0.51MM,PLUNGER

SN: 174428-UP

-2шт.

|14

6610-71-1090

SHAFT ASS'Y,THROTTLE¤ RED¤ CLASS 0

SN: 174428-UP

1шт.

|14

6610-79-1090

SHAFT ASS'Y,THROTTLE¤ BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|14

6610-78-1090

SHAFT ASS'Y,THROTTLE¤ GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|14

6610-77-1090

SHAFT ASS'Y,THROTTLE¤ YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|14

6610-76-1090

SHAFT ASS'Y,THROTTLE¤ BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|14

6610-75-1090

SHAFT ASS'Y,THROTTLE¤ BLACK¤ CLASS 5

SN: 174428-UP

1шт.

14

6610-71-1340

SHAFT,RED¤ CLASS 0

SN: 174428-UP

1шт.

|14

6610-79-1340

SHAFT,BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|14

6610-78-1340

SHAFT,GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|14

6610-77-1340

SHAFT,YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|14

6610-76-1340

SHAFT,BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|14

6610-75-1340

SHAFT,BLACK¤ CLASS 5

SN: 174428-UP

1шт.

15

6610-71-1320

O-RING (K6)

SN: 174428-UP

1шт.

16

6610-71-1360

PIN,SPRING

SN: 174428-UP

1шт.

17

6610-71-1370

WASHER

SN: 174428-UP

2шт.

22

6610-71-1730

COVER,THROTTLE SHAFT

SN: 174428-UP

1шт.

23

6600-01-3110

RING,SNAP

SN: 174428-UP

1шт.

24

6610-71-1760

SEAL,LEAD

SN: 174428-UP

1шт.

31

6610-81-8820

ELBOW,PRIMING PUMP

SN: 174428-UP

1шт.

32

6610-71-5170

SPRING,TORQUE CONTROL

SN: 174428-UP

1шт.

33

6610-71-1790

SCREW,SET

SN: 174428-UP

2шт.

34

02215-10406

NUT

SN: 174428-UP

2шт.

35

6610-71-3180

NUT,ADJUSTING SCREW

SN: 174428-UP

2шт.

36

6610-71-1760

SEAL,LEAD

SN: 174428-UP

1шт.

37

6610-71-1870

PLUG

SN: 174428-UP

1шт.

38

02891-02018

O-RING (K6)

SN: 174428-UP

1шт.

39

6610-71-1712

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 174428-UP

1шт.

40

04418-02550

SCREW

SN: 174428-UP

2шт.

|1

6632-71-1150

PT FUEL PUMP ASS'Y,(GR-J238)

SN: 174428-UP

1шт.

|1

6610-71-1011

HOUSING ASS'Y,FUEL PUMP

SN: 174428-UP

1шт.

|1

6610-71-1020

HOUSING ASS'Y

SN: 174428-UP

1шт.

1

0

HOUSING

SN: 174428-UP

1шт.

|1

0

PLUG

SN: 174428-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 174428-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 174428-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 174428-UP

1шт.

3

6610-71-1030

BARREL ASS'Y (STD)

SN: 174428-UP

1шт.

|3

6610-79-1030

BARREL ASS'Y,0.25MM (OS)

SN: 174428-UP

1шт.

|3

6610-78-1030

BARREL ASS'Y,0.50MM (OS)

SN: 174428-UP

1шт.

|3

0

BARREL (STD)

SN: 174428-UP

1шт.

|3

0

BARREL,0.25MM (OS)

SN: 174428-UP

1шт.

|3

0

BARREL,0.50MM (OS)

SN: 174428-UP

1шт.

|3

0

SLEEVE (STD)

SN: 174428-UP

1шт.

|3

0

SLEEVE,0.25MM (OS)

SN: 174428-UP

1шт.

|3

0

SLEEVE,0.50MM (OS)

SN: 174428-UP

1шт.

4

6610-71-1180

CLIP

SN: 174428-UP

1шт.

5

0

BUSHING

SN: 174428-UP

1шт.

6

6610-71-1160

PIN,DOWEL

SN: 174428-UP

1шт.

7

6610-71-1151

RING,DOWEL

SN: 174428-UP

2шт.

|8

6631-71-1040

PLUNGER ASS'Y,RED¤ CLASS 0

SN: 174428-UP

1шт.

|8

6631-79-1040

PLUNGER ASS'Y,BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|8

6631-78-1040

PLUNGER ASS'Y,GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|8

6631-77-1040

PLUNGER ASS'Y,YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|8

6631-76-1040

PLUNGER ASS'Y,BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|8

6631-75-1040

PLUNGER ASS'Y,BLACK¤ CLASS 5

SN: 174428-UP

1шт.

|8

6631-74-1040

PLUNGER ASS'Y,GREY¤ CLASS 6

SN: 174428-UP

1шт.

|8

6631-73-1040

PLUNGER ASS'Y,PURPLE¤ CLASS 7

SN: 174428-UP

1шт.

8

6631-71-1410

PLUNGER,RED¤ CLASS 0

SN: 174428-UP

1шт.

|8

6631-79-1410

PLUNGER,BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|8

6631-78-1410

PLUNGER,GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|8

6631-77-1410

PLUNGER,YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|8

6631-76-1410

PLUNGER,BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|8

6631-75-1410

PLUNGER,BLACK¤ CLASS 5

SN: 174428-UP

1шт.

|8

6631-74-1410

PLUNGER,GREY¤ CLASS 6

SN: 174428-UP

1шт.

|8

6631-73-1410

PLUNGER,PURPLE¤ CLASS 7

SN: 174428-UP

1шт.

9

6610-71-1452

SPACER

SN: 174428-UP

1шт.

10

6610-71-1420

WASHER,THRUST

SN: 174428-UP

1шт.

11

6610-71-1430

DRIVE,GOVERNOR PLUNGER

SN: 174428-UP

1шт.

12

6610-71-1440

PIN,GOVERNOR PLUNGER

SN: 174428-UP

1шт.

13

6610-71-1460

SHIM¤ 0.13MM,PLUNGER

SN: 174428-UP

-2шт.

|13

6610-71-1470

SHIM¤ 0.25MM,PLUNGER

SN: 174428-UP

-2шт.

|13

6610-71-1480

SHIM¤ 0.51MM,PLUNGER

SN: 174428-UP

-2шт.

|14

6610-71-1090

SHAFT ASS'Y,THROTTLE¤ RED¤ CLASS 0

SN: 174428-UP

1шт.

|14

6610-79-1090

SHAFT ASS'Y,THROTTLE¤ BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|14

6610-78-1090

SHAFT ASS'Y,THROTTLE¤ GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|14

6610-77-1090

SHAFT ASS'Y,THROTTLE¤ YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|14

6610-76-1090

SHAFT ASS'Y,THROTTLE¤ BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|14

6610-75-1090

SHAFT ASS'Y,THROTTLE¤ BLACK¤ CLASS 5

SN: 174428-UP

1шт.

14

6610-71-1340

SHAFT,RED¤ CLASS 0

SN: 174428-UP

1шт.

|14

6610-79-1340

SHAFT,BLUE¤ CLASS 1

SN: 174428-UP

1шт.

|14

6610-78-1340

SHAFT,GREEN¤ CLASS 2

SN: 174428-UP

1шт.

|14

6610-77-1340

SHAFT,YELLOW¤ CLASS 3

SN: 174428-UP

1шт.

|14

6610-76-1340

SHAFT,BROWN¤ CLASS 4

SN: 174428-UP

1шт.

|14

6610-75-1340

SHAFT,BLACK¤ CLASS 5

SN: 174428-UP

1шт.

15

6610-71-1320

O-RING (K6)

SN: 174428-UP

1шт.

16

6610-71-1360

PIN,SPRING

SN: 174428-UP

1шт.

17

6610-71-1370

WASHER

SN: 174428-UP

2шт.

22

6610-71-1730

COVER,THROTTLE SHAFT

SN: 174428-UP

1шт.

23

6600-01-3110

RING,SNAP

SN: 174428-UP

1шт.

24

6610-71-1760

SEAL,LEAD

SN: 174428-UP

1шт.

31

6610-81-8820

ELBOW,PRIMING PUMP

SN: 174428-UP

1шт.

32

6610-71-5170

SPRING,TORQUE CONTROL

SN: 174428-UP

1шт.

33

6610-71-1790

SCREW,SET

SN: 174428-UP

2шт.

34

02215-10406

NUT

SN: 174428-UP

2шт.

35

6610-71-3180

NUT,ADJUSTING SCREW

SN: 174428-UP

2шт.

36

6610-71-1760

SEAL,LEAD

SN: 174428-UP

1шт.

37

6610-71-1870

PLUG

SN: 174428-UP

1шт.

38

02891-02018

O-RING (K6)

SN: 174428-UP

1шт.

39

6610-71-1712

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 174428-UP

1шт.

40

04418-02550

SCREW

SN: 174428-UP

2шт.
