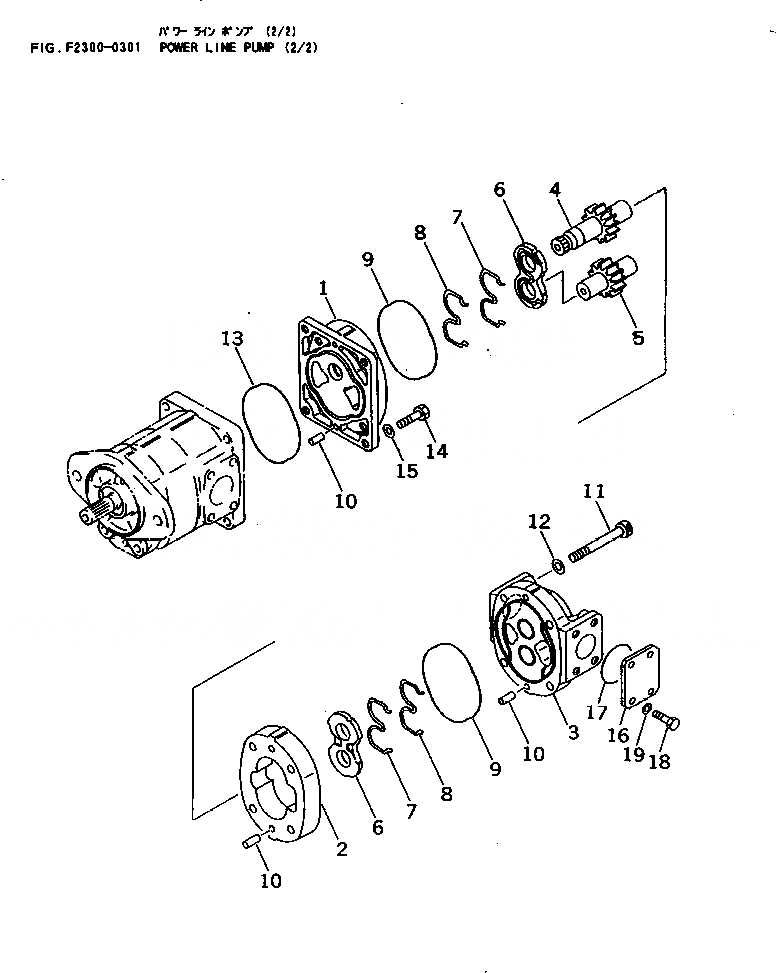

Запчасти Komatsu D65P-12 НАСОС СИЛОВОЙ ЛИНИИ (/) СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$13

14X-22-00135

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)(D60P)

SN: 62774-UP

1шт.

|$14

14X-22-00134

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)(D60P)

SN: 60884-62773

1шт.

|$15

14Y-22-00212

POWER LINE ASS'Y,(FOR HSS)

SN: 65715-UP

1шт.

|$16

14Y-22-00210

POWER LINE ASS'Y,(FOR HSS)

SN: 65001-65714

1шт.

|$17

14X-22-00113

POWER LINE UNIT,(FOR HSS)

SN: 60884-65000

1шт.

|$18

14X-22-00223

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 65753-UP

1шт.

|$19

14X-22-00222

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 65715-65752

1шт.

|$20

14X-22-00220

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 65001-65714

1шт.

|$21

14X-22-00123

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 60884-65000

1шт.

|$22

14X-22-00253

POWER LINE ASS'Y,(FOR TOWING WINCH)

SN: 65753-UP

1шт.

|$23

14X-22-00252

POWER LINE ASS'Y,(FOR TOWING WINCH)

SN: 65715-65752

1шт.

|$24

14X-22-00250

POWER LINE ASS'Y,(FOR TOWING WINCH)

SN: 65001-65714

1шт.

|$25

14X-22-00153

POWER LINE ASS'Y,(FOR TOWING WINCH)

SN: 60884-65000

1шт.

|$$14

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2300-51A0A TO F2300-77A0.

-1шт.

|$27

705-51-20370

PUMP ASS'Y,(SAL(2)45+45)

SN: 60884-UP

1шт.

|$$16

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS. F2300-68A0 AND F2300-69A0.

-1шт.

|$29

705-11-33530

PUMP ASS'Y,(SAL(2)45)

SN: 60884-UP

1шт.

1

0

BRACKET

SN: 60884-UP

1шт.

1

0

BUSHING

SN: 60884-UP

2шт.

2

0

CASE,GEAR

SN: 60884-UP

1шт.

3

0

COVER ASS'Y

SN: 60884-UP

1шт.

3

0

BUSHING

SN: 60884-UP

2шт.

4

0

GEAR,DRIVE

SN: 60884-UP

1шт.

5

0

GEAR,DRIVEN

SN: 60884-UP

1шт.

6

0

PLATE,SIDE

SN: 60884-UP

2шт.

7

0

RING,BACK-UP

SN: 60884-UP

2шт.

8

0

RING,SEAL

SN: 60884-UP

2шт.

9

0

O-RING

SN: 60884-UP

2шт.

10

0

PIN,DOWEL

SN: 60884-UP

6шт.

11

0

BOLT

SN: 60884-UP

4шт.

12

0

WASHER

SN: 60884-UP

4шт.

13

705-17-02480

O-RING

SN: 60884-UP

1шт.

14

705-17-02374

BOLT

SN: 60884-UP

4шт.

15

01643-51032

WASHER

SN: 60884-UP

4шт.

16

705-17-02881

PLATE

SN: 60884-UP

1шт.

17

07000-03038

O-RING

SN: 60884-UP

1шт.

18

01010-51025

BOLT

SN: 60884-UP

4шт.

19

01643-51032

WASHER

SN: 60884-UP

4шт.
