|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
|$7
14X-22-00223
POWER LINE ASS'Y
SN: 65753-UP
1шт.
|$8
14X-22-00222
POWER LINE ASS'Y
SN: 65715-65752
1шт.
|$9
14X-22-00220
POWER LINE ASS'Y
SN: 65001-65714
1шт.
|$10
14X-22-00253
POWER LINE ASS'Y,(FOR TOWING WINCH)
SN: 65753-UP
1шт.
|$11
14X-22-00252
POWER LINE ASS'Y,(FOR TOWING WINCH)
SN: 65715-65752
1шт.
|$12
14X-22-00250
POWER LINE ASS'Y,(FOR TOWING WINCH)
SN: 65001-65714
1шт.
|$$8

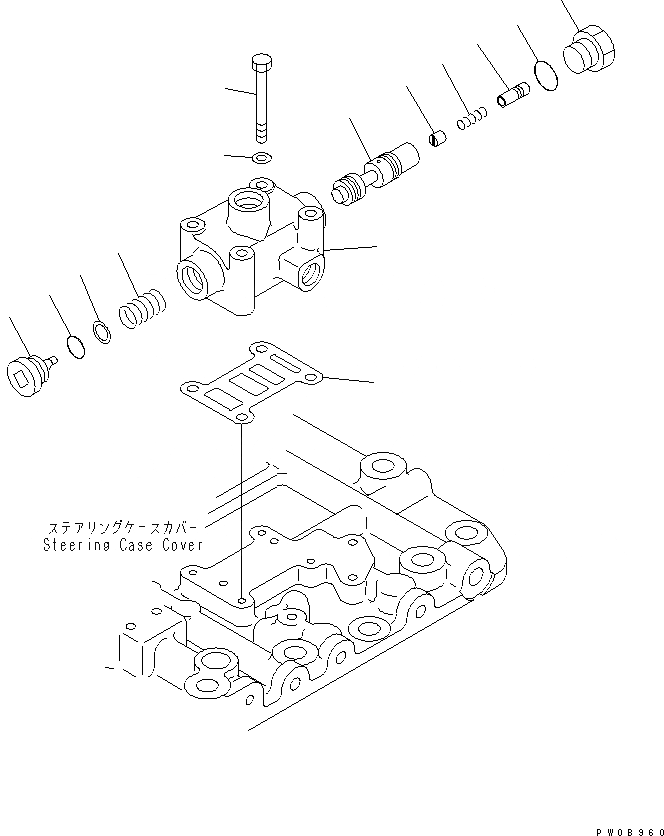

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2300-51A1A TO F2300-75A1.
-1шт.
|$18
14X-49-21100
VALVE ASS'Y
SN: 65001-(103589)
1шт.
1
14X-49-23110
VALVE BODY
SN: 65001-(103589)
1шт.
2
14X-49-13120
SPOOL
SN: 65001-(103589)
1шт.
3
14X-40-11390
SPRING
SN: 65001-(103589)
1шт.
4
14Z-40-11350
SHIM, 0.05MM
SN: 65001-(103589)
9шт.
5
22W-75-18880
VALVE
SN: 65001-(103589)
1шт.
6
22W-75-18890
VALVE
SN: 65001-(103589)
1шт.
7
125-15-15290
SPRING
SN: 65001-(103589)
1шт.
8
14X-40-11251
PLUG
SN: 65001-(103589)
1шт.
9
07002-32434
O-RING
SN: 65001-(103589)
1шт.
10
07040-12412
PLUG
SN: 65001-(103589)
1шт.
11
07002-32434
O-RING
SN: 65001-(103589)
1шт.
12
14X-49-13130
GASKET
SN: 65001-(103589)
1шт.
13
01010-80870
BOLT
SN: 65001-(103589)
4шт.
14
01643-30823
WASHER
SN: 65001-(103589)
4шт.
