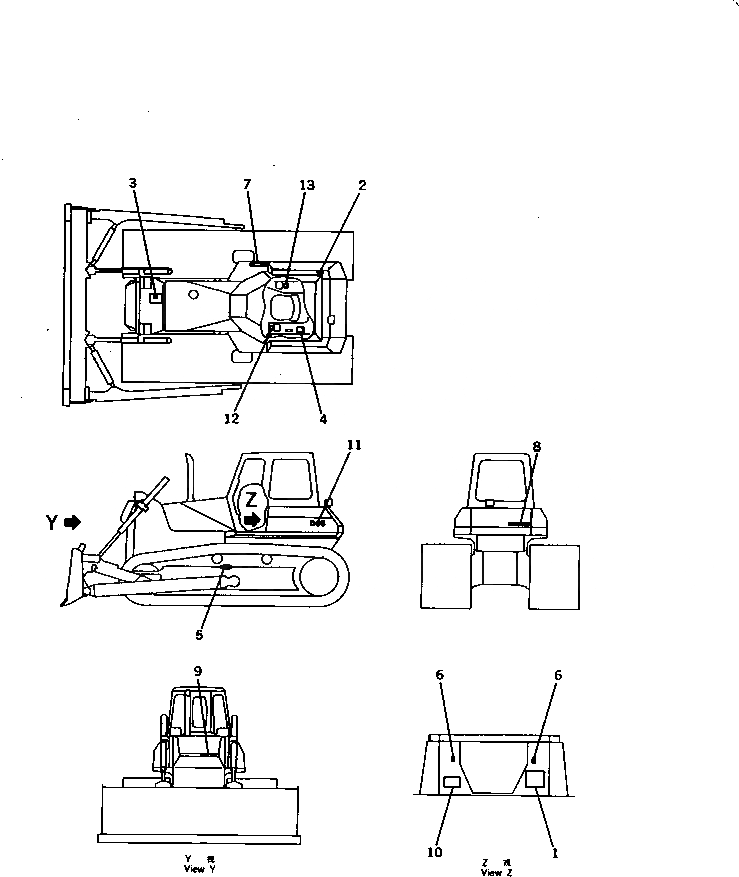

Запчасти Komatsu D65P-12 МАРКИРОВКА (ИСПАНИЯ) (DP)(№88-77) МАРКИРОВКА

1

14X-98-11812

OIL CHART

SN: 60933-UP

1шт.

1

14X-98-11811

OIL CHART

SN: 60884-60932

1шт.

2

14X-98-11820

PLATE, SAFETY,OPERATING OIL TANK

SN: 60884-UP

1шт.

3

14X-98-11830

PLATE, SAFETY,RADIATOR

SN: 60884-UP

1шт.

4

14X-98-11840

PLATE, CAUTION,BEFORE AND AFTER OPERATION

SN: 60884-UP

1шт.

5

14X-98-11850

PLATE, SAFETY,ADJUSTING TRACK SHOE

SN: 60884-UP

2шт.

6

14X-98-11170

PLATE, OPERATING,LOCK

SN: 60884-UP

2шт.

7

14X-98-11870

PLATE,PRESSURE TEST (C AND B)

SN: 60884-UP

1шт.

8

09690-C0630

PLATE, MARK,KOMATSU, REAR

SN: 61365-UP

1шт.

8

09690-C0400

PLATE, MARK,KOMATSU, REAR

SN: 60884-61364

1шт.

9

09690-B0280

PLATE, MARK,KOMATSU, FRONT

SN: 60884-UP

1шт.

10

09602-11635

PLATE, NAME,(LIMITED SUPPLY)

SN: 60884-UP

1шт.

10

04418-13060

SCREW

SN: 60884-UP

4шт.

11

14X-98-11330

PLATE, MARK,D65P

SN: 60884-UP

2шт.

12

14X-98-11240

PLATE, OPERATING,STEERING LEVER

SN: 60884-UP

1шт.

13

14X-98-11250

PLATE, OPERATING,WORK EQUIP.LEVER (TILT DOZER)

SN: 60884-UP

1шт.

13

14X-98-11260

PLATE, OPERATING,WORK EQUIP.LEVER (ANGLE DOZER)

SN: 60884-UP

1шт.

13

14X-98-11270

PLATE, OPERATING,WORK EQUIP.LEVER (PITCH DOZER)

SN: 60884-UP

1шт.
