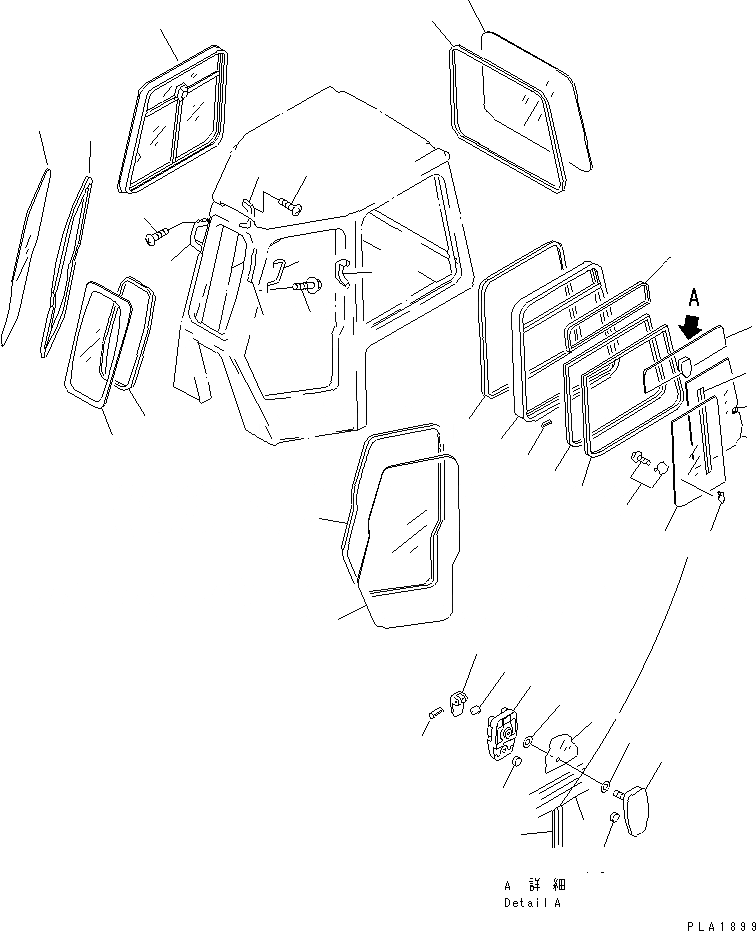

Запчасти Komatsu D65P-12 КАБИНА (РАМА И РУЧКА)(№88-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$12

14X-911-0810

CAB ASS'Y,(AM RADIO)

SN: 60884-65000

1шт.

|$13

14X-911-0820

CAB ASS'Y,(AM/FM CASSETTE STEREO)

SN: 60884-65000

1шт.

|$14

14X-911-0830

CAB ASS'Y,(AM RADIO, F.R. WORK LAMP)

SN: 60884-65000

1шт.

|$15

14X-911-0840

CAB ASS'Y,(AM/FM CST.ST., F.R.WORK LAMP)

SN: 60884-65000

1шт.

|$16

14X-911-0850

CAB ASS'Y,(AM RADIO, FRONT WORK LAMP)

SN: 60884-65000

1шт.

|$17

14X-911-0860

CAB ASS'Y,(AM/FM CT.ST, FRONT WORK LAMP)

SN: 60884-65000

1шт.

|$18

14X-911-0870

CAB ASS'Y,(AM RADIO, REAR WORK LAMP)

SN: 60884-65000

1шт.

|$19

14X-911-0880

CAB ASS'Y,(AM/FM CT.ST, REAR WORK LAMP)

SN: 60884-65000

1шт.

|$20

14X-911-0890

CAB ASS'Y,(RADIO LESS)

SN: 60884-65000

1шт.

|$21

14X-911-0900

CAB ASS'Y,(RADIO LESS, F.R. WORK LAMP)

SN: 60884-65000

1шт.

|$22

14X-911-0910

CAB ASS'Y,(RADIO LESS, FRONT WORK LAMP)

SN: 60884-65000

1шт.

|$23

14X-911-0920

CAB ASS'Y,(RADIO LESS, REAR WORK LAMP)

SN: 60884-65000

1шт.

|$$13

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

1

14X-911-2211

GLASS

SN: 60884-65000

1шт.

2

14X-911-2291

SPACER

SN: 60884-65000

1шт.

3

14X-911-2241

GLASS

SN: 60884-65000

1шт.

4

14X-911-2311

STRIP,WEATHER

SN: 60884-65000

1шт.

5

14X-911-2221

GLASS

SN: 60884-65000

2шт.

6

14X-911-2321

STRIP,WEATHER

SN: 60884-65000

2шт.

|$31

14X-911-2611

SASH ASS'Y

SN: 62551-65000

2шт.

|$32

0

SASH ASS'Y

SN: 60884-62550

2шт.

7

14X-911-2132

FRAME

SN: 60884-65000

1шт.

8

14X-911-2181

GLASS

SN: 60884-65000

1шт.

9

14X-911-2140

SEAL

SN: 60884-65000

1шт.

10

14X-911-2151

GLASS

SN: 60884-65000

2шт.

11

14X-911-2121

SEAL

SN: 60884-65000

1шт.

12

14X-911-2161

SEAL

SN: 60884-65000

1шт.

13

14X-911-2170

SEAL

SN: 60884-65000

1шт.

|$40

14X-911-0090

BRACKET ASS'Y

SN: 60884-65000

1шт.

14

14X-911-2620

BRACKET,OUTER

SN: 60884-65000

1шт.

15

14X-911-2630

BRACKET,INNER

SN: 60884-65000

1шт.

16

14X-911-2660

LEVER

SN: 60884-65000

1шт.

17

14X-911-2670

BLOCK

SN: 60884-65000

1шт.

18

14X-911-2640

CUSHION

SN: 60884-65000

2шт.

19

14X-911-2650

SEAL

SN: 60884-65000

2шт.

20

04025-00512

PIN

SN: 60884-65000

2шт.

21

20Y-54-13322

LOCK ASS'Y

SN: 60884-65000

1шт.

22

20Y-54-14352

LOCK ASS'Y

SN: 60884-65000

1шт.

23

20Y-54-13180

SEAT

SN: 60884-65000

20шт.

24

14X-911-2350

TRIM

SN: 60884-65000

2шт.

25

361-54-21150

HANDLE

SN: 60884-65000

2шт.

26

01220-40820

SCREW

SN: 60884-65000

4шт.

27

14X-911-5521

GRIP

SN: 60884-65000

2шт.

28

01435-30816

BOLT

SN: 60884-65000

4шт.

29

361-54-21150

HANDLE

SN: 60884-65000

2шт.

30

01220-40820

SCREW

SN: 60884-65000

4шт.
