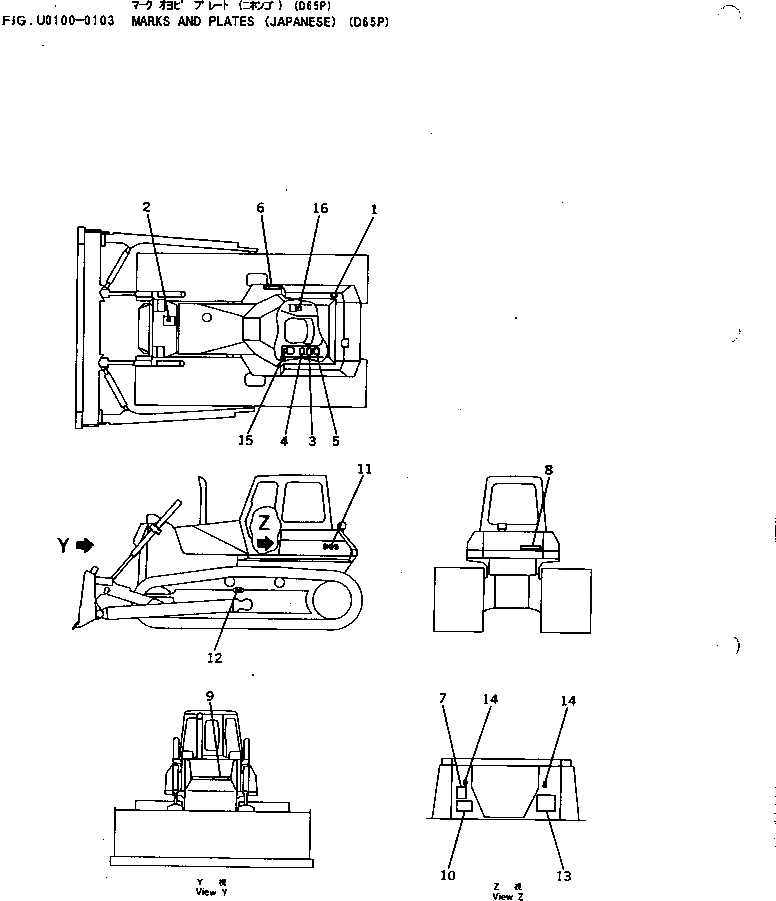

Запчасти Komatsu D65P-12 МАРКИРОВКА (ЯПОН.) (DP) МАРКИРОВКА

|1

14X-98-11111

PLATE

SN: 60001-UP

1шт.

1

0

PLATE¤ SAFETY,OPERATING OIL TANK

SN: 60001-UP

1шт.

2

0

PLATE¤ SAFETY,RADIATOR

SN: 60001-UP

1шт.

3

0

PLATE¤ CAUTION,BEFORE AND AFTER OPERATION

SN: 60001-UP

1шт.

4

0

PLATE¤ SAFETY,BEFORE OPERATING

SN: 60001-UP

1шт.

5

0

PLATE¤ CAUTION,SAFETY COMFIRM OF REAR

SN: 60001-UP

1шт.

6

14X-98-11190

PLATE,PRESSURE TEST (C AND B)

SN: 60001-UP

1шт.

7

14X-98-11430

PLATE,SAFETY

SN: 60001-UP

1шт.

8

09690-C0400

PLATE¤ MARK,KOMATSU¤ REAR

SN: 60001-UP

1шт.

9

09690-B0280

PLATE¤ MARK,KOMATSU¤ FRONT

SN: 60001-UP

1шт.

10

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 60001-UP

1шт.

|10

04418-13060

SCREW

SN: 60001-UP

4шт.

11

14X-98-11330

PLATE¤ MARK,D65P

SN: 60001-UP

2шт.

12

14X-98-11161

PLATE¤ SAFETY,ADJUSTING TRACK SHOE

SN: 60001-UP

2шт.

13

14X-98-11121

CHART¤ OIL

SN: 60733-UP

1шт.

|13

14X-98-11120

PLATE

SN: 60001-60732

1шт.

14

14X-98-11170

PLATE¤ OPERATING,LOCK

SN: 60001-UP

2шт.

15

14X-98-11240

PLATE¤ OPERATING,STEERING LEVER (C AND B)

SN: 60001-UP

1шт.

16

14X-98-11250

PLATE¤ OPERATING,WORK EQUIP.LEVER (TILT DOZER)

SN: 60001-UP

1шт.

|16

14X-98-11260

PLATE¤ OPERATING,WORK EQUIP.LEVER (ANGLE DOZER)

SN: 60001-UP

1шт.

|16

14X-98-11270

PLATE¤ OPERATING,WORK EQUIP.LEVER (PITCH DOZER)

SN: 60001-UP

1шт.
