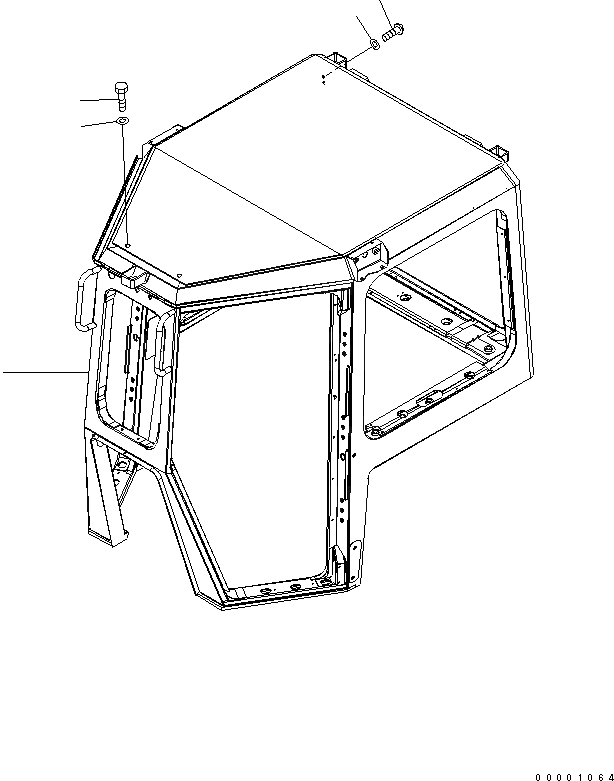

Запчасти Komatsu D65EX-15E0 КОРПУС КАБИНЫ(№797-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$27

17A-Z11-0046

CAB ASS'Y

SN: 71753-UP

1шт.

|$28

17A-Z11-0045

CAB ASS'Y

SN: 71672-71752

1шт.

|$29

17A-Z11-0044

CAB ASS'Y

SN: 70927-71671

1шт.

|$30

17A-Z11-0065

CAB ASS'Y,(RADIO LESS)

SN: 71753-UP

1шт.

|$31

17A-Z11-0064

CAB ASS'Y,(RADIO LESS)

SN: 70927-71752

1шт.

|$32

17A-Z11-0075

CAB ASS'Y,(RADIO LESS)(EU SILENT SPEC.)

SN: 71753-UP

1шт.

|$33

17A-Z11-0074

CAB ASS'Y,(RADIO LESS)(EU SILENT SPEC.)

SN: 70927-71752

1шт.

|$34

17A-Z11-0106

CAB ASS'Y,(AM/FM RADIO)

SN: 71753-UP

1шт.

|$35

17A-Z11-0105

CAB ASS'Y,(AM/FM RADIO)

SN: 71672-71752

1шт.

|$36

17A-Z11-0104

CAB ASS'Y,(AM/FM RADIO)

SN: 70927-71671

1шт.

|$37

17A-Z11-0116

CAB ASS'Y,(FOR USA)

SN: 71753-UP

1шт.

|$38

17A-Z11-0115

CAB ASS'Y,(FOR USA)

SN: 71672-71752

1шт.

|$39

17A-Z11-0114

CAB ASS'Y,(FOR USA)

SN: 70927-71671

1шт.

|$40

17A-Z11-0126

CAB ASS'Y,(EU SILENT SPEC.)

SN: 71753-UP

1шт.

|$41

17A-Z11-0125

CAB ASS'Y,(EU SILENT SPEC.)

SN: 71672-71752

1шт.

|$42

17A-Z11-0124

CAB ASS'Y,(EU SILENT SPEC.)

SN: 70927-71671

1шт.

|$43

17A-Z11-0234

CAB ASS'Y,(FOR EUROPE OR ASIA)

SN: 71753-UP

1шт.

|$44

17A-Z11-0233

CAB ASS'Y,(FOR EUROPE OR ASIA)

SN: 71672-71752

1шт.

|$45

17A-Z11-0232

CAB ASS'Y,(FOR EUROPE OR ASIA)

SN: 70927-71671

1шт.

|$$20

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0A TO K0210-17A0A .

-1шт.

1

0

CAB

SN: 69001-UP

1шт.

2

01010-D1220

BOLT

SN: 69001-UP

6шт.

3

01643-71232

WASHER

SN: 69001-UP

6шт.

4

01245-01020

SCREW

SN: 69001-UP

2шт.

5

01643-71032

WASHER

SN: 69001-UP

2шт.
